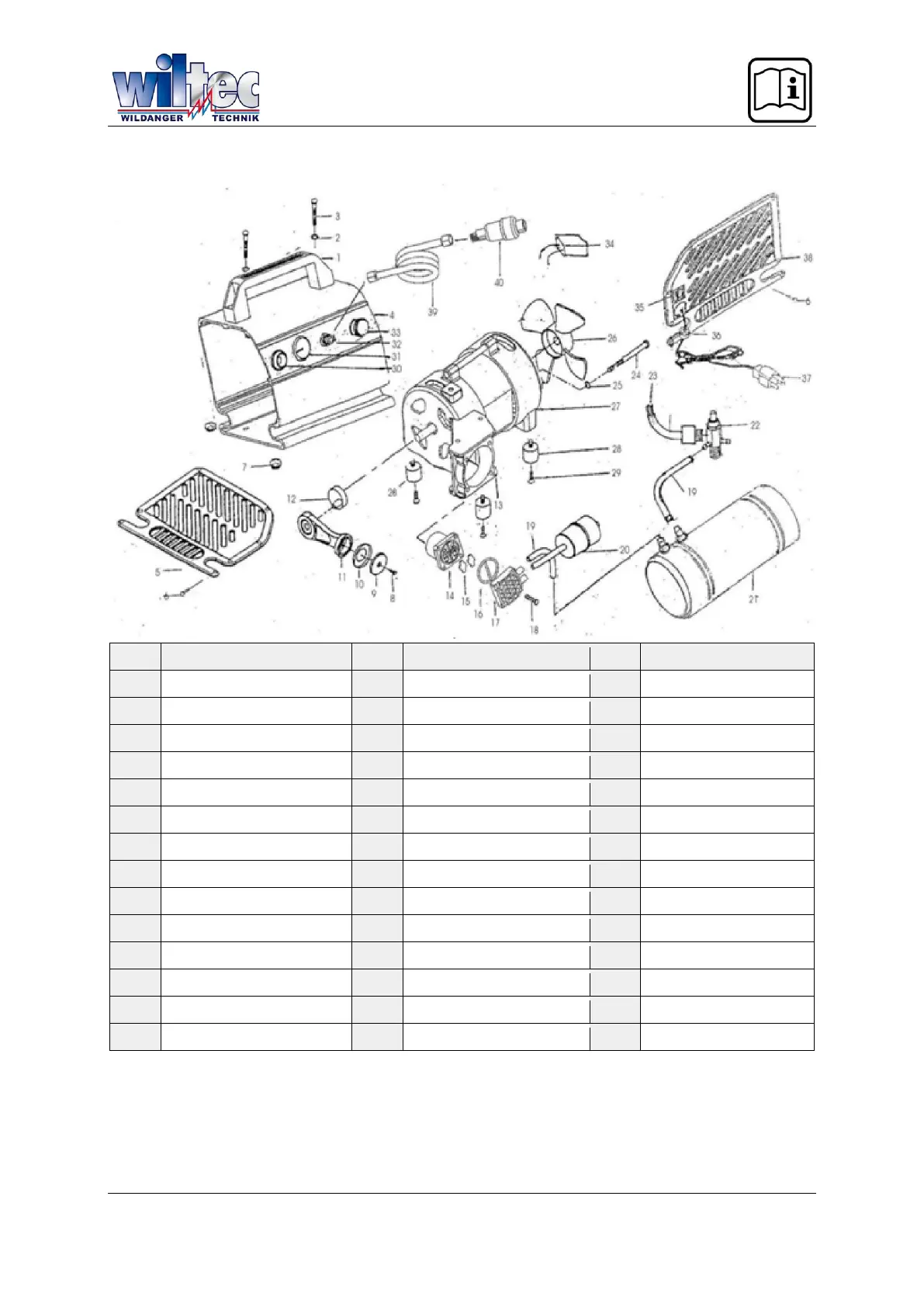

Exploded view and parts list
№
Name
№
Name
№
Name
1
Handle
15
Intake/outlet valve (2×)
29
Blocking screw (4×)
2
Washers (2×)
16
O-ring
30
Gunholder
3
Blocking screw (2×)
17
Cylinder head
31
Pressure gauge
4
Casing
18
Blocking screw (4×)
32
Air outlet
5
Rear cover
19
Air outlet hose (2×)
33
Pressure controller
6
Blocking screw (14×)
20
Air intake filter
34
Capacitor
7
Rubber pad (4×)
21
Air tank
35
Main switch
8
Blocking screw
22
Adjusting valve
36
Cable protection
9
Safety plate
23
Pressure switch
37
Plug
10
Compression ring
24
Blocking screw (2×)
38
Front cover
11
Rod
25
Washers (2×)
39
Air hose
12
Counterweight
26
Ventilation
40
Minifilter
13
Motor support
27
Motor
14
Cylinder block
28
Rubber support (4×)
