BEFORE YOU START
7

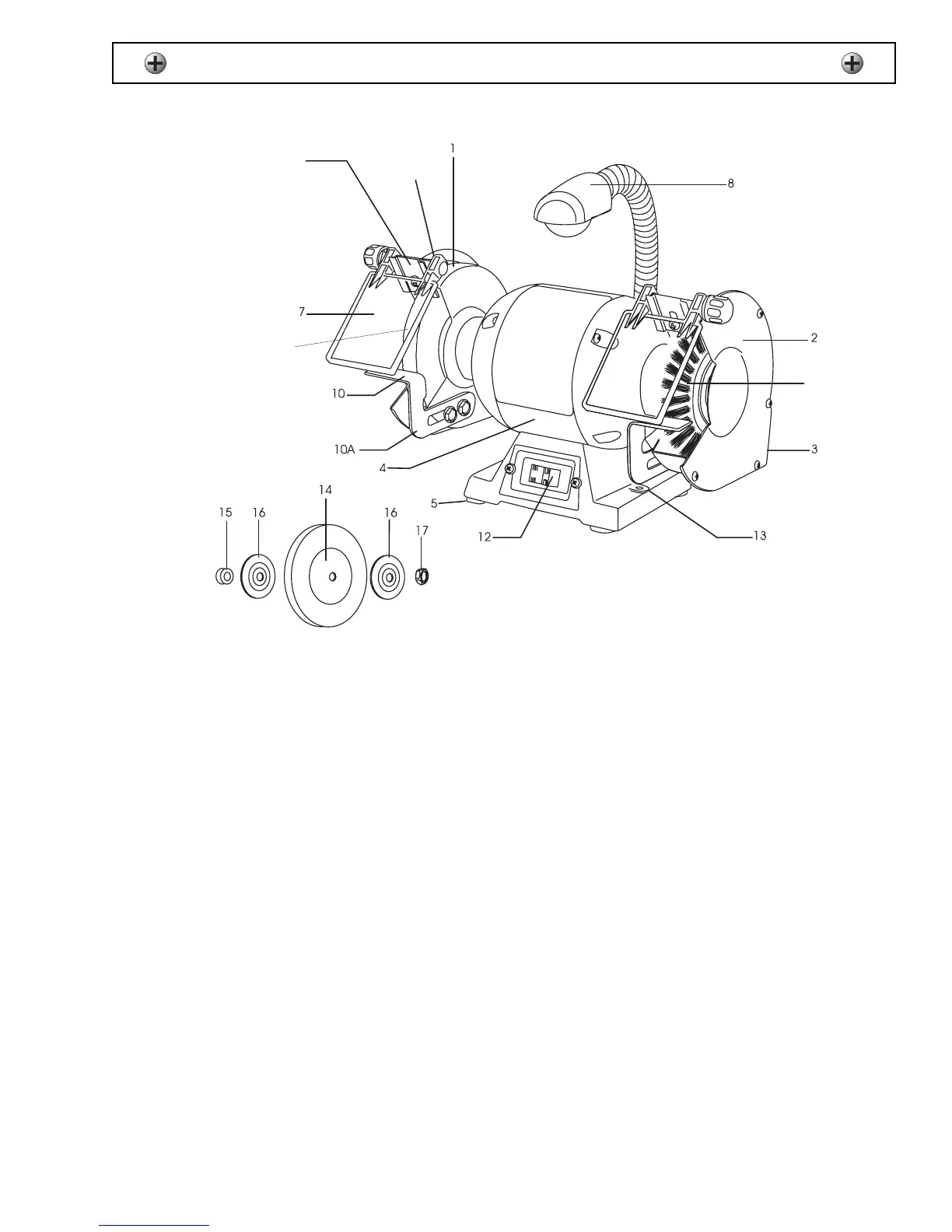

GLOSSARY OF TERMS
WHEEL GUARD (1) --- houses the wheel, exposing
only the work surface.
WHEEL END COVER (2) --- shields the side of the
grinding wheel.
REAR-MOUNTED EXHAUST CHUTES (3) --- directs
the debris away from the operator.
MOTOR HOUSING (4) --- encases and helps protect
the motor.
BASE PADS (5) --- help dampen vibration.
EYE SHIELD BRACKETS (6) --- holds the eye shield
in position.
EYE SHIELDS (7) --- heavy-duty shatter-resistant
plastic, prevent debris from reaching the operator.
LAMP (8) --- completely adjustable to either side of
the grinder to illuminate the workpiece.
SPARK ARRESTORS (9) --- help keep sparks away
from the operator.
TOOL REST (10) --- supports workpiece during
operation.
TOOL REST ARM (10A) --- adjustable to move
workpiece closer or away from the grinding wheel.
6 x 3/4 INCH GRINDING WHEEL (11A) --- for
grinding or sharpening
6" WIRE WHEEL (11B) --- for removing rust, scale,
etc.
ON / OFF SWITCH (12) --- extra large for easy
operation.
MOUNTING HOLES (13) --- for securing the grinder
to a stand or work surface.
BLOTTER (14) --- circular paper label that lists wheel
information (size, rpm, grit). Acts as a cushion for the
wheel, to distribute pressure evenly.
ARBOR SLEEVE (15) --- mounts onto the arbor to
stabilize and cushion the wheel flange and wheel.
WHEEL FLANGES (16) --- large washers combine
with the locking nuts to stabilize the wheel.
LOCKING NUT (17) --- threads onto the arbor to hold
the flanges and grinding wheel in place.
