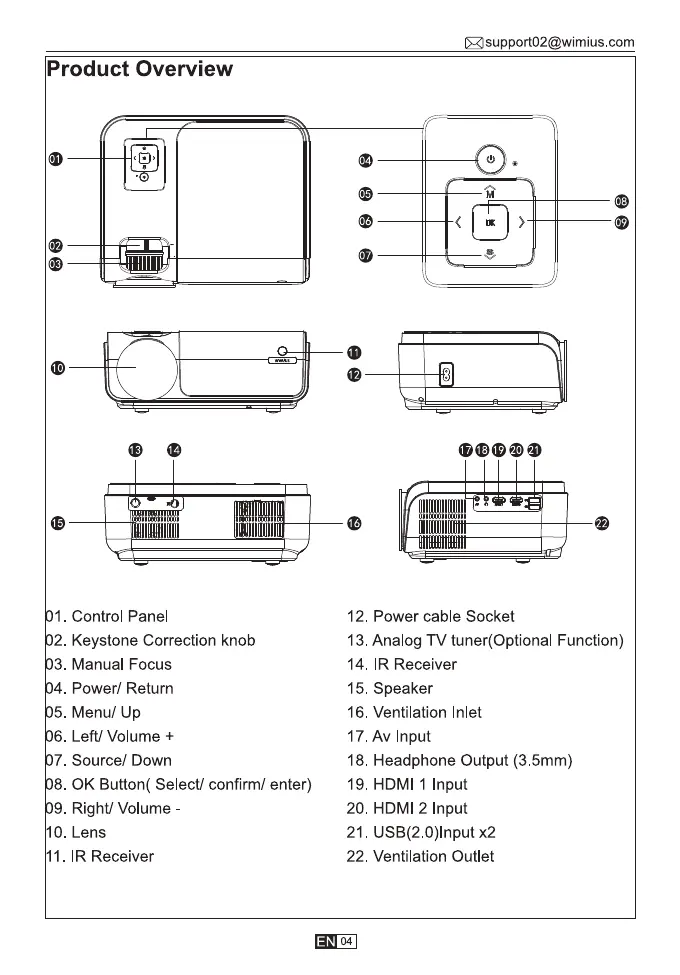

Product Overview
Control Panel
2. Keystone Correction knob
3. Manual Focus
4. Power/ Return
5. Menu/ Up
6. Left/ Volume +
7. Source/ Down
8. 0K Button( Select/ confirm/ enter)
9. Right/ Volume
10. Lens
11. IR Receiver
Asupport02@wimius.com
00000
Power cable Socket12
13
15
16
17
18
19
20
21
22
04
Analog TV tuner(Optional Function)
14. IR Receiver
Speaker
Ventilation Inlet
Av Input
Headphone Output (3 5mm)
HDMI 1 Input
HDMI 2 Input
Ventilation Outlet
