PAGE 8
winchestersafes.com Owner’s Manual
HANDLE INSTALLATION
Step 1 - Grasp the handle hub with your hand and turn it clockwise to release the lock-
ing bolts and open the safe door.

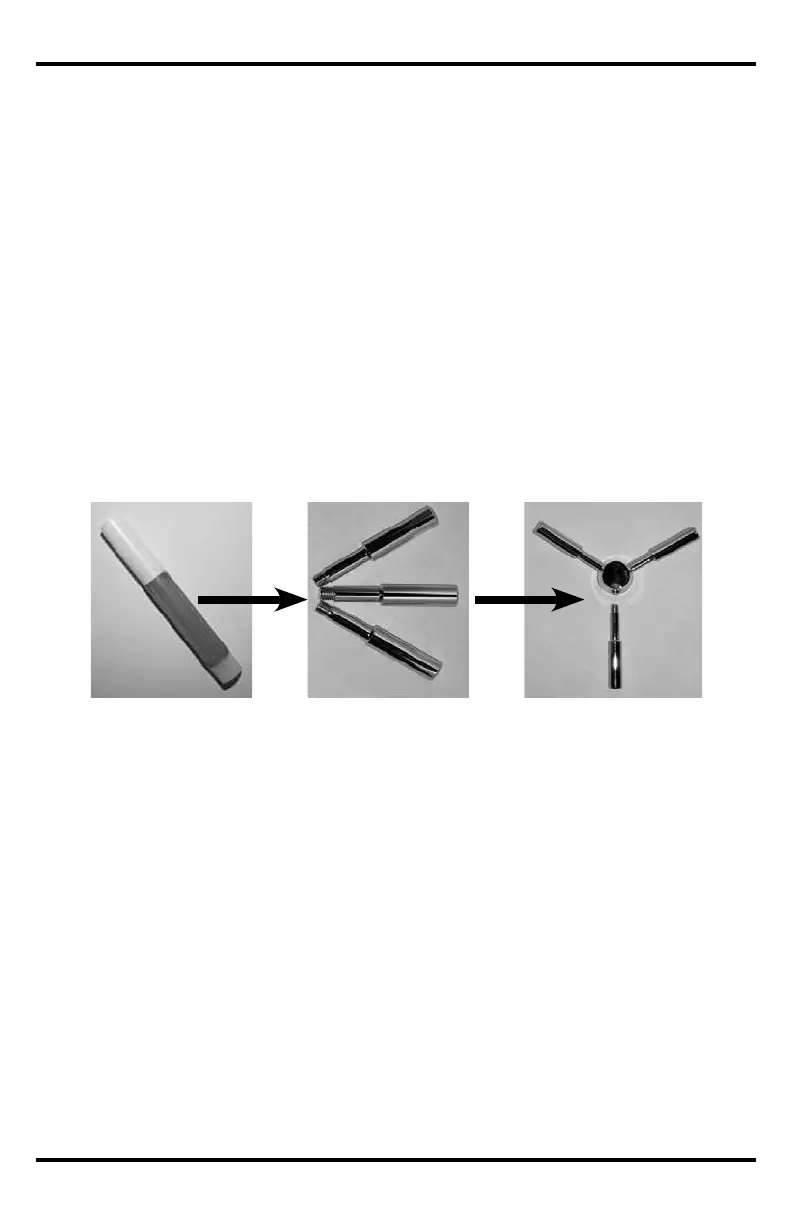

Step 2 - Remove the box of spokes from inside the safe. Unpack each spoke and
OPTIONAL STEP: Apply one drop of spoke handle thread lock on the threads before
screwing in the handles.
Step 3 -Screw handles into the spoke hub.
OPTIONAL
Images are for instruction only and may not look identical to the handle on your
particular safe.
FOR SINGLE LEVER HANDLES: Your handle is installed from the factory and requires
no action on your part for assembly.
