PARTS ASSEMBLY
Remove all contents of the fan from the packaging. Carefully check the box
thoroughly (even under the styrofoam at the bottom of the box). Once all
pieces have been found, please follow these steps.

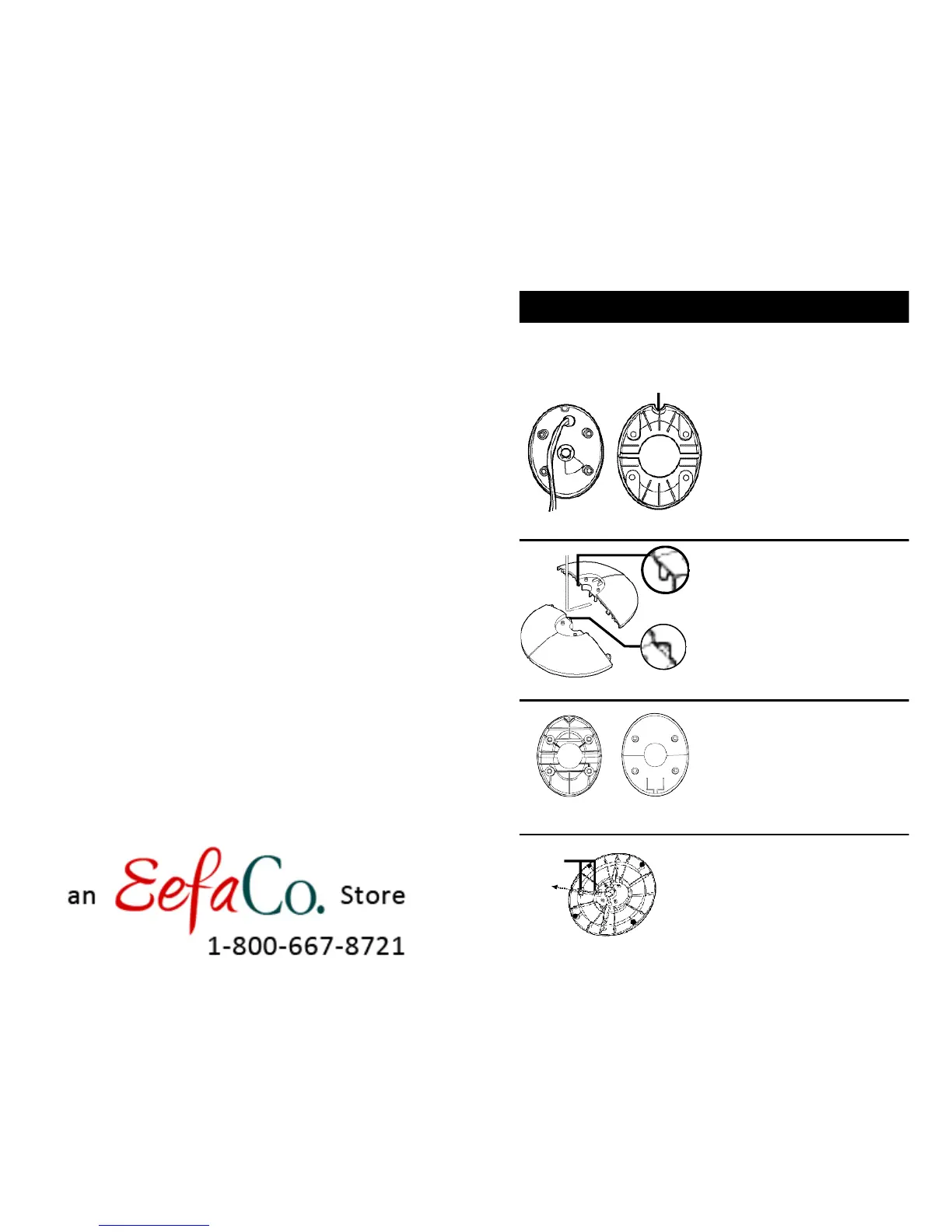

1. Pedestal to Fan head bottom
Put the two pedestal pieces together
as shown in the parts diagram on
page 4. The edge with the notch on
the top of the pedestal assembly
should face the back of the Fan body
bottom. Secure the pedestal to the
Fan body bottom using the 4 small
screws.
2. Two part base
Attach the two pieces of the base
together by matching and inserting the
pegs on the back base piece into the
tube pegs on the front base piece.
Push together until a click is heard
which means that the two parts are
together securely.
3. Base to Pedestal
Turn the fan body and pedestal
assembly upside down. Turn the
assembled base upside down and line
up the four holes on the base top to
the 4 holes on the Pedestal bottom.
Use the 4 butterfly screws to secure
the base to the pedestal.
4. Securing the power cord
Thread the power cord through the power
cord holders on the bottom of the base. The
fan is now completely assembled for use.
Fan body bottom
Pedestal top
Pedestal notch
Peg
Tube peg
Base top
Pedestal bottom
Power cord
holders
a) Place the unit on a dry, level surface.
b) Plug the power cord into a standard
120VAC wall outlet.
