MAINTENANCE AND SERVICE 17
The hydraulic circuit provides power for skip tipping and return and
scissor raising and lowering.
The system comprises of the following main components:-
TANK; the tank is filled through a filler/strainer, the cap for which
incorporates a breather. In the base of the tank accessed via the end
plate is a washable suction strainer.

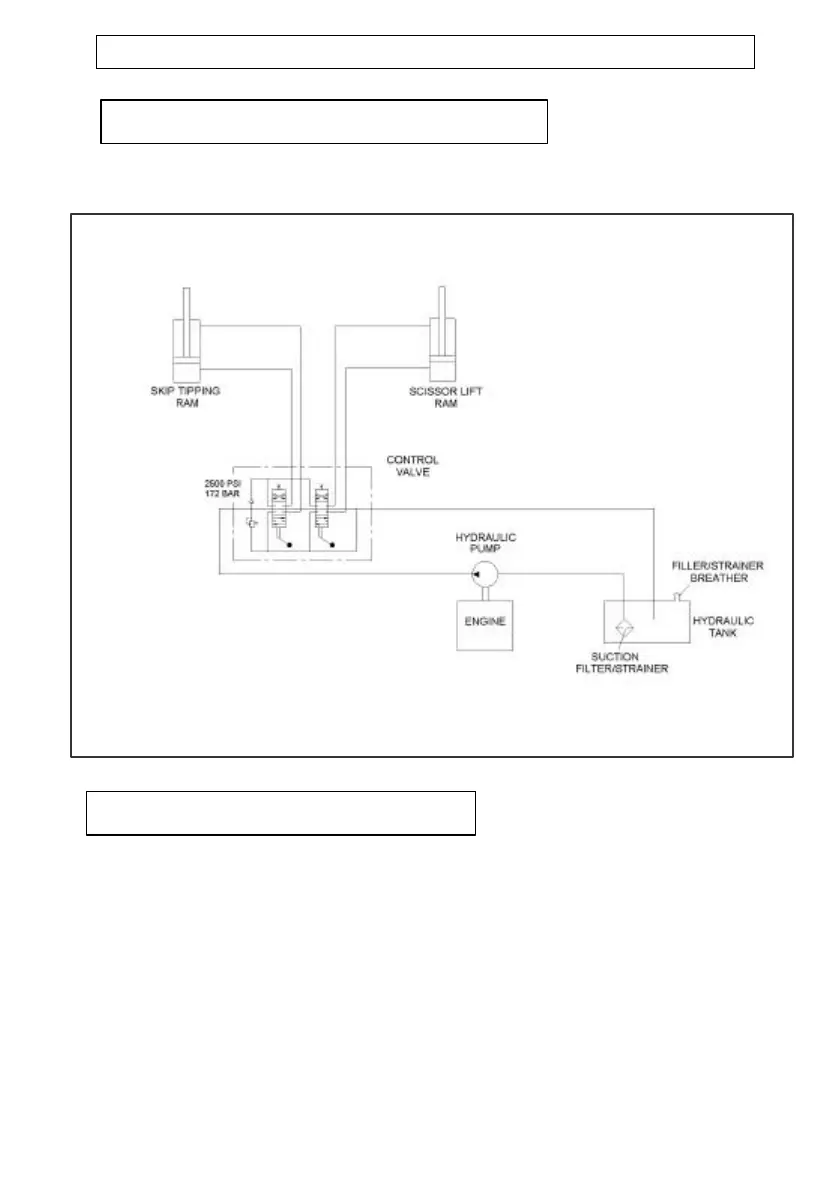

HYDRAULIC CIRCUIT DIAGRAM HL MODEL
HYDRAULIC CIRCUIT DESCRIPTION
