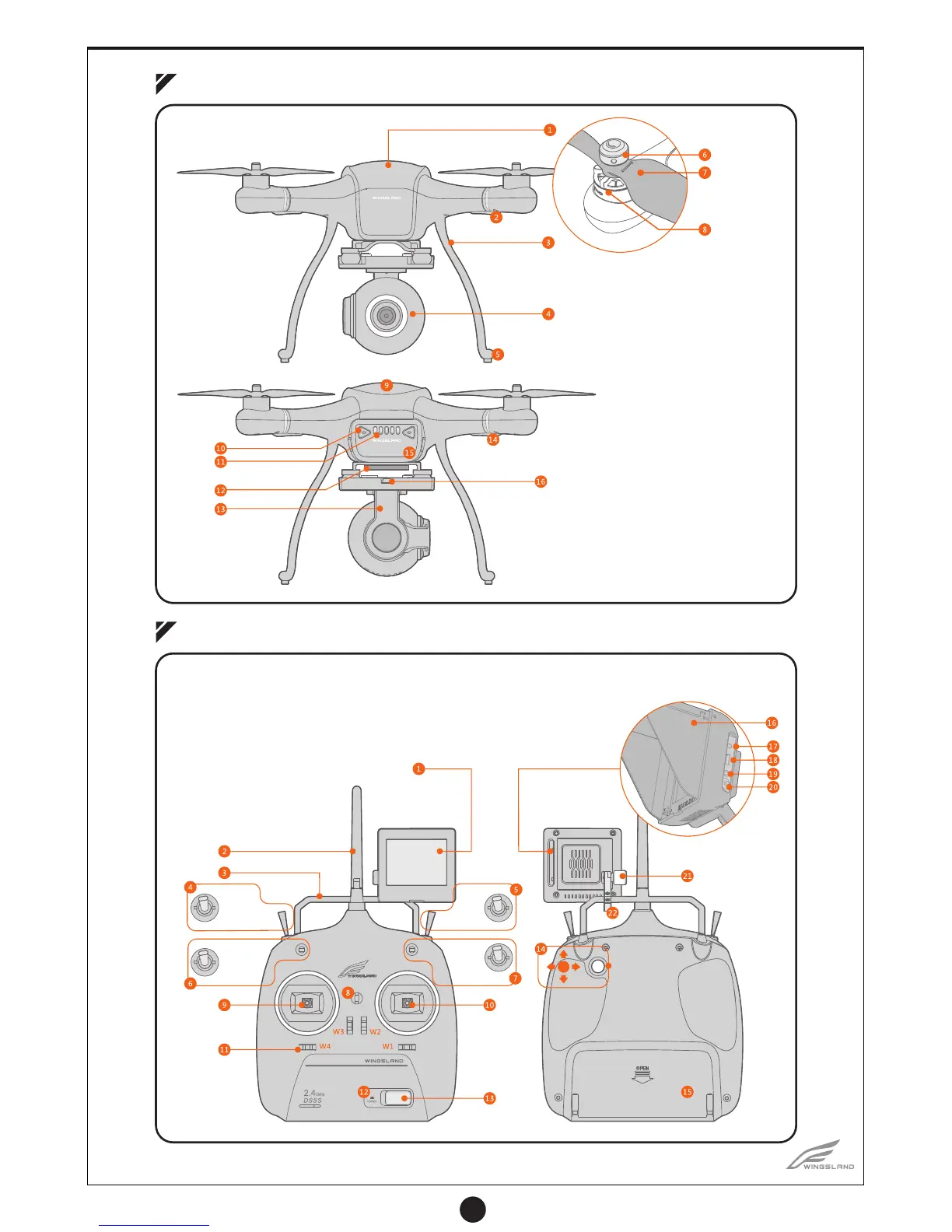

Wingsland Minivet - Components of Aircraft; Components of Remote Controller

1. Aircraft
2. Orange LED Indicator
3. Landing Gear
4. Integrated Camera
5. Vibration Absorber Sponge
6. Propeller Lock Screw
7. Propeller
8. Motor
9. GPS Status Indicator
10. Power Button
11. Battery Level Indicator
12. Image Transmitter
13. 3-Axis Gimbal
14. Green LED Indicator
15. Intelligent Flight Battery
16. Gimbal Assistant port
1. Display Screen
2. Antenna
3. Handle
4. Switch L2
5. Switch R2
6. Switch L1
7. Switch R1
8. Neck Strap Attachment
9. Left Stick
10. Right Stick
11. Trimming Button W1-W4
12. Power Indicator
13. Power Switch
14. Gimbal Joystick Control
15. Battery Compartment Cover
16. Sunscreen Shading
17. Display Screen Indicator
1-2 Components of Aircraft
1-3 Components of Remote Controller
6
18. Charging port
19. Video Output
20. Display Screen Power Button
21. Screen Lock-Screw
22. Screen Bracket
L2-0
L2-1
L1-0
L1-1
Middle Position
R2-0
R2-1
R1-0
R1-1
