HEATING & AIR CONDITIONING GROUP (CONTINUED)

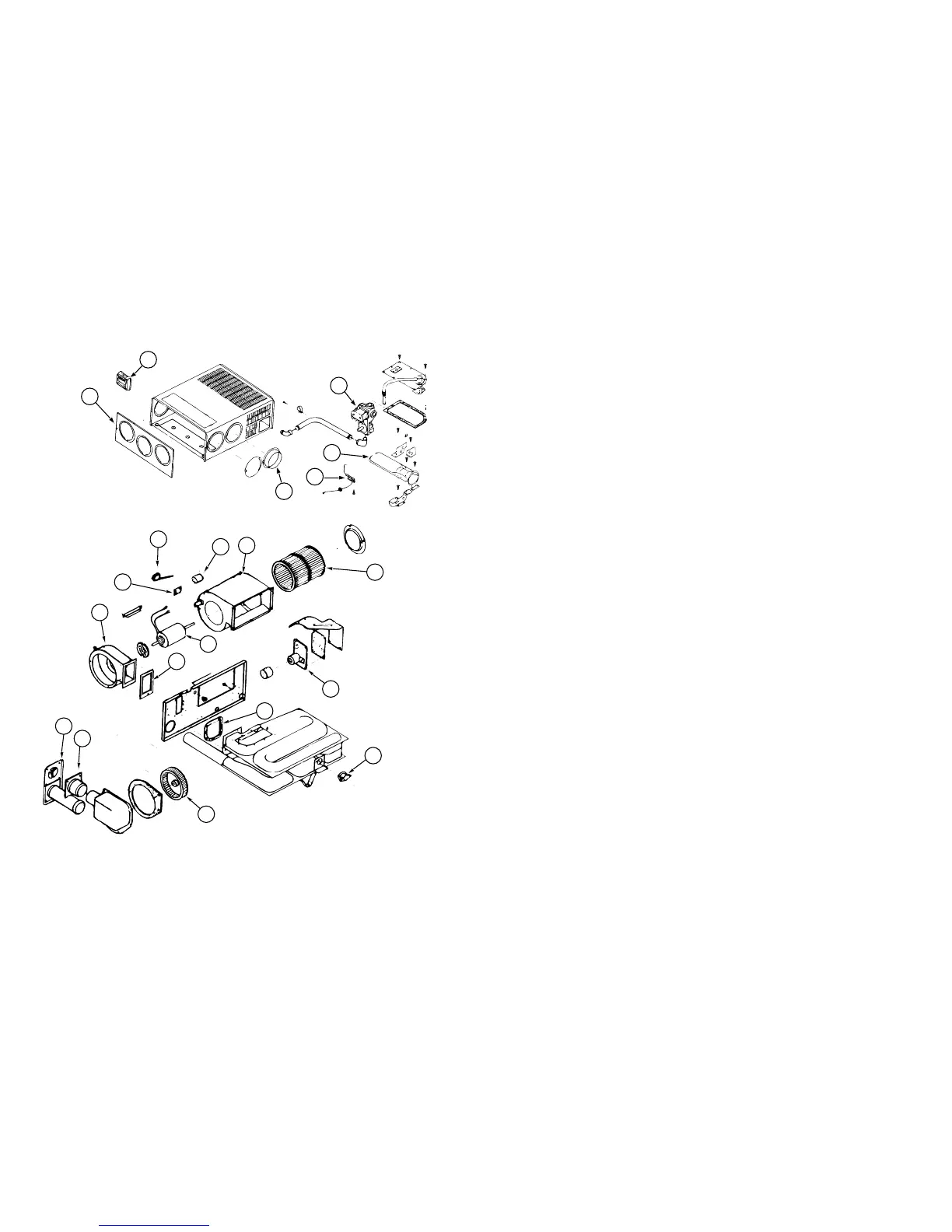

FURNACE (SUBURBAN SF-35 2274)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
098668-14-000 EA GASKET-FIBERGLASS, .5" X 18" X 18" - 070976
098668-21-000 EA FURNACE - 35,000 BTU - SF-35 2274
069634-01-720 EA ORFICE-MAIN BURNER 0180222
1 074466-01-702 EA RELAY,TIME DELAY 205 & L & 45000 230625
2 075696-02-703 EA DUCT COLLAR 050715
3 115764-01-01A EA THERMOSTAT-WALL, FURNACE - 0160902
4 098668-01-700 EA CABINET FRONT 101242
5 098668-01-706 EA WHEEL-AIR 350128
6 098668-01-707 EA VENT CAP & EXHAUST TUBE ASM 260193
7 098668-01-708 EA BLOWER ASM.(COMBUSTION AIR) 390441
8 098668-01-710 EA BLOWER ASM (ROOM AIR) 390440
9 098668-01-711 EA WHEEL-ROOM AIR 350129
10 098668-01-712 EA BOARD-MODULE 520741
11 098668-01-713 EA INTAKE VENT TUBE ASM 051044
12 098668-01-714 EA GAS VALVE (WHITE ROGERS) 161070
13 098668-01-715 EA ELECTRODE ASM.(SGL PROBE) 232166
14 098668-01-716 EA GASKET FIREWALL(CHAMBER SIDE) 070808
15 098668-01-717 EA GASKET FIREWALL(BLOWER SIDE) 070809
16 098668-02-700 EA BURNER ASM 010745
17 098668-03-700 EA MOTOR ASM 231707
18 098668-21-700 EA SWITCH-SAIL, SF-42F 232261
19 098668-21-701 EA LIMIT SWITCH 231799
20 101990-01-714 EA MICROSWITCH GASKET 230877
024990-05-000 EA OUTLET-DEFROSTER, W/SWIVEL - 2" DIAMETER - BLACK
009198-01-000 FT DUCT-HEAT- FLEXIBLE - 4" ID X 25 FT
009198-02-000 FT DUCT-HEAT- FLEXIBLE - 2" ID X 25 FT
094600-05-01A EA REGISTER-HEAT, W/DAMPER
093614-04-02A EA GRILLE-RETURN AIR- FURNACE - 15.6" X 7.6" - BEIGE
009200-01-000 EA TAPE-FURNACE, 1 1/2"
056464-10-000 EA REGISTER-HEAT/A/C, ROUND W/O DAMPER - 4" - PLASTIC - BEIGE
069636-02-000 EA CONNECTOR-DUCT, 4" ID - 050715
092777-01-000 EA ADAPTER-DUCT, 4"
023146-01-000 EA CLAMP-SCREW TYPE - 4"
076776-01-000 EA TEE-BARB, 5/8" X 5/8" X 5/8"
089367-02-000 EA TEE - 4 X 2 X 4 INCH
115764-01-01A EA THERMOSTAT-FURNACE, SUBURBAN 160902
093614-01-02A EA GRILLE-RETURN AIR, DURA BIEGE - LIMA,19H-14X6BR-RAG
093614-02-02A EA GRILL-RETURN AIR, DURA-BEIGE - LIMA,19H-8X8BR-RAG
093614-04-02A EA GRILL-RETURN AIR, DURA-BEIGE
4
3
2
13
16
12
7
20
18
1
8
9
19
14
15
17
10
5
6
11
