WATER & SEWAGE GROUP (CONTINUED)WATER & SEWAGE GROUP (CONTINUED)
FRESH WATER TANK
KEY PART NUMBER U/M DESCRIPTION
117217-01-000 EA TANK ASM - WATER - 30 GAL - W/O FITTINGS
117217-02-000 EA TANK ASM - WATER - 30 GAL - W/ FITTINGS
116881-01-000 EA TANK ASM - WATER - 48 GAL (W/ NOTCHED CORNER) - W/O FITTINGS
116881-04-000 EA TANK ASM - WATER - 48 GAL (W/ NOTCHED CORNER) - W/ FITTINGS
042989-05-000 EA FITTING - SPINWELD - PLASTIC 1/2FPT
042989-03-000 EA FITTING - SPINWELD - PLASTIC - 1 1/4" FPT
049032-01-000 EA PATCH - SPINWELD - 3/8" - PLASTIC
039861-01-000 EA SENDING UNIT W/SCREW - WASHER
091208-01-000 EA WASHER - RUBBER - .06" X .75" X .5"
077954-02-000 EA FILTER - WATER TANK - SCREEN IN TANK
EXTERIOR SHOWER COMPONENTS
KEY PART NUMBER U/M DESCRIPTION
103092-01-000 EA SHOWER HEAD - W/60" HOSE (US)
103092-02-000 EA SHOWER HEAD - W/HOSE (CSA)
104044-01-000 EA BRACKET - SUPPORT - FAUCET
103092-01-700 EA BRACKET (FOR SHOWER HEAD) CLEAR
103092-01-701 EA BRACKET (FOR SHOWER HEAD) BONE
075241-05-000 EA FAUCET - SHOWER - BONE
WATER SYSTEM COMPONENTS
KEY PART NUMBER U/M DESCRIPTION
701069-01-000 EA WATER PURIFICATION SYSTEM
701069-03-700 EA CARTRIDGE - WATER FILTER - AC - EVERPURE 9601-11
039800-04-000 FT TUBING - POLYBUTYL - 1/4" OD X 20FT
039800-02-000 FT TUBING - POLYBUTYL - 5/8" OD X 20FT
079381-01-000 FT TUBING-SMOOTH FLEXIBLE, 1 3/8" ID X 20'
010219-01-000 EA ELBOW - 1 1/4" MPT X 1 1/4" BARB - WATER FILL - PLASTIC
039798-01-000 EA TEE - 1/2" MPT X 1/2" MPT X 1/2" MPT - PLASTIC
101814-01-000 EA COUPLING - FEMALE - 1/2" X 1/2" FPT
M06993-02-000 EA INSULATION - WATER TANK
010230-05-000 EA CITY WATER FILL, W/CHECK VALVE
103798-01-000 EA CONNECTOR - 1/4"OD X 3/8"MPT
110438-01-000 EA VALVE - CHECK - BRASS
111888-02-000 EA INSERT-BRASS, 1/4 COMP
WATER SYSTEM COMPONENTS (FLAIR-IT)
KEY PART NUMBER U/M DESCRIPTION
114427-01-000 EA CAP - 1/2P - 02860
114427-02-000 EA PLUG - 1/2P - 02863
114428-01-000 EA TEE - 1/2P X 1/2P X 1/2P - 02820
114428-02-000 EA TEE - SWIVEL - 1/2P X 1/2P X 1/2FPT - 02821
114428-03-000 EA TEE - 1/2P X 1/2P X 1/2MPT - 02822
114429-01-000 EA ELBOW - 1/2P X 1/2P - 02800
114429-02-000 EA ELBOW - 1/2P X 1/2MPT - 02803
114429-03-000 EA ELBOW - SWIVEL - 1/2P X 1/2FPT - 02816
114429-04-000 EA ELBOW - 1/2P X 3/8MPT - 02810
114429-05-000 EA ELBOW - 1/2P X 3/4MPT - 02812
114429-06-000 EA ELBOW - SWIVEL - 1/2P X 3/4FPT - 02811
114430-01-000 EA ADAPTER - 1/2P X 1/2P - 02840
114430-02-000 EA ADAPTER - SWIVEL - 1/2P X 1/2FPT - 02873
114430-03-000 EA ADAPTER - 1/2P X 1/2MPT - 02842
114431-01-000 EA VALVE - LINE DRAIN 1/2P - 02914
114431-02-000 EA VALVE - 1/2P - BYPASS - 02910
114431-03-000 EA VALVE - 1/2P X 1/2P - 02884
114431-04-000 EA VALVE - STOP - 1/2P X 1/2P - 02880

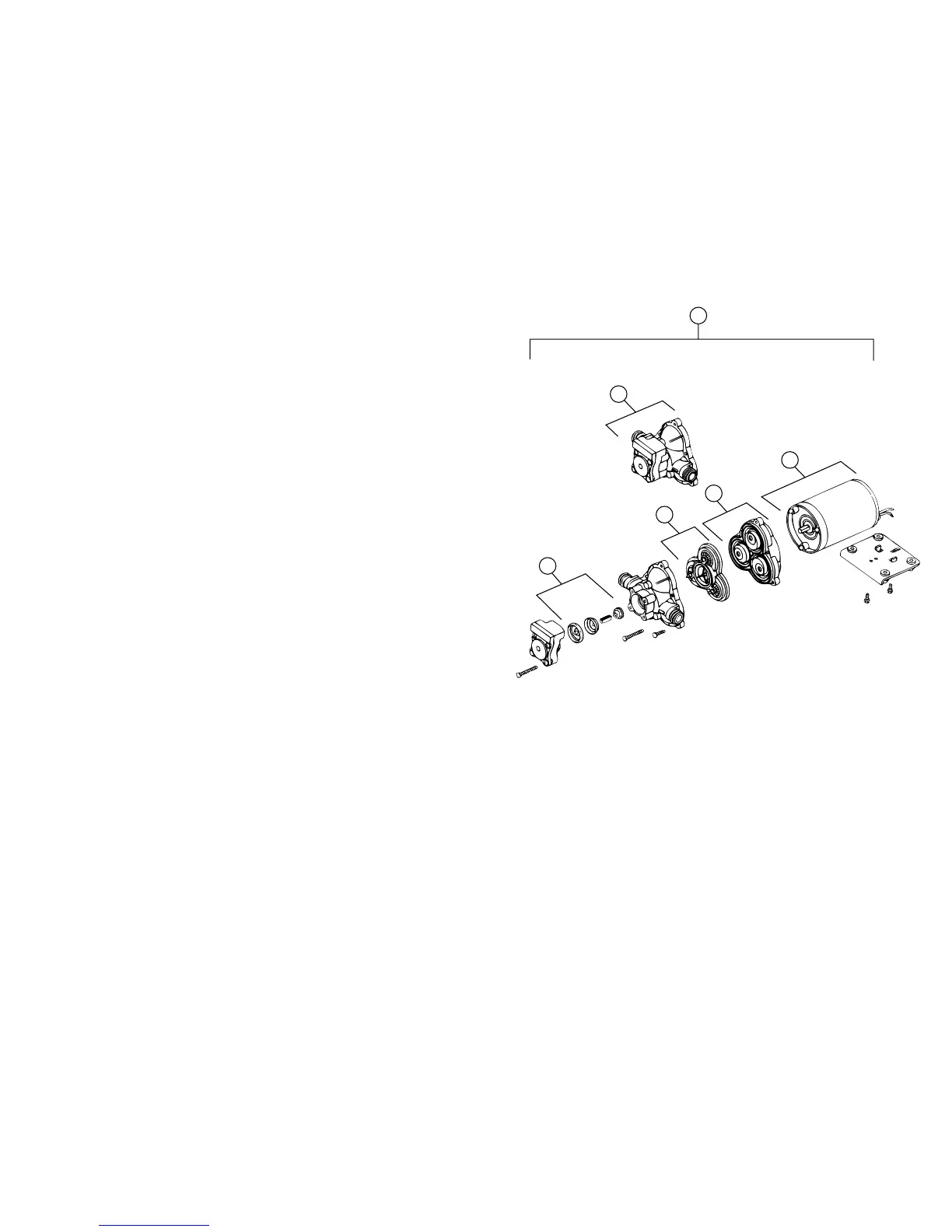

WATER PUMP (SHURFLO)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
1 098607-01-000 EA PUMP - WATER - W/.5"MPT FITTING - FLOW 2.8 GPM - UL
2 098607-01-706 EA UPPER HOUSING/ SWITCH KIT 94-231-20
3 098607-01-705 EA CHECK VALVE - KIT 94-237-00
4 098607-01-703 EA VALVE ASM 94-232-00
5 098607-01-702 EA DRIVE/ DIAPHRAGM - KIT 94-238-04
6 098607-01-707 EA MOTOR/ BASEPLATE REPLACEMENT 94-235-03
1
2
3
4
5
6
