WATER & SEWAGE GROUP (CONTINUED)
WATER HEATER W/MOTOR AID - PILOTLESS IGNITION

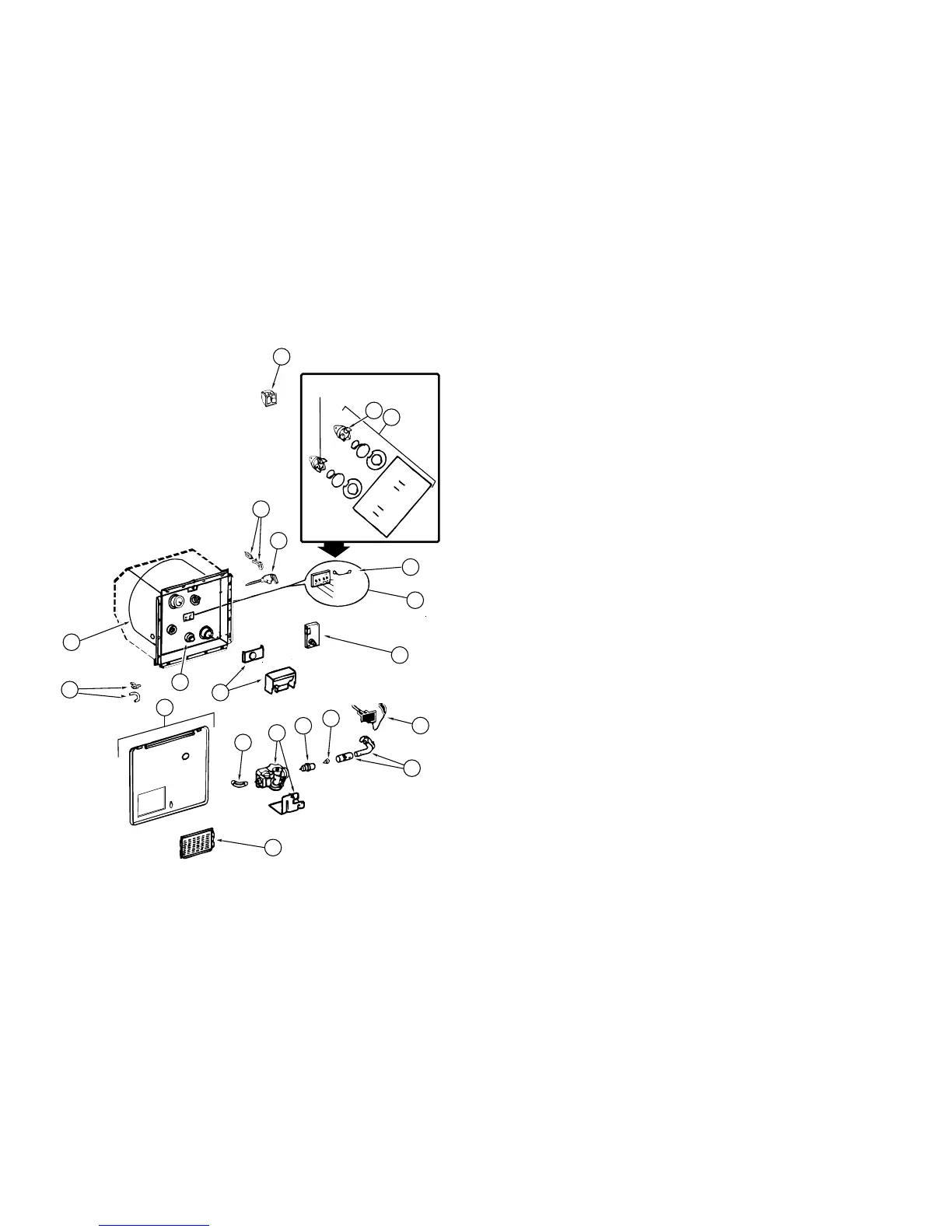

WATER HEATER W/MOTOR AID ATWOOD (GH6-7E)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
051393-01-000 EA WATER HEATER - W/ MOTOR AID - PILOTLESS IGNITION
1 051393-01-701 EA SWITCH PACKAGE 91959
2 051391-04-701 EA THERMOSTAT 12 VDC-120 PRESET 91470
3 051393-01-721 EA ECO & THERMOSTAT ASM - FRONT MOUNT - 140° 91447
4 051391-01-705 EA FASTENER - CAMLOC 92609
5 051391-01-704 EA VALVE - RELIEF - 1/2" FITTING 91604
6 051393-01-723 EA SWITCH - ENERGY CUT-OFF 93866
7 051393-01-724 EA CIRCUIT BOARD - W/ SPADE TERMINAL 93867
8 051393-01-725 EA ELECTRODE - SINGLE SPADE CONNECTION 93868
9 051391-04-703 EA BURNER - MAIN 91638
10 051391-01-717 EA GRILLE 92640
11 051391-01-710 EA ORIFICE - MAIN BURNER 92742
12 051391-03-700 EA ORIFICE HOLDER 91563
13 051393-01-726 EA SOLENOID VALVE & BRACKET 93870
14 051391-01-714 EA ELBOW - 45 DEGREE - 3/8"F X 3/8"MPT 91044
15 052009-04-000 EA DOOR - WATER HEATER - BUFF
16 051391-01-700 EA HINGE KIT - W/CLIP 92568 & 92559
17 051393-03-701 EA TANK - INNER 91642
18 051391-01-715 EA DRAIN PLUG 91857
19 051391-01-706 EA FLUE & GASKET 92787
116424-01-000 EA PROTECTOR - ROUND VINYL - WATER HEATER LATCH
WATER HEATER W/MOTOR AID ATWOOD (GH6-8E)
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
051393-01-000 EA WATER HEATER - W/ MOTOR AID - PILOTLESS IGNITION
1 051393-01-701 EA SWITCH PACKAGE 91959
2 051391-04-701 EA THERMOSTAT 12 VDC-120 PRESET 91470
3 051393-01-721 EA ECO & THERMOSTAT ASM - FRONT MOUNT - 140° 91447
4 051391-01-705 EA FASTENER - CAMLOC 92609
5 051391-01-704 EA VALVE - RELIEF - 1/2" FITTING 91604
6 051393-01-723 EA SWITCH - ENERGY CUT-OFF 93866
7 051393-01-724 EA CIRCUIT BOARD - W/ SPADE TERMINAL 93867
8 051393-01-725 EA ELECTRODE - SINGLE SPADE CONNECTION 93868
9 051391-04-703 EA BURNER - MAIN 91638
10 051391-01-717 EA GRILLE 92640
11 051391-01-710 EA ORIFICE - MAIN BURNER 92742
12 051391-03-700 EA ORIFICE HOLDER 91563
13 051393-01-726 EA SOLENOID VALVE & BRACKET 93870
14 051391-01-714 EA ELBOW - 45 DEGREE - 3/8"F X 3/8"MPT 91044
15 052009-04-000 EA DOOR - WATER HEATER - BUFF
16 051391-01-700 EA HINGE KIT - W/CLIP 92568 & 92559
17 051391-04-704 EA TANK - INNER 91642
18 051391-01-715 EA DRAIN PLUG 91857
19 051391-04-707 EA FLUE & GASKET 90960
111129-01-711 EA BRACKET-CORNER, SET OF FOUR 91928
116424-01-000 EA PROTECTOR - ROUND VINYL - WATER HEATER LATCH
1
2
3
3
4
5
17
16
18
19
14
13
10
12
11
7
8
9
6
Brown (a)
Brown (b)
Red (a)
Red (b)
Yellow Dot Appears
Between Leads on ECO
15
