6-9
SECTION 6 –
ELECTRICAL
affected lights or appliances and reset the breaker
or replace the fuse with a new one of equal
amperage rating.
Circuit Breaker Panel
A label on the panel states the amperage rating
and circuit protected for each fuse or breaker.
12-Volt Fuse Panel
The fuse panel accepts only blade type plug-in
fuses. Always replace fuses with those of the
same amperage rating.
Battery Charge Meter
See related item under “Systems Monitor
Panel” in Section 4 - Appliances.
Battery Boost Switch
See Section 3 - Driving Your Motor Home for
information on the Battery Boost switch.

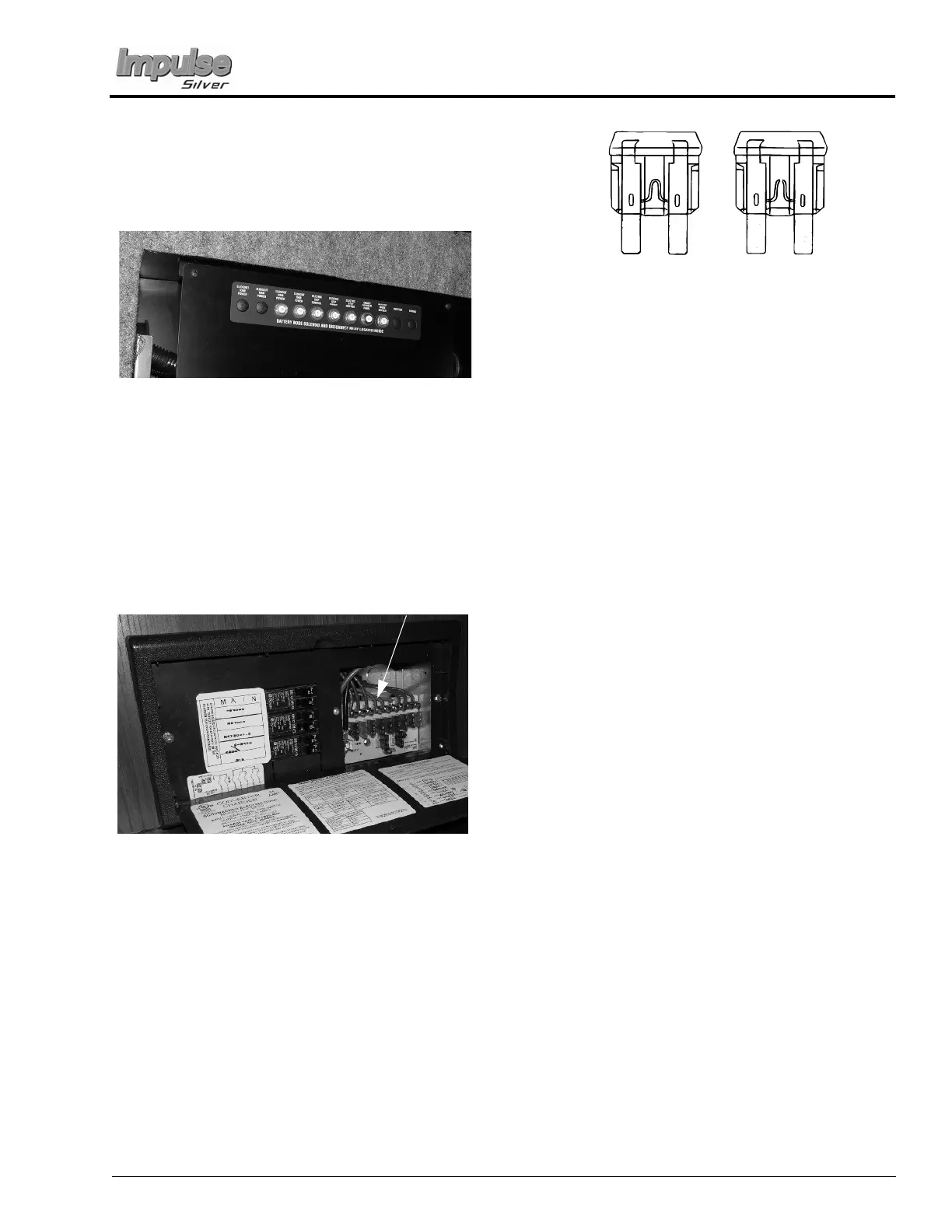

Chassis and House 12V Breakers
(Located in passenger side compartment)
-Typical View
* Shown with cover removed
12-Volt House Fuses
12V Fuse Panel
(Located on the right-hand side
of the power converter)
-Typical View
Functional Non-Functional
