WINDOW & VENTS GROUP (CONTINUED)

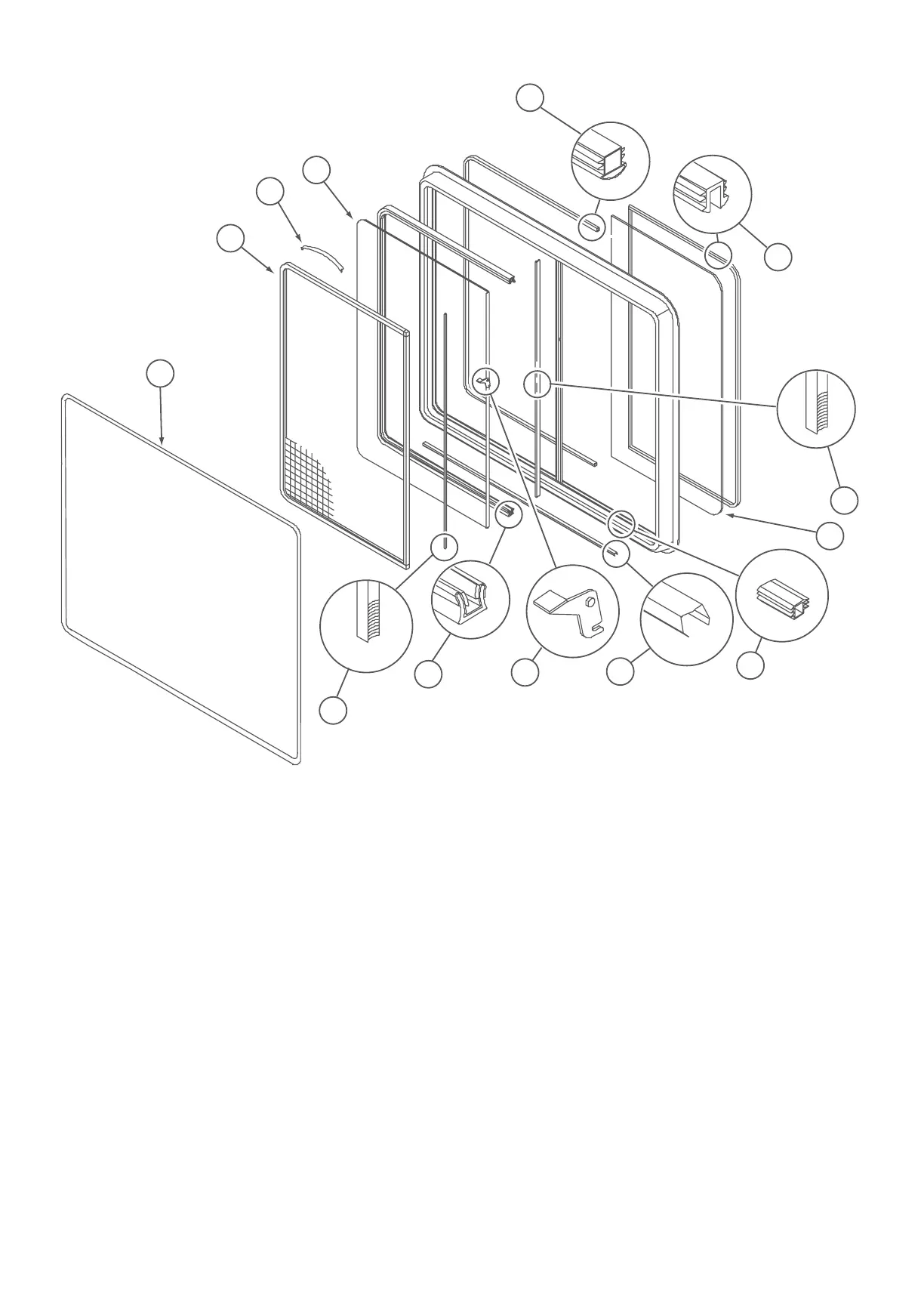

COMPONENT PARTS FOR WINDOWS & VENT LAYOUT (CONTINUED)
12
4
11
1
2
3
10
5
6
7
8
9
13
098647-25-02A
KEY PART NUMBER U/M DESCRIPTION VENDOR NO.
098647-25-02A EA WINDOW - PASS HORIZ SLIDER W/TRIM - TINTED - 26.1" X 29.6
1 098644-01-716 FT PLUG - FILLER 132-014470
2 098644-01-705 FT GLAZING - STRIP 132-010231
3 098644-01-706 FT WEATHERSTRIP - GLASS 171-010668
4 098644-01-713 EA CLIP - SCREEN - METAL 226-016966
4 125582-01-701 EA CLIP - SCREEN - PLASTIC 130-005153
5 098644-01-719 EA STOP - SLIDER GLASS 132-014203
6 098644-01-710 FT TRACK - SCREEN SPACER 12' 132-017135
7 098644-01-700 EA LATCH - REPAIR KIT (BLACK) B801-CK
8 098644-01-708 FT CHANNEL - RUN PIERCED 122-016543
9 098644-01-711 FT WEATHERSTRIP - SCREEN BLACK 171-016965
10 098647-25-702 EA GLASS - STATIONARY 106-017657
11 098647-25-703 EA GLASS-SLIDING W/SASH & LATCH H286-G9
12 098647-25-704 EA SCREEN ASM - W/SEALS & CLIPS 410-019065
13 098647-25-705 EA RETAINER - TRIM H286-66
098644-01-717 FT SPLINE - SCREEN 132-004716
