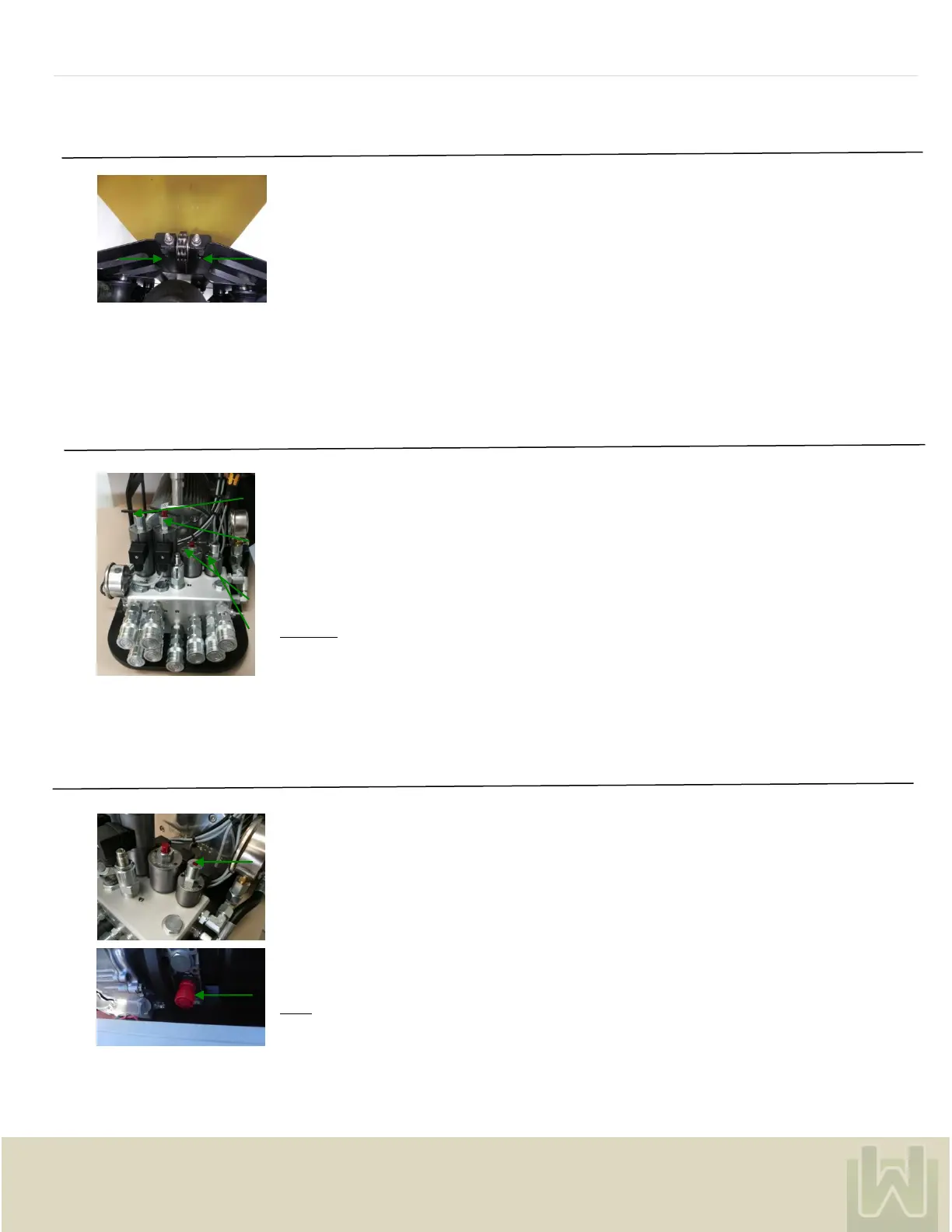

7. ADJUSTMENT OF CHAIN PROBE UP/DOWN
Move the probe approximately 20 cm down. Activate the emergency stop to stop the soil sampler,
and turn off the engine. The chain can now be adjusted by tightening the bolts.
8. ACTIVATING THE HYDRAULIC VALVES MANUALLY
Soil sampler up/down:
The soil sampler goes down when pressing the valve. The soil sampler goes up when pulling the valve.
Probe up/down:
The probe goes down when pulling the valve. The probe goes up when pushing the valve.
Rotation:
Screw counter-clockwise to activate the rotation process. Then press the main valve.
Important: Re-set the button into start position after use.
Do always activate the main valve by pressing it down when activating the other functions.
9. ADJUSTING THE HYDRAULICS
ADJUSTING THE MAIN PRESSURE
Start the motor with max. r.p.m. Press the main valve. The manometer must show 80-120 bar.
This valve is for adjusting the main pressure. The main pressure is pre-set on 120 bar. It must only be
adjusted after signing a written agreement with Wintex Agro.
Fuse: There is a 7.5 amp fuse for current control in the box and a 15 amp fuse for the oil cooler.
