THE LMC LIFTCOMPONENTS MANUFACTURING AND COMMERCE COMPANY
Änderungen vorbehalten! Subject to change without notice!

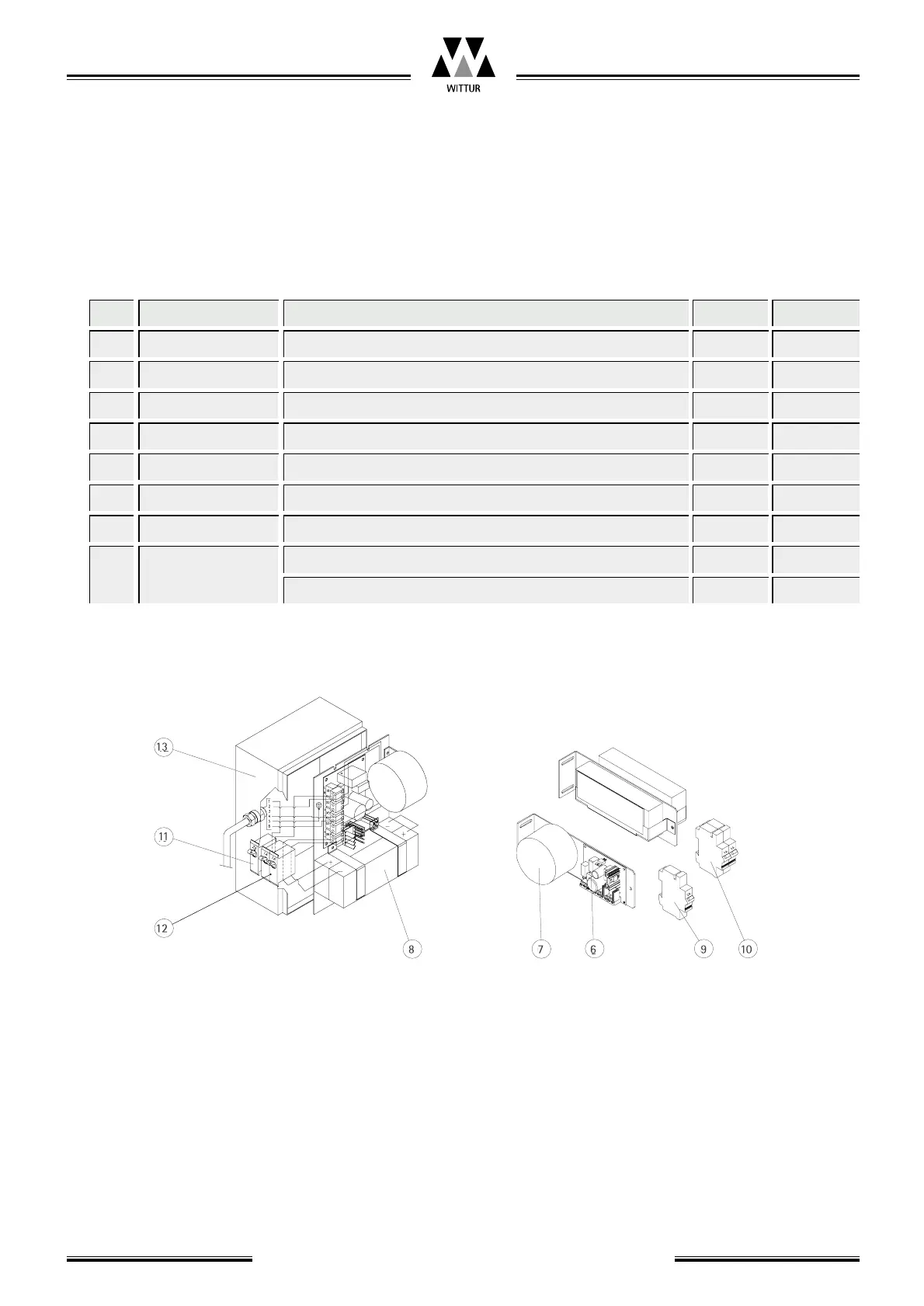

Braking System EBRA20
Operating instruction
Component Spare part ... used Number... Art. No.
Electronic board 1 720504G01
Pos.
6
7 230/30VAC 50VA 1 604200G01
8 12V 2.1 AH 1 253300
9 Siemens 5SX2102-7- 2A-230V 1 273268
10 Siemens 5SX2101-7 - 1A-230V 1 273267
11 JA1S-A8-AK-04-H-L-2A-10 1 273324
12 JA2S-B3-BK-04-H-A-1,2-2 1 273321
13
AF-1003/SONDER 300x200x120 when NO battery is included 1 602013G01
AF-1003/SONDER 300x200x120 when battery is included 1 602013G02
