WITTUR EBRA20 - Name Plate, Designation, and Identification

The EBRA20 identification indicator is located on
the top of the brake connection box.
It gives following data:
• Type term
• Serial number
• Elevator number
• Tripping speed
• Nominal load
Number of brakes (1... Q<
1000kg)
(2... 1000<Q<
2000kg)
• Rail head width
• Spring adjustment dim. (B)
The EBRA20 is preset in the factory and should not
be adjusted on site conditions.
Spring length (B) is measured when EBRA20 is on
the rail and braking and should be +/-1 mm from
the value given.
Blatt/ sheet D7AJMGB.006
Datum/
date 23.05.2002
Stand/
version 23.05.2002
Geprüft/
approved WAT/MZE
THE LMC LIFTCOMPONENTS MANUFACTURING AND COMMERCE COMPANY
Änderungen vorbehalten! Subject to change without notice!

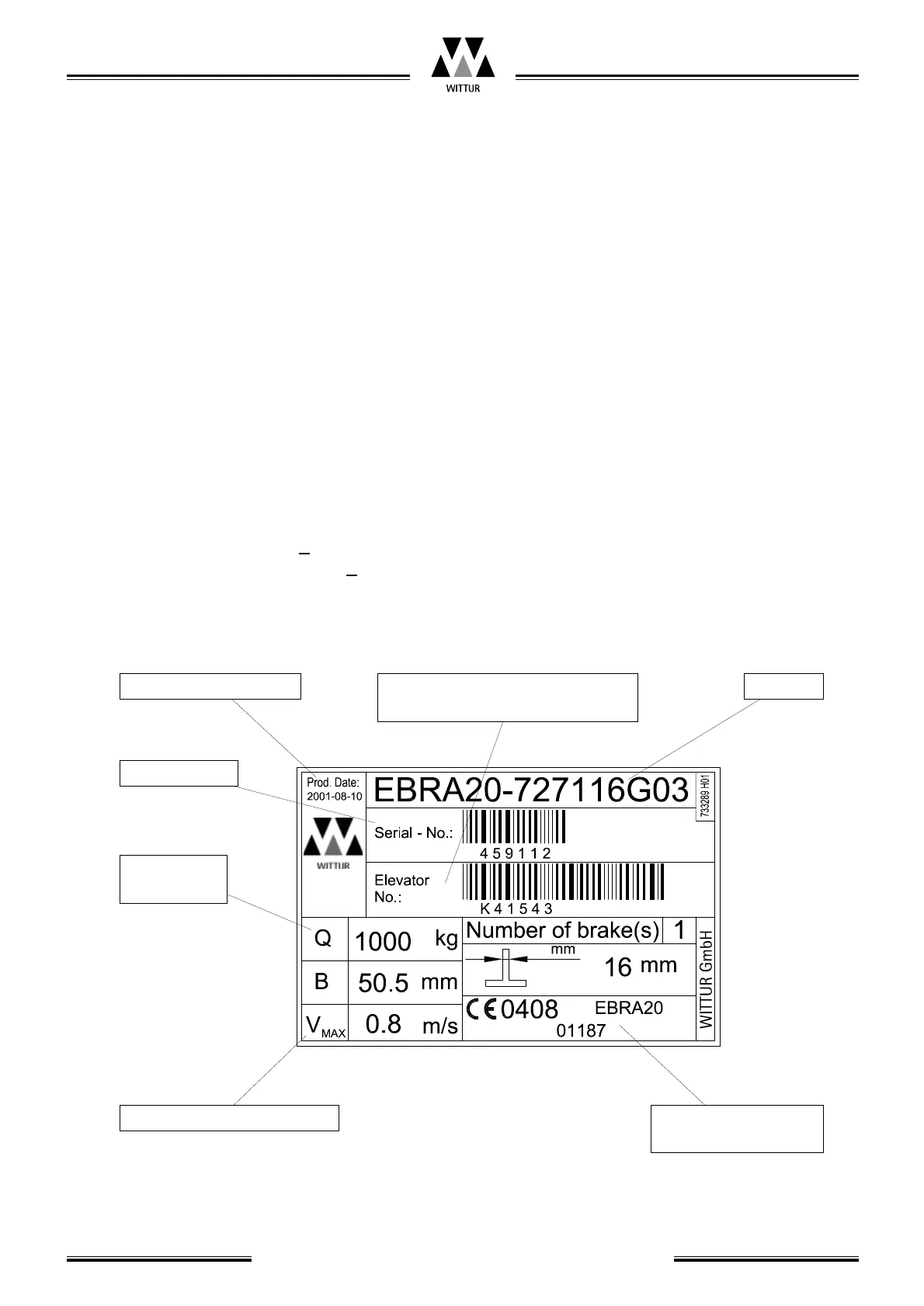

2 Name plate, designation, identification
Braking System EBRA20
Operating instruction
Type test designation
and CE-label
Tripping speed vmax = (m/s)
Nominal load
Q = (kg)
Serial number
Order number - Elevator number
(refer to delivery or order sheet)
Typ termDate of manufacture
