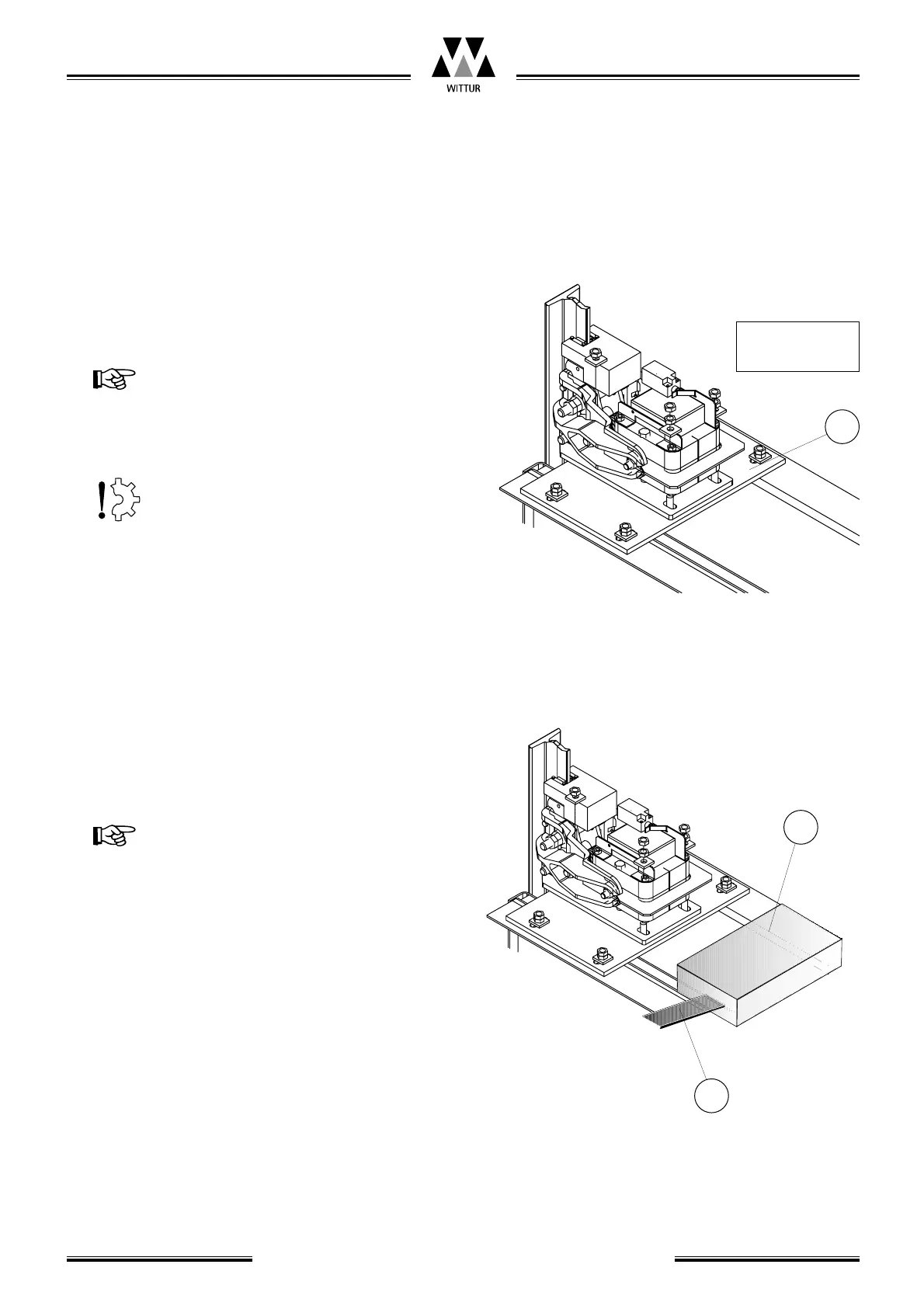

(4) Fix the EBRA(s) (D) on the adapter plate
There are two EBRA20 units when nominal
load of the lift is above 1000kg.
Take care of tightening torque
Screw M12: 80Nm
(5) Connect the connection cables from each
brake unit to the car roof terminal box (E).
The brake switch contact is wired in series
with the safety gear contact in lift safety
circuit.
Blatt/
sheet
D7AJMGB.008
Datum/
date
23.05.2002
Stand/
version
23.05.2002
Geprüft/
approved
WAT/MZE
THE LMC LIFTCOMPONENTS MANUFACTURING AND COMMERCE COMPANY
Änderungen vorbehalten! Subject to change without notice!
Braking System EBRA20
Operating instruction
(4)
(5)
Screw package
601775G04
D
E
A
