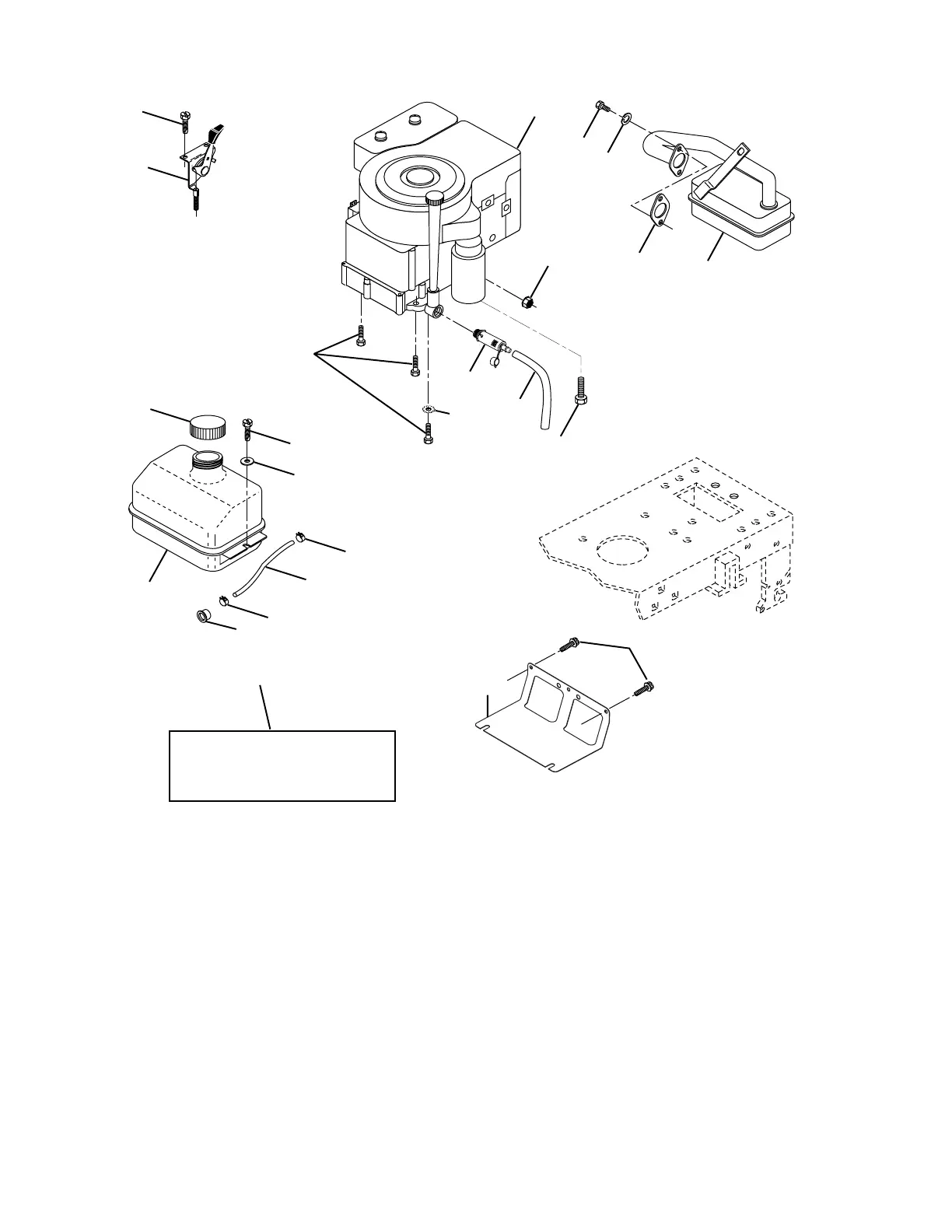

TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
44
46
32
31
33
37
33
62
13
4
72
78
81
3
16
78
23
45
14
38
40
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 170551 Control Throttle/Choke Flag
2 17720408 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - Engine Briggs Model 282H07
(Order Parts From Engine
Manufacturer)
4 137352 Muffl er Exhaust B&S Lt
13 165291 Gasket 1 313 Id Tin Plated
14 148456 Tube Drain Oil
16 11050600 Washer Lock Ext Tooth 3/8
23 169837 Shield Browning/Debris Guard
29 137180 Arrestor Spark
31 109202X Tank Fuel 1 25 Fr
32 140527 Cap Asm Fuel W/sym Vented
33 123487X Clamp Hose Blk
37 137040 Line Fuel 20"
38 181654 Plug Drain Oil
40 124028X Bushing Snap Nyl Blk Fuel Line
44 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 17000612 Screw Hex Wsh Thdrol 3/8-16
KEY PART
NO. NO. DESCRIPTION
46 19091416 Washer 9/32 x 7/8 x 16 Ga.
62 10040500 Washer Lock Hvy Hlcl Spr 5/16
72 71070512 Screw Hexhd Cap 5/16-18 x 3/4
78 17060620 Screw 3/8-16 x 1-1/4
81 73510400 Nut Keps Hex 1/4-20 unc
For engine service and replacement parts, call the toll
free number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
For Parts Call K&T 606-678-9623 or 606-561-4983
