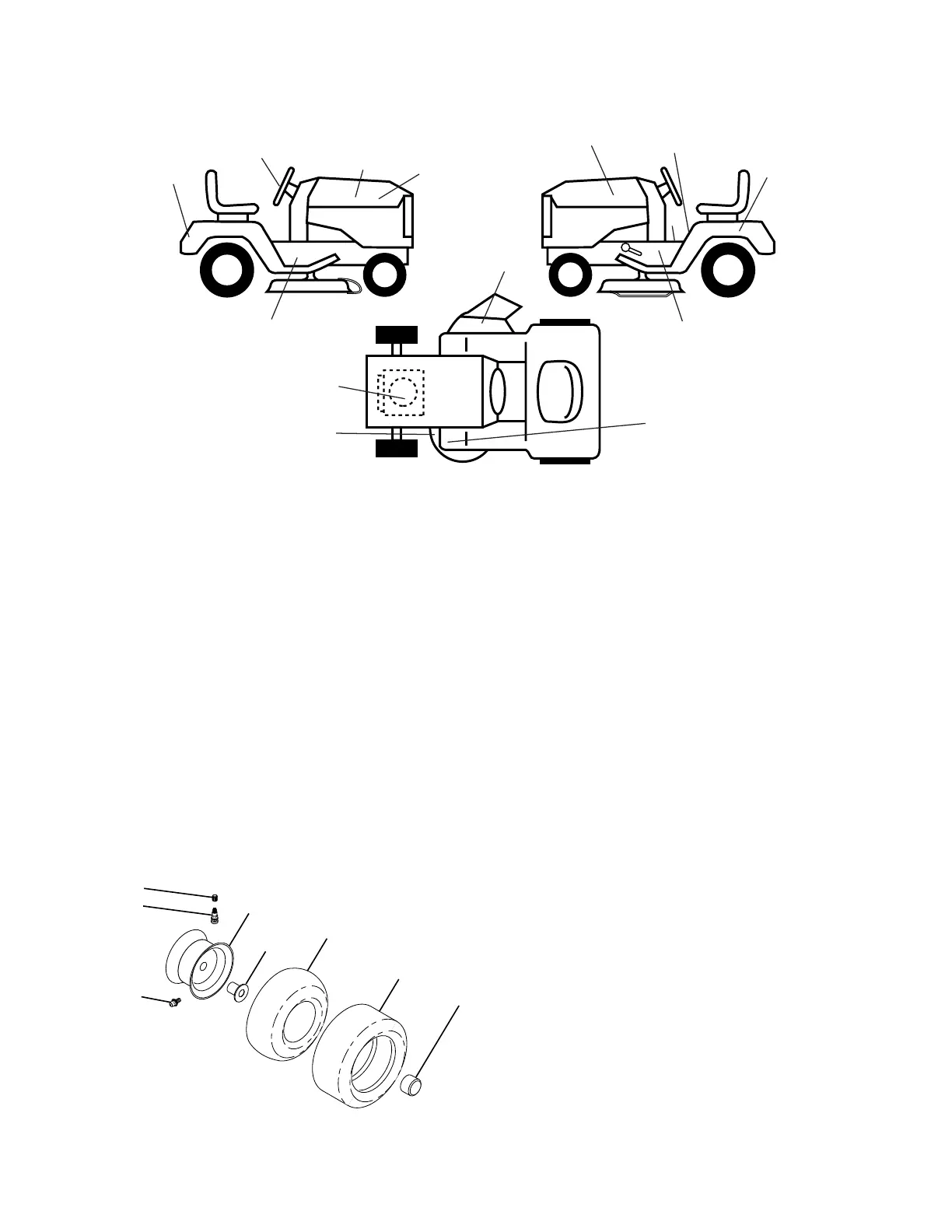

TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17
DECALS
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
5
6
9
14
6
2
1
5,8
4,10
3,9
11
7
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X417 Rim Asm 6"front Silver Service
6 278H Fit ting Grease (Front Wheel Only)
7 9040H Bear ing Flange (Front Wheel
Only)
8 106108X417 Rim Asm 8"rear Silver Service
9 124635X Tire R Ts 18x8.5-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
3
10
16
1 156867 De cal Instruction Operat English
2 184943 Decal Steering
3 184934 De cal Hood Rh
4 184942 De cal Hood Lh
5 179128 Decal Deck “B”
6 185409 Decal Replace
7 184945 Decal Chassis 6 Sp/42
9 184944 De cal Fender Logo
10 156439 De cal Danger English
11 181249 De cal Clutch/brake
14 160396 De cal V-belt Schematic 42"
16 145005 Decal Battery Danger/Poison
20 185409 Decal HP Engine
- - 179769X428 Pad Footrest RH
- - 179768X428 Pad Footrest LH
- - 138311 Decal Lift Handle
- - 184539 Manual Owner’s English
- - 184540 Manual Owner’s Spanish
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
20
2
7
11
7
4
1
