KEY PART
NO. NO. DESCRIPTION

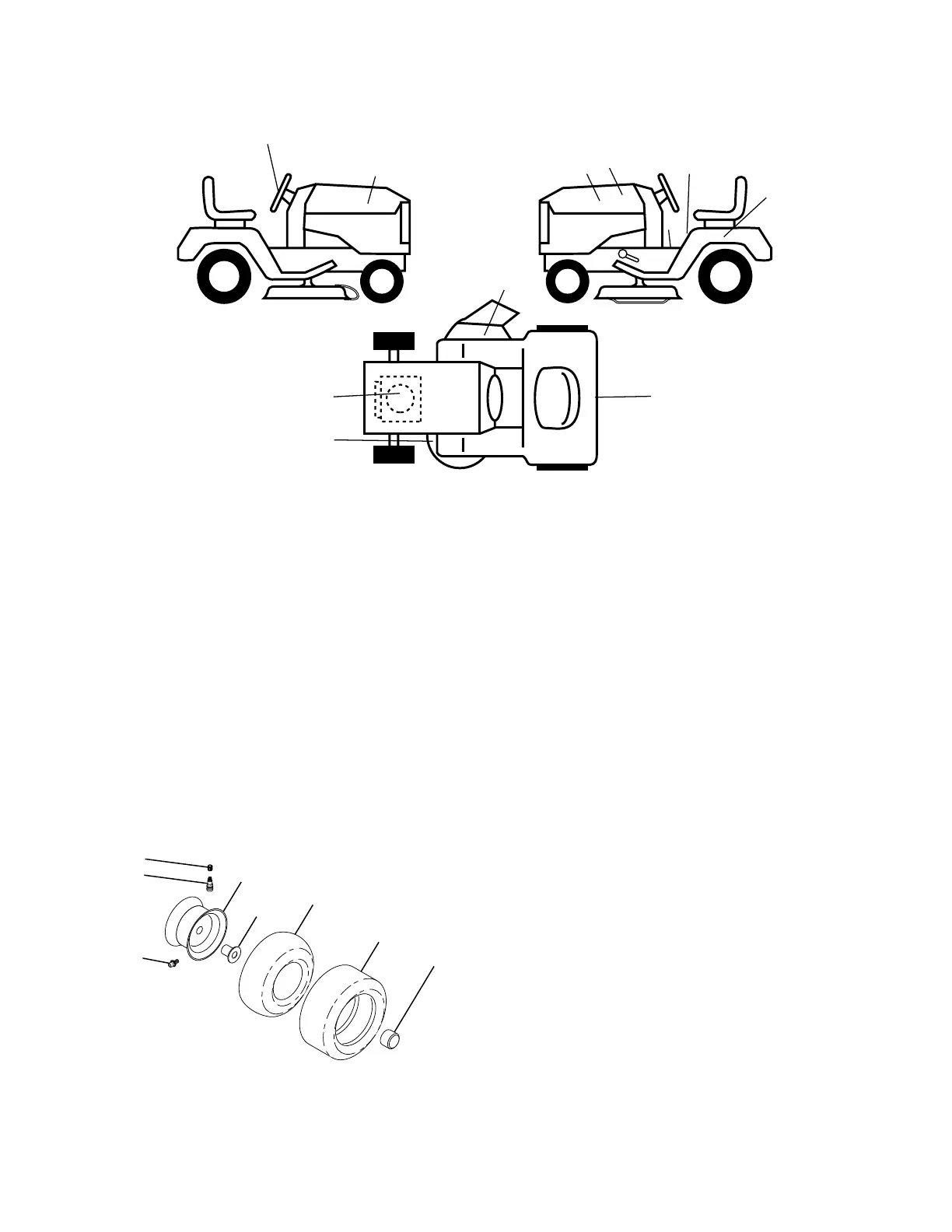

WHEELS & TIRES
TRACTOR - - MODEL NUMBER WA20H42STA PRODUCT NO. 954 56 83-35
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
14
6
2
1
5,8
4,10
3,9
11
7
wheel_1
11
1
3
10
20
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
5
6
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F T 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X417 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel nly)
8 106108X417 Rim Asm 8"rear Service
9 122082X Tire R T 20 x 10-8 Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle Blk 1 50 x 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
1 156811 Decal Oper
3 184970 Decal Hood LH
5 170851 Decal HP Engine
7 185440 Decal Repl. Parts
8 179128 Decal Deck "B" 42"
9 184944 Decal Fender Logo
10 156439 Decal Fender Danger E/F
11 184943 Decal Ins Strg Whl
14 160396 Decal V-Belt Schematic
16 184969 Decal Hood Rh
20 145005 Decal Bat Dan/Psn
- - 169210 Decal By Pass
- - 179768X428 Pad Footrest LH
- - 179769X428 Pad Footrest RH
- - 138311 Decal Handle Lft Height Adjust
- - 184961 Decal Chassis
- - 181249 Decal Footrest
- - 185106 Manual Owner's (English)
- - 185107 Manual Owner's (Spanish)
