Wöhler AMP2-DA - AES Mute-On-Error Jumper Location (919117)

© 2004 Wohler Technologies Inc. ALL rights reserved
20
AMP2-DA/AVU and AMP2-DA/APP User Manual P/N 821584 Rev-A

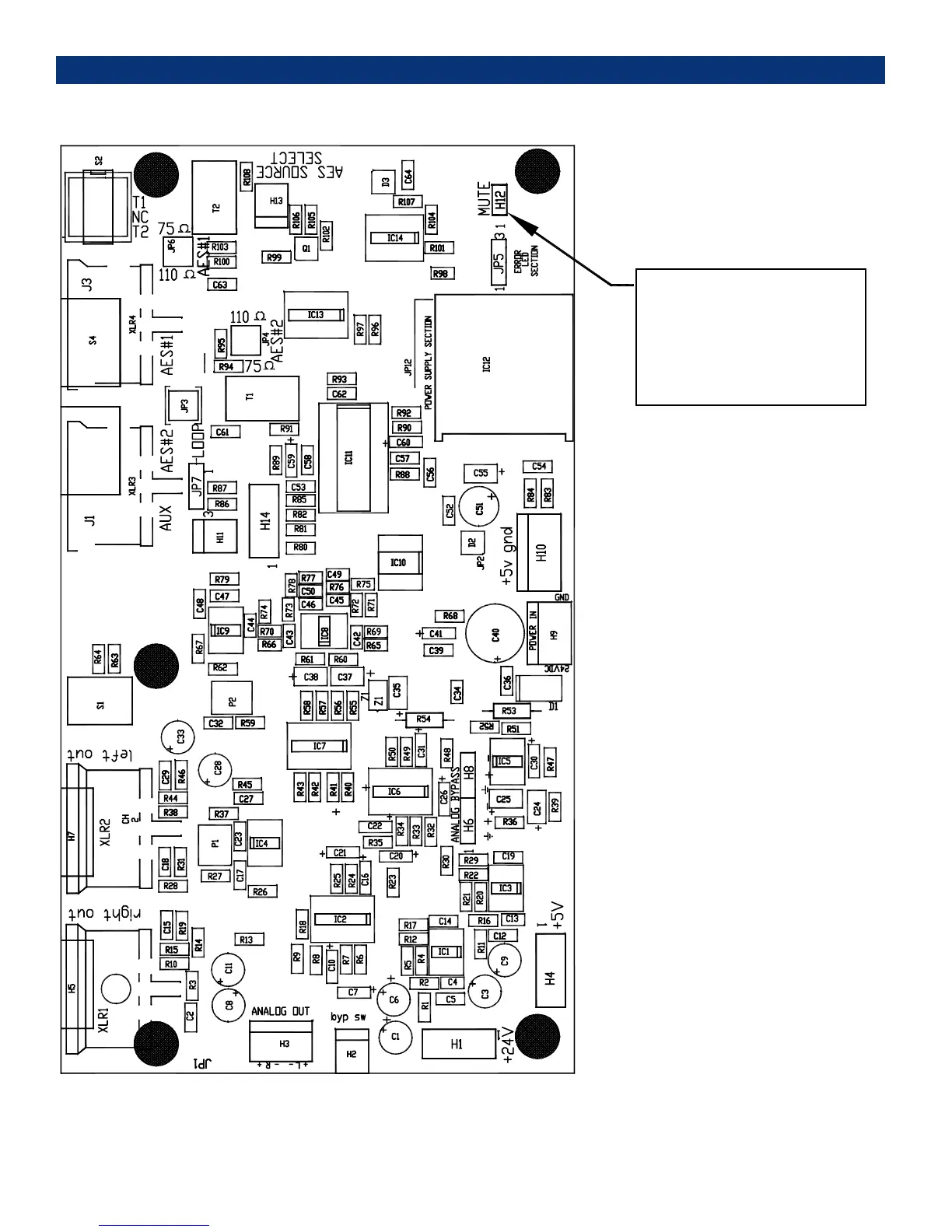

AES Mute-On-Error Jumper Location (919117)
Section 3: Technical InformationMute-On-
Installing a jumper at
H12 will mute the audio
if errors are detected.
See page 14 for more
information.
Installing a jumper at
H12 will mute the audio
if errors are detected.
See Item 5, page 8 for
more information.
AES to Analog Converter Module PCB - 919117
