Component Removal
3-10
#826498 - Revision B - December, 2016
Component Removal - CG152TF/S
Burner Assembly
To remove the burner assembly, first remove the grate,
then (See Figure 3-16):
Remove burner cap from burner assembly.1.
Use T-15 Torx driver to extract two screws securing 2.
burner assembly to orifice holder.
Lift assembly off burner pan and remove wire lead 3.
from spark ignitor.
To remove spark ignitor from burner assembly, 4.
extract screw from underside of burner assembly
and separate.
Torque burner assembly screws to 24 inch-pounds.5.
Orifice Removal
The main and simmer orifice are removeable without
removing the burner pan. To remove an orifice, first
remove the burner assembly, then (See Figure 3-17):
Use a 9/32” socket with extension to extract orifice1.
from the orifice holder.
Confirm the new orifice is the same size as the ori-2.
fice that was extracted.

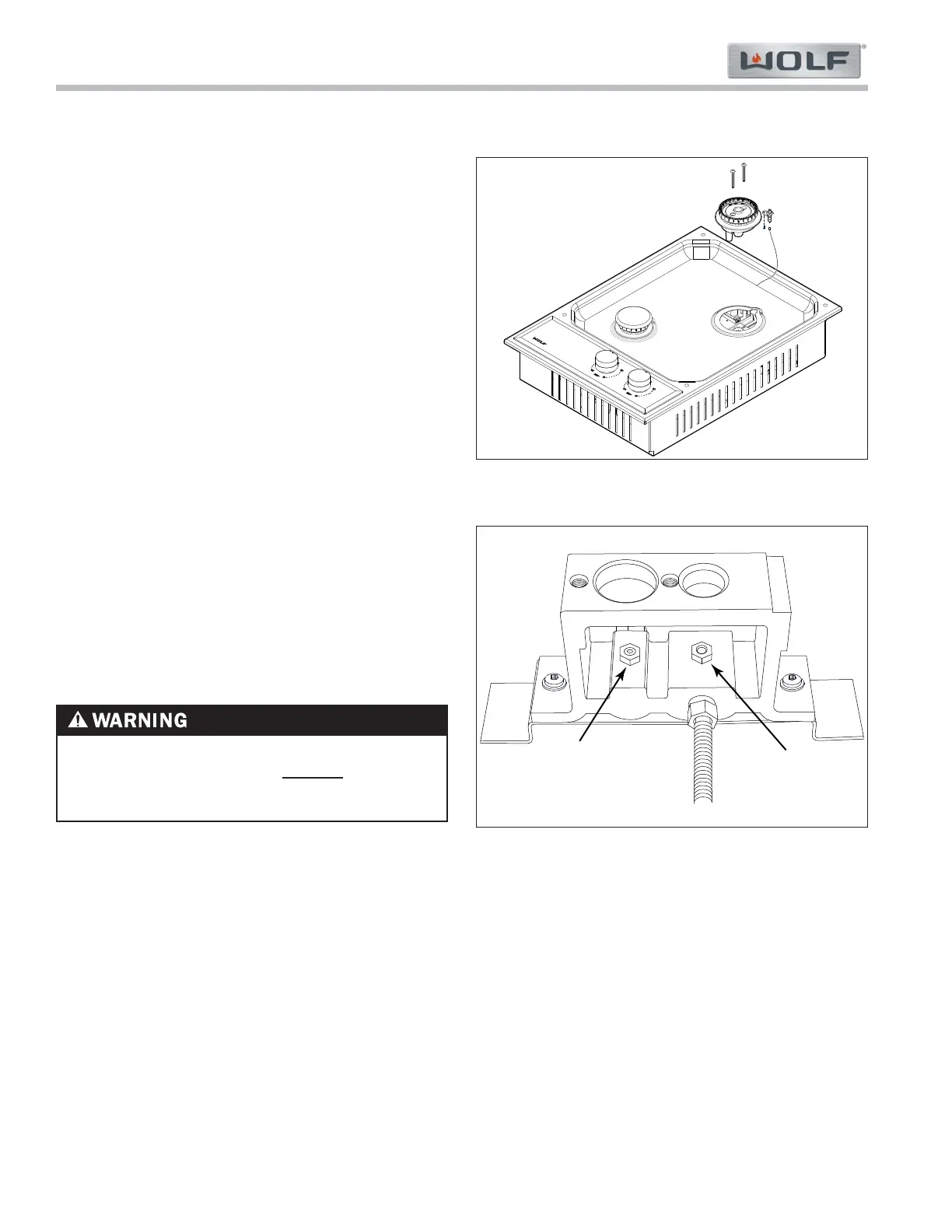

Figure 3-16. Burner Assembly
Figure 3-17. Orifice Removal
USE PIPE THREAD COMPOUND WHEN
REASSEMBLING ORIFICES. DO NOT
USE
TEFLON TAPE TO SEAL GAS CONNECTIONS.
