Component Removal
Integrated Modules
Integrated Modules
3-11
#826498 - Revision B - December, 2016
Burner Pan Removal
To remove the burner pan, first remove the cooktop
from its installation then, (See Figure 3-18):
Remove burner assemblies.1.
Remove knobs.2.
Use a 3/4” wrench to remove knob bezels.3.
Lift burner pan from burner box.4.
Orifice Holder
To remove the orifice holder, first remove the burner
pan, then (See Figure 3-19):
Use a 3/8” open end wrench to remove the simmer1.
gas line.
Use a 1/2” open end wrench to remove the main2.
gas line (main gas line not shown).
Extract two screws securing orifice holder to sealed3.
burner bracket.
Remove orifice holder.4.
NOTES:
Support burner tube while removing or installing•
tubes.
Do not over torque brass fittings.•
If burner tube was kinked it must be replaced.•

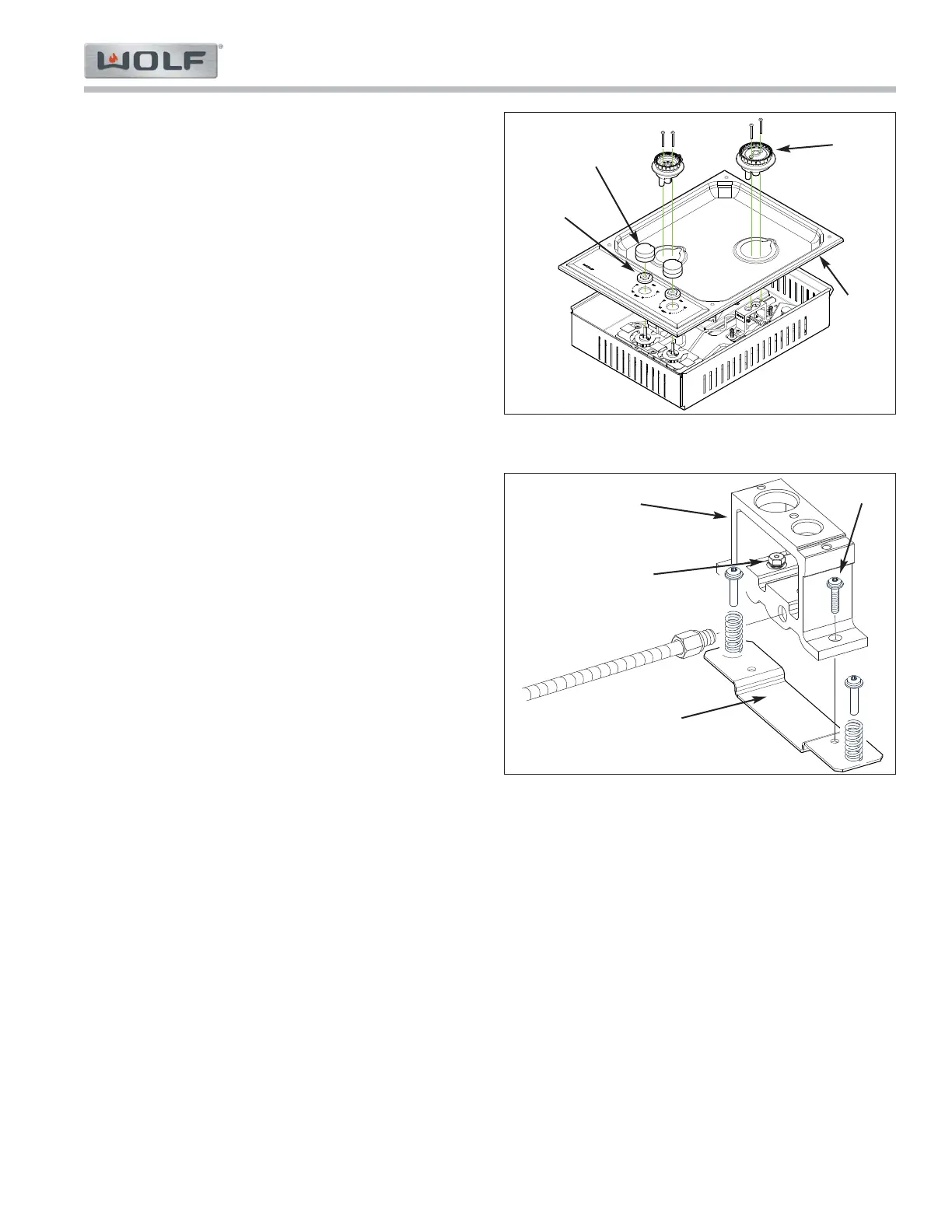

Figure 3-18. Burner Pan
Figure 3-19. Orifice Holder
Burner
Assembly
Burner
Pan
Knob
Knob
Bezel
Orifice
Holder
Main
Orifice
Screw
Sealed Burner
Bracket
