Integrated Modules
Integrated Modules
Component Removal
3-14
#826498 - Revision B - December, 2016

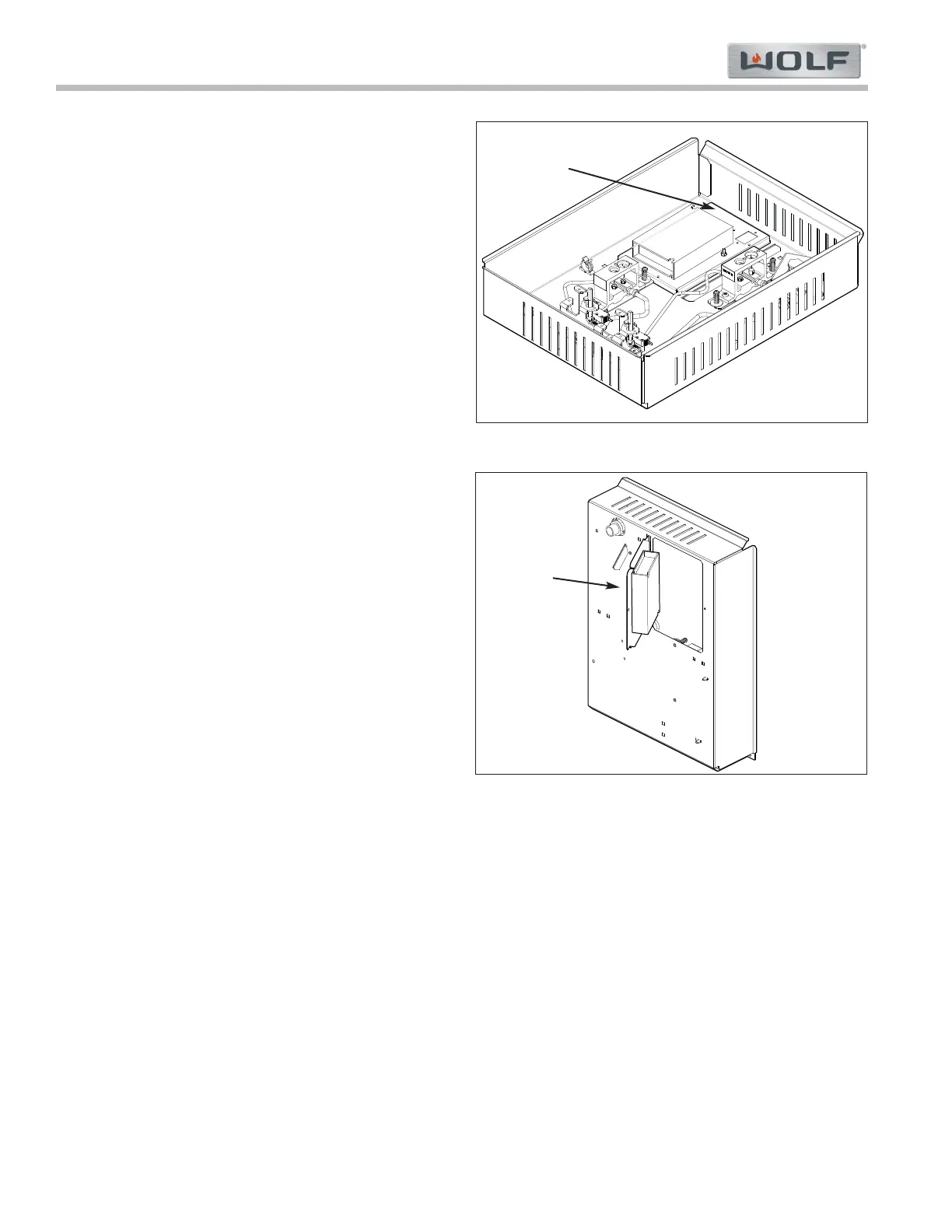

Figure 3-24. Bottom Module Bracket
Spark Module Removal
To remove the spark module open the bottom module
bracket on the bottom of the unit, then (See Figure 3-24
and Figure 3-25):
Use a Phillips screw driver or 1/4” nut driver to1.
extract the screw holding the bottom module brack-
et to the burner box.
Lower screw side of bottom module bracket.2.
Disconnect the electrode wires from the spark mod-3.
ule.
Disconnect the electrical connections from the4.
spark module.
Extract the Phillips screws holding the spark mod-5.
ule to the bottom module bracket.
Figure 3-25. Bottom Module Bracket - Open
Bottom
Mounting
Bracket
Bottom
Mounting
Bracket
