Gas Tubing Removal
First you will need to follow the preliminary steps listed
at the beginning of this section.
Using wrenches, disconnect the flexible gas tubing from
the gas valve and then using wrenches disconnect the
flexible gas tubing from either the jet holder or outer
distributing ring (depending on what flexible gas tube
you are removing).
Manifold
The manifold a black pipe that is mounted to the burner
box. To remove, you will need to follow the preliminary
steps listed at the beginning of this section first. To
gain better access to the mounting bolts of the gas
valves, you may have to remove the ring lights. Now,
remove the gas valves and extract the nuts that secure
the manifold pipe to the manifold mounting studs.
Then, lift out manifold pipe. (See Figure 4-13).
Regulator
The regulator is attached to the threaded end of the
manifold pipe that protrudes out of the bottom of the
burner box.
NOTE: To gain better access to the regulator you may
have to pull the entire cooktop from its installation.
To remove the regulator, turn off the gas supply source.
Unplug the power cord from its electrical supply source.
Then, remove gas connections coming into the regula-
tor from the supply source. Now, unthread the regulator
from the end of the manifold pipe. (See Figure 4-14).

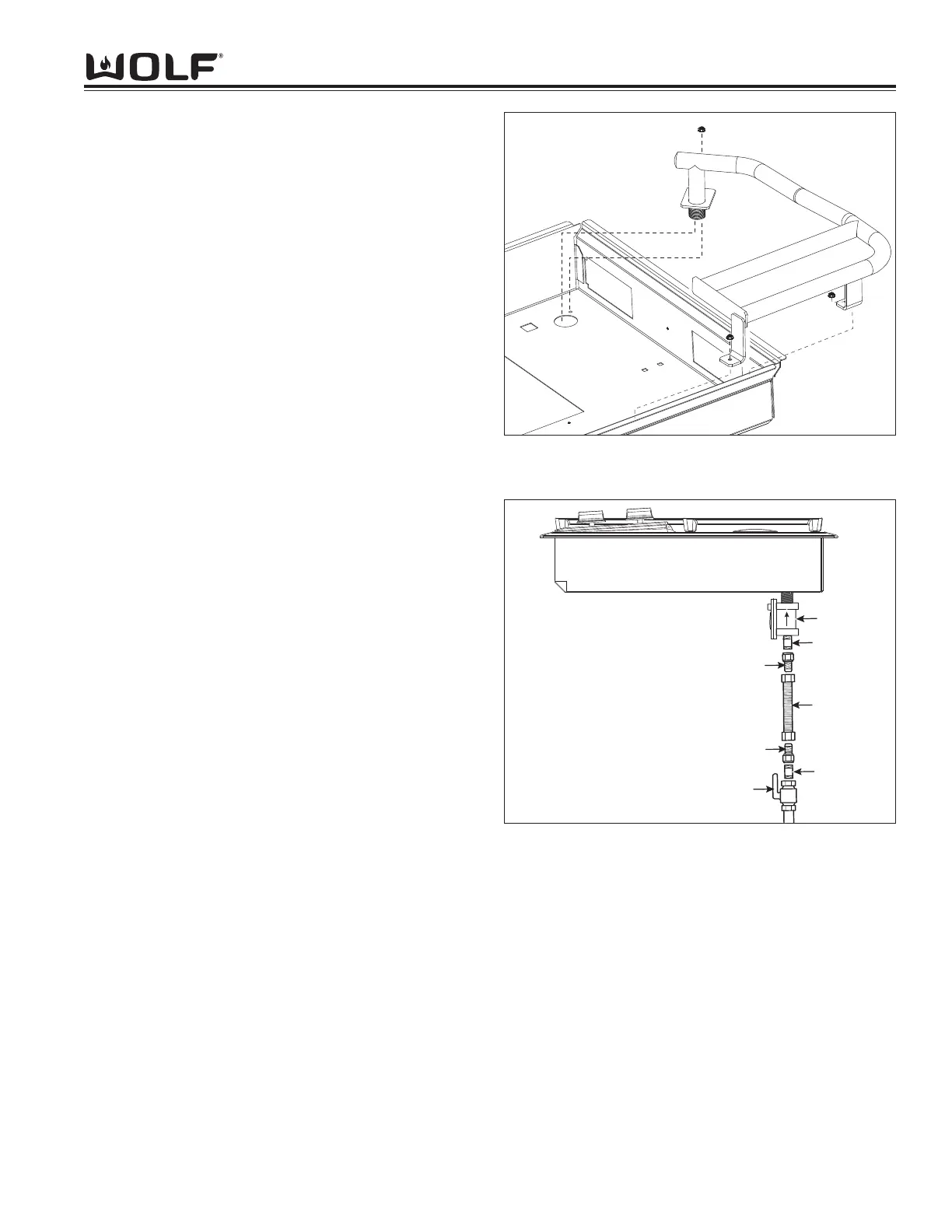

Figure 4-13. Manifold Removal
Right Side View
M
a
n
u
a
l
S
h
u
t
-
o
f
f
V
a
l
v
e
1/2" Adapter
1/2" Adapter
Pressure
Regulator
1/2" Nipple
1/2" Nipple
Flexible Metal
Connector
Front
Rear
Figure 4-14. Regulator Removal
