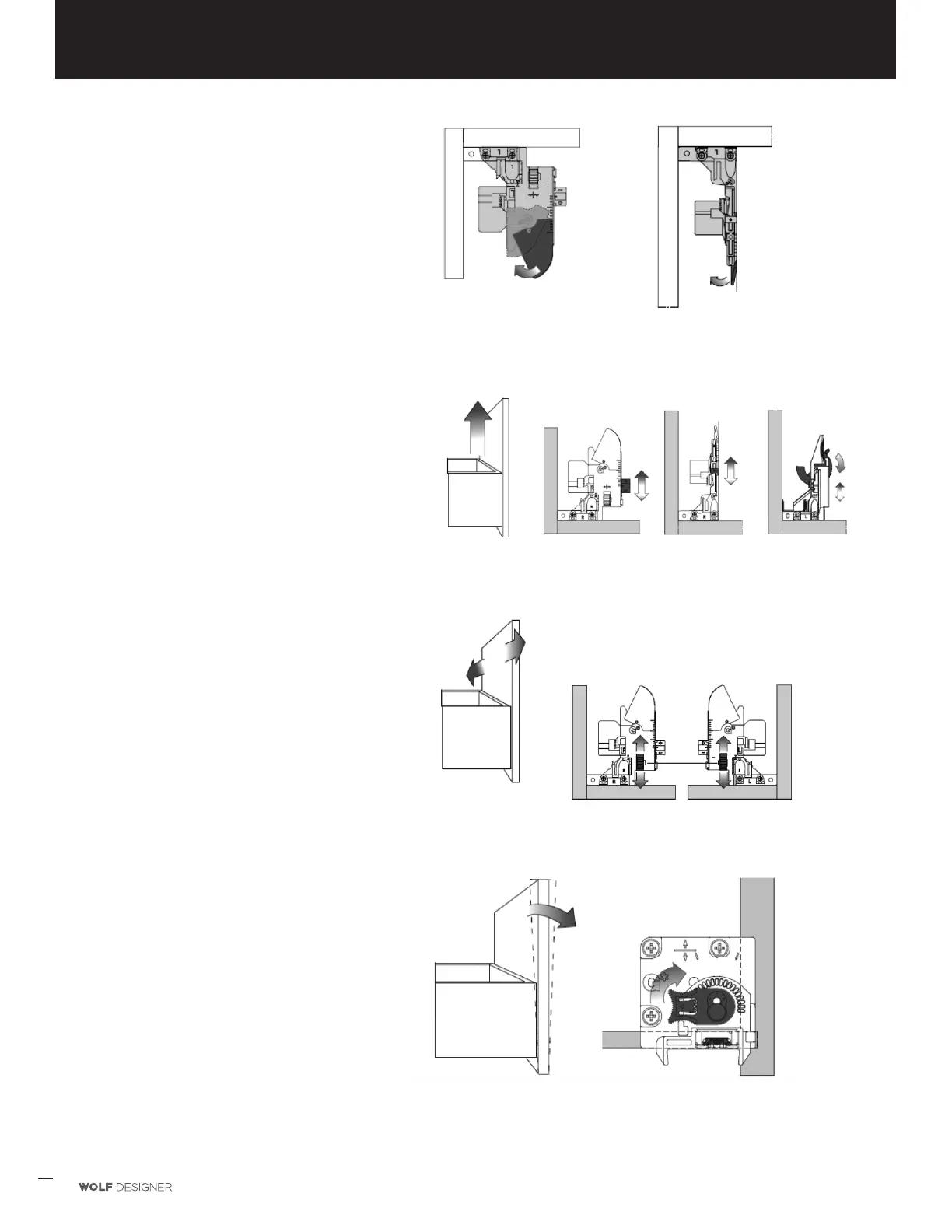

DRAWER ADJUSTMENTS

DISENGAGING THE DRAWER

Pull the drawer out, squeeze the locking

device levers and lift the drawer from the side.

Adjust the drawer height (max. +3.5 mm)

Adjust the drawer side (max. +1.5 mm)

Adjust the drawer tilt (max. +4.0 mm)

Front-locking device

Front-locking device Narrow front-

locking device

1. adjust both wheels in the same direction

For 3-D application only:

2. Disengage drawer

3. Re-attach drawer

Eco front-

locking device

Narrow and Eco front-locking device
