I S T R U Z I O N I P E R L’INS TA LL A Z I O N E
M
odello ICBCT15G
BIANCO
NERO
CAVO DI ALIMENTAZIONE
ROSSO
RIACC.
VALVOLA DEL GAS
BIANCO
NERO
CENTRALE
POSTERIORE
VERDE/GIALLO
NERO
ROSSO
ROSSO
ROSSO
NERO
BIANCO
POSTERIORE
DESTRO
ANTERIORE
DESTRO
ANTERIORE SINISTRO
POSTERIORE
SINISTRO

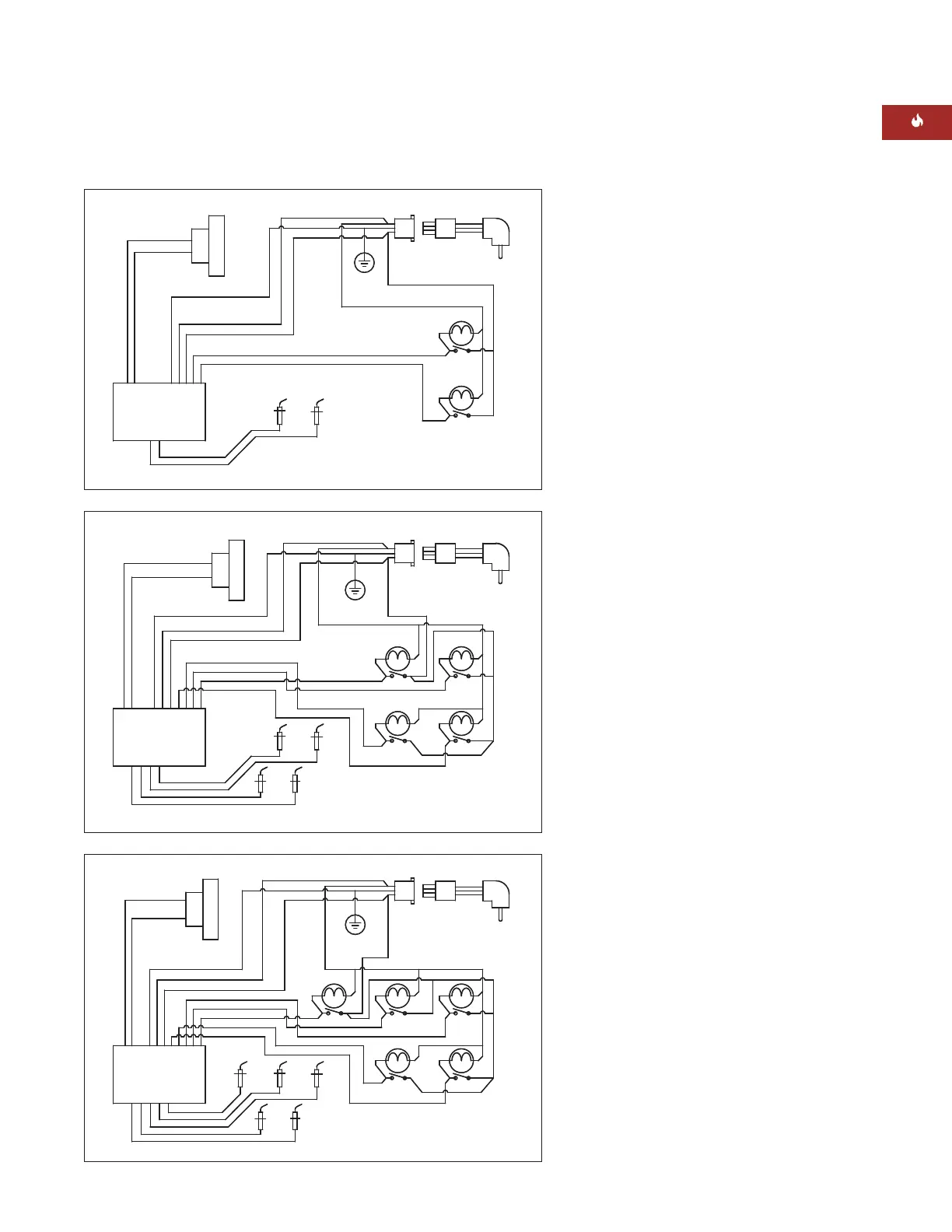

S C H E M A EL E TT R I C O
Modello ICBCT30G
Modello ICBCT36G
