GigantInstallation information

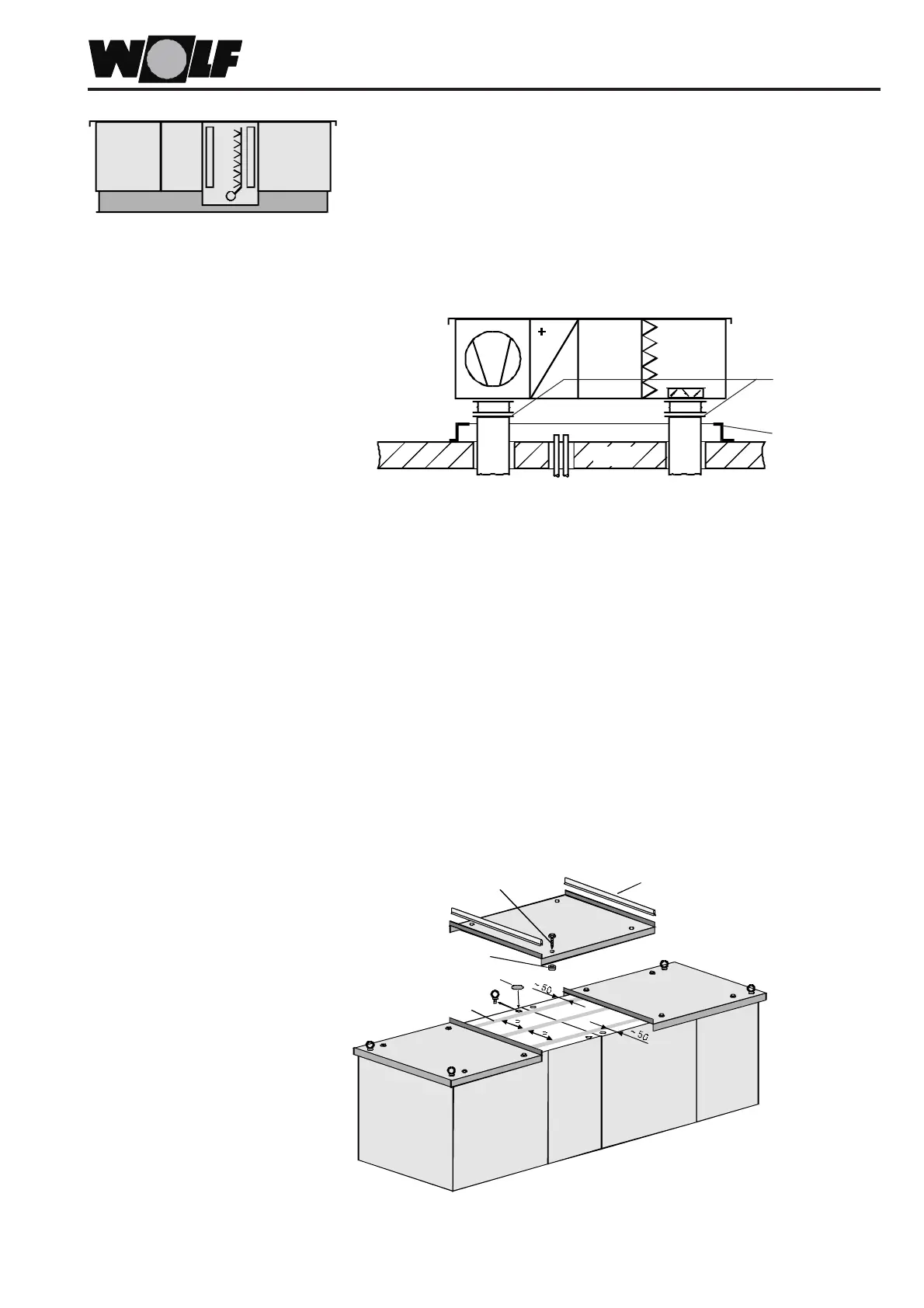

The weatherproof KGW units have a lid made of galvanised steel panels.
On units supplied as a complete unit, all lid sections have been fitted.
In the case of separately supplied units, the lid section of the supplied units
has been pre-installed. Should the separation points of the unit not correspond
with the division of the lid sections, the necessary individual lid section is
supplied as a loose part and must be installed on site after the unit has been
assembled. The required fixing and sealing material is supplied with the unit.
Use a plastic mallet for fitting the cover strip!
Roof
Foam strip
Spacer washer
Distanzscheibe
Self-tapping screw
and sealing washer
Cover strip
For units with washers, a base frame or foundation base must be used for KG
and KGW units, as the washer protrudes from the bottom of the unit. The
required height of the base frame depends on the type of washer and will be
separately specified during the design of the housing.
For units that have the inlet and outlet facing downwards, install short duct
sections before positioning the units onto the foundation.
Short duct sections
Base frame
Roof section
