Wolf MWC24 Planning Information

Planning Information
Convection Microwave Oven
MODEL MWC24
Dimensions in parentheses are in
millimeters unless otherwise specified.
10
29
1
/2" (749)
WARMING DRAWER
OPENING WIDTH
5"
(127)
4"
(102)
E
24"min
(610)
NOTE: Refer to the 36" (914) built-in single oven specifications for electrical location.
24"min
(610)
20
1
/8"min
(511)
20
1
/8"min
(511)
33
3
/8" (854)
MICROWAVE
OPENING WIDTH
34
1
/2" (876 )
36-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
24
1
/16"
(611)
1"min
(25)
18
11
/16"
(475)
24
1
/16"
(611)
1"min
(25)
18
11
/16"
(475)
The width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation, but the rough opening width will remain 29
1
/ 2 " (749).
OVERLAY APPLICATION
*Dimension may increase depending on the size of the drawer front panel.
1
1
/2"min*
(38)
24" min (610)
OPENING DEPTH
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
FLUSH INSET APPLICATION
25" min (635)
CABINET DEPTH
1
1
/2"min*
(38)
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
24" min (610)
CABINET DEPTH

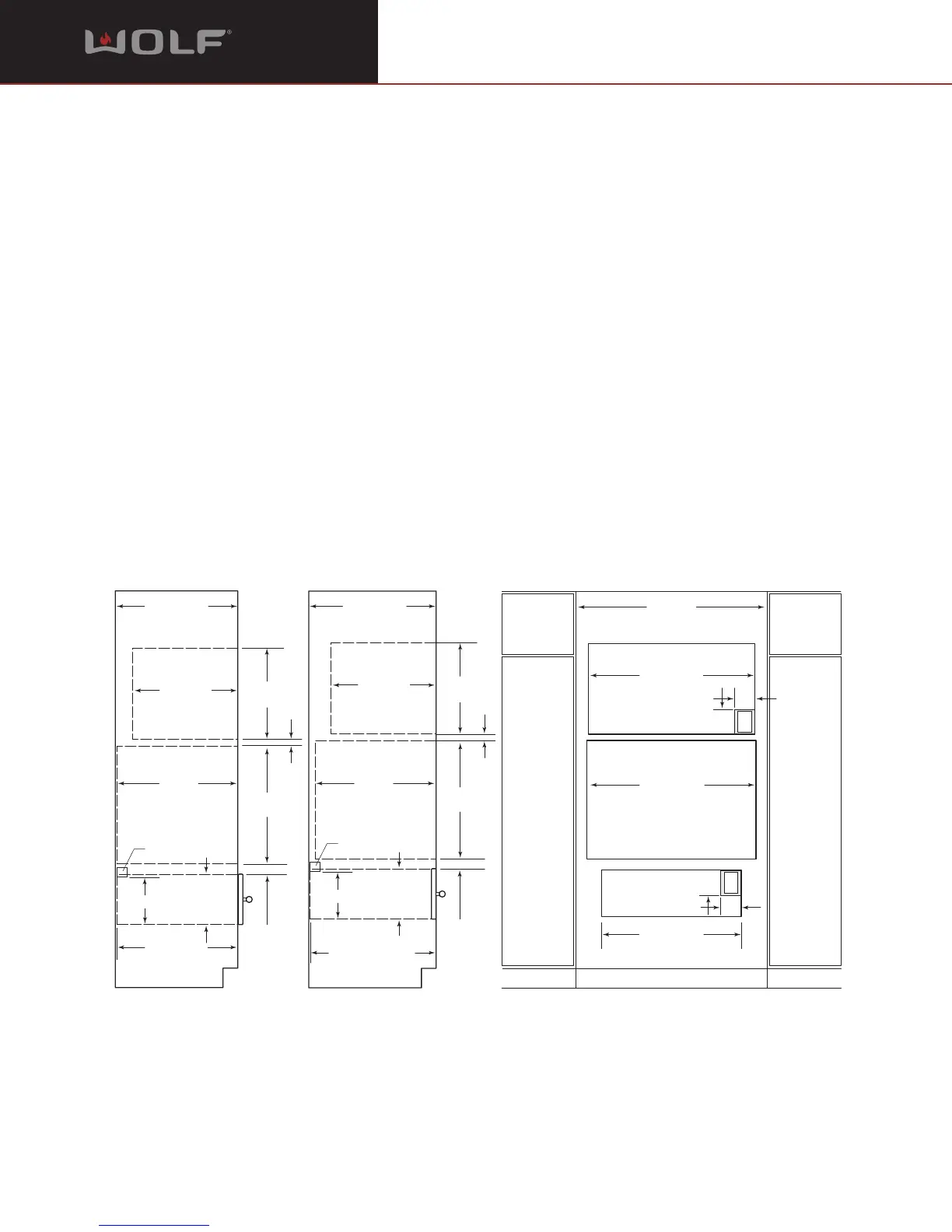

Specifications for a convection microwave with 36" (914) L Series trim installed with a 36" (914) L Series single oven
and warming drawer with integrated drawer front.
COMBINATION INSTALLATION
The Wolf convection microwave oven with 36"
(914) L Series trim kit may be installed in combi-
nation with a 36" (914) L Series single oven and
warming drawer with integrated drawer front.
Refer to the illustration below for specifications.
IMPORTANT NOTE: Keep in mind that the width
of the custom panel for the warming drawer
with integrated drawer front will vary according
to the specific installation.
Wolf recommends using a 39" (991) wide
cabinet for this installation. Also, you need a
minimum 24" (610) of usable cabinet depth for
the oven.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recom-
mended that the electrical supply for the built-in
oven be placed in an adjacent cabinet within
reach of the conduit.
The base platform for the microwave oven must
be able to support 125 lbs (57 kg), the platform
for the oven must be able to support 250 lbs
(113 kg) and the warming drawer platform must
be able to support 200 lbs (91 kg).
An anti-tip block or platform must be installed
to prevent the warming drawer from tipping
forward when the drawer is opened. The
warming drawer must be fully enclosed, top
and bottom.
For electrical requirements and additional
specifications, refer to the built-in ovens and
warming drawer sections of our website,
wolfappliance.com. Also refer to the installation
instructions provided with the microwave trim
kit and warming drawer front for detailed
specifications.

Wolf MWC24 Specifications

General

Brand	Wolf
Model	MWC24
Category	Microwave Oven
Language	English
