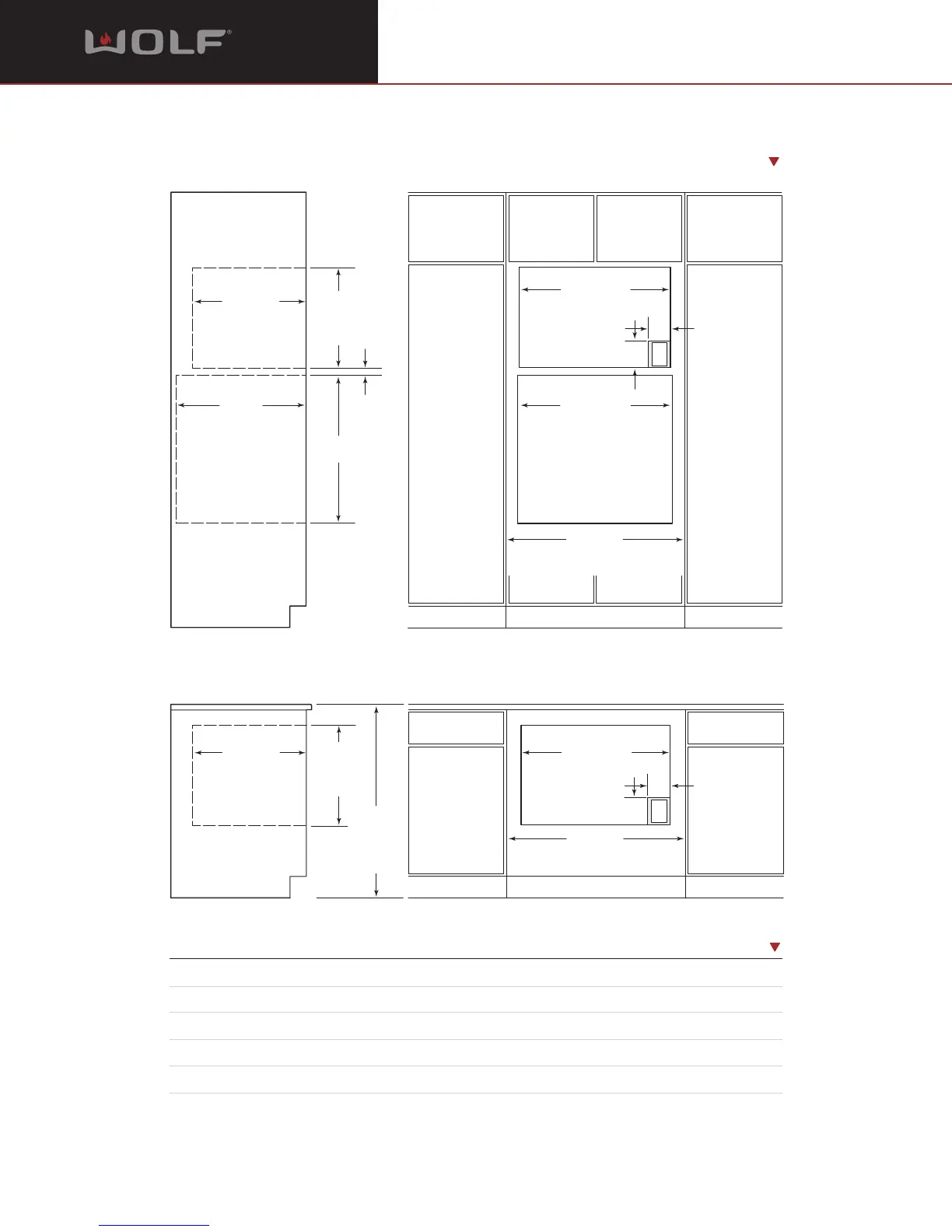

Planning Information
Convection Microwave Oven
MODEL MWC24
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
24"min
(610)
27
3
/16"
(691)
28
1
/2" (724)
5"
(127)
4"
(102)
E
33"
(838)
RECOMMENDED CABINET WIDTH
30"min (762)
27
1
/2" (699)
OPENING WIDTH
20
1
/8"min
(511)
OPENING DEPTH
18
11
/16"
(475)
OPENING
HEIGHT
1"min
(25)
30-INCH OVEN
ROUGH OPENING
INSTALLATION WITH 30" (762) L SERIES TRIM
DIMENSIONS
Recommended Cabinet Width 33" (838)
Minimum Cabinet Width 30" (762)
Rough Opening Width 27
1
/2" (699)
Rough Opening Height 18
11
/16" (475)
Rough Opening Depth (minimum) 20
1
/8" (511)
See Installation Instructions shipped with trim kit for detailed specifications.
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
27
1
/2" (699)
OPENING WIDTH
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5"
(127)
4"
(102)
E
20
1
/8"min
(511)
OPENING DEPTH
18
11
/16"
(475)
OPENING
HEIGHT
