Wolf MWC24 Planning Information

Planning Information
Convection Microwave Oven
MODEL MWC24
Dimensions in parentheses are in
millimeters unless otherwise specified.
8
Specifications for a convection microwave with 30" (762) L Series trim installed with a 30" (762) L Series single oven
and warming drawer with L Series stainless steel drawer front.

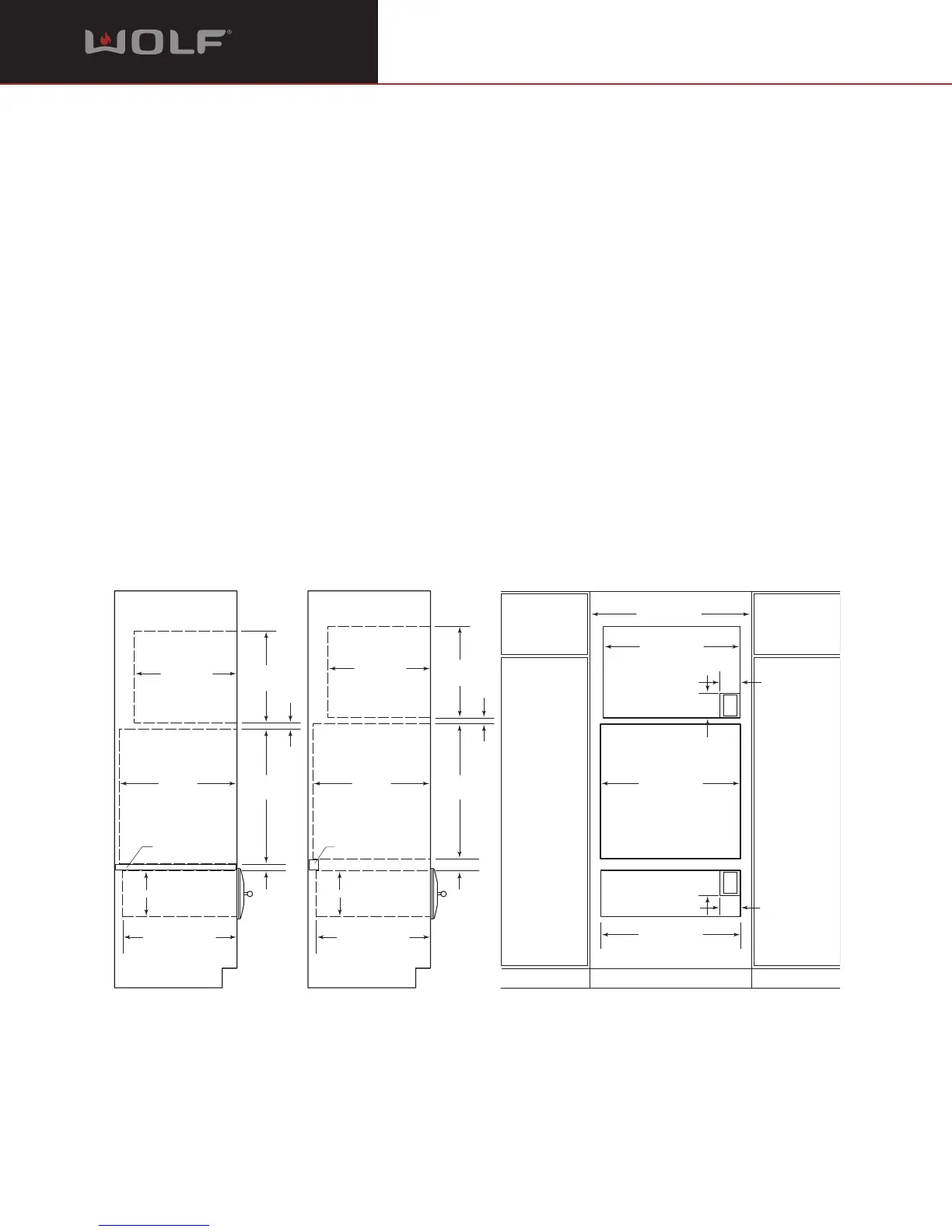

COMBINATION INSTALLATION
The Wolf convection microwave oven with 30"
(762) L Series trim kit may be installed in combi-
nation with a 30" (762) L Series single oven and
warming drawer with L Series stainless steel
drawer front. Refer to the illustration below for
specifications.
Wolf recommends using a 33" (838) wide
cabinet for this installation. Also, you need a
minimum 24" (610) of usable cabinet depth for
the oven.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recom-
mended that the electrical supply for the built-in
oven be placed in an adjacent cabinet within
reach of the conduit.
The base platform for the microwave oven must
be able to support 125 lbs (57 kg), the platform
for the oven must be able to support 250 lbs
(113 kg) and the warming drawer platform must
be able to support 200 lbs (91 kg).
An anti-tip block or platform must be installed
to prevent the warming drawer from tipping
forward when the drawer is opened. The
warming drawer must be fully enclosed, top
and bottom.
For electrical requirements and additional
specifications, refer to the built-in ovens and
warming drawer sections of our website,
wolfappliance.com. Also refer to the installation
instructions provided with the microwave trim
kit and warming drawer front for detailed
specifications.
28
5
/8" (727)
WARMING DRAWER
OPENING WIDTH
28
1
/2" (724)
30-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
2
3
/8"
(60)
27
3
/16"
(691)
24"min
(610)
27
3
/16"
(691)
NOTE: Refer to the 30" (762) built-in single oven specifications for electrical location.
2"(51) x 2" (51)
ANTI-TIP BLOCK
9
1
/8" (232)
OPENING
HEIGHT
23
7
/8"min (606)
OPENING DEPTH
24"min
(610)
9
1
/8" (232)
OPENING
HEIGHT
23
7
/8"min (606)
OPENING DEPTH
ANTI-TIP BLOCK APPLICATIONPLATFORM APPLICATION
7
/8" (22)
PLATFORM
7
/8"
(22)
1"min
(25)
20
1
/8"min
(511)
18
11
/16"
(475)
1"min
(25)
20
1
/8"min
(511)
18
11
/16"
(475)
27
1
/2" (699)
CONVECTION MICROWAVE
OPENING WIDTH
5"
(127)
4"
(102)
E
33" (838) REC CABINET WIDTH
30"min (762)
