ROOF CAP OR REMOTE BLOWER
30" TO 36"
(762 - 914)
COOKING SURFACE
TO BOTTOM OF
VENTILATION HOOD
18" (457)
HEIGHT OF HOOD
ISLAND HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
37" (914)
TO COOKING
SURFACE
34" (864)
DEPTH OF HOOD
10" ROUND DUCT
VERTICAL
DISCHARGE
VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.
*DIMENSIONS FOR TRANSITION INCLUDES FLANGES.
TRANSITION*
14-1/8"W x 9"D TO 10" ROUND
11"H
SOFIT, CABINET OR
DUCT COVER
W OLF P RO S ERIES V ENTILATION
PLANNING
INFORMATION
Wolf Pro Series island hoods have a
vertical discharge location as shown
in the illustration.
Refer to the Pro Series ventilation
charts on pages 81-82 for recommen-
dations and blower options.

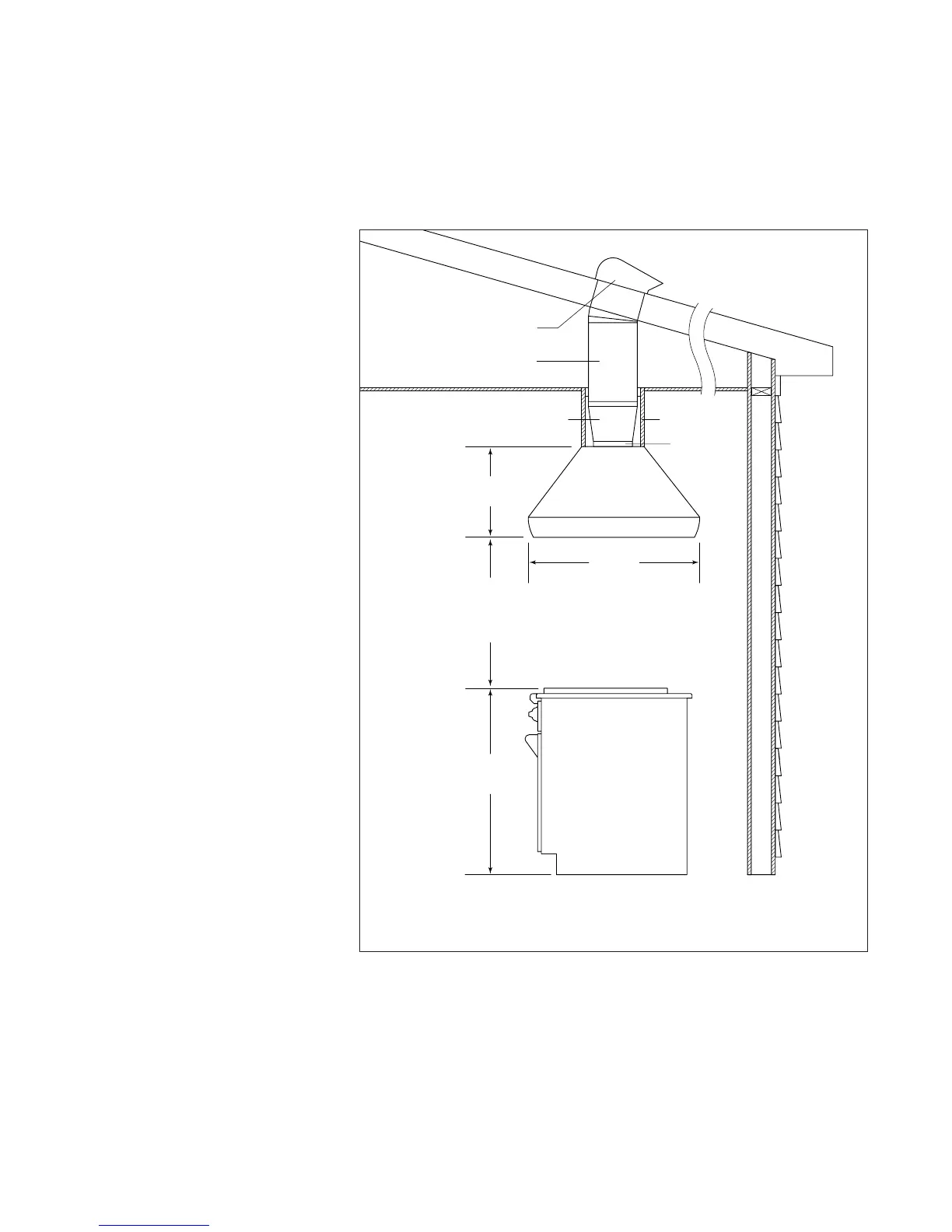

Ducting considerations for Pro Series island hood.
