Wolf SRT366 - Installation; Installation Diagrams and Dimensions

wolfappliance.com | 5

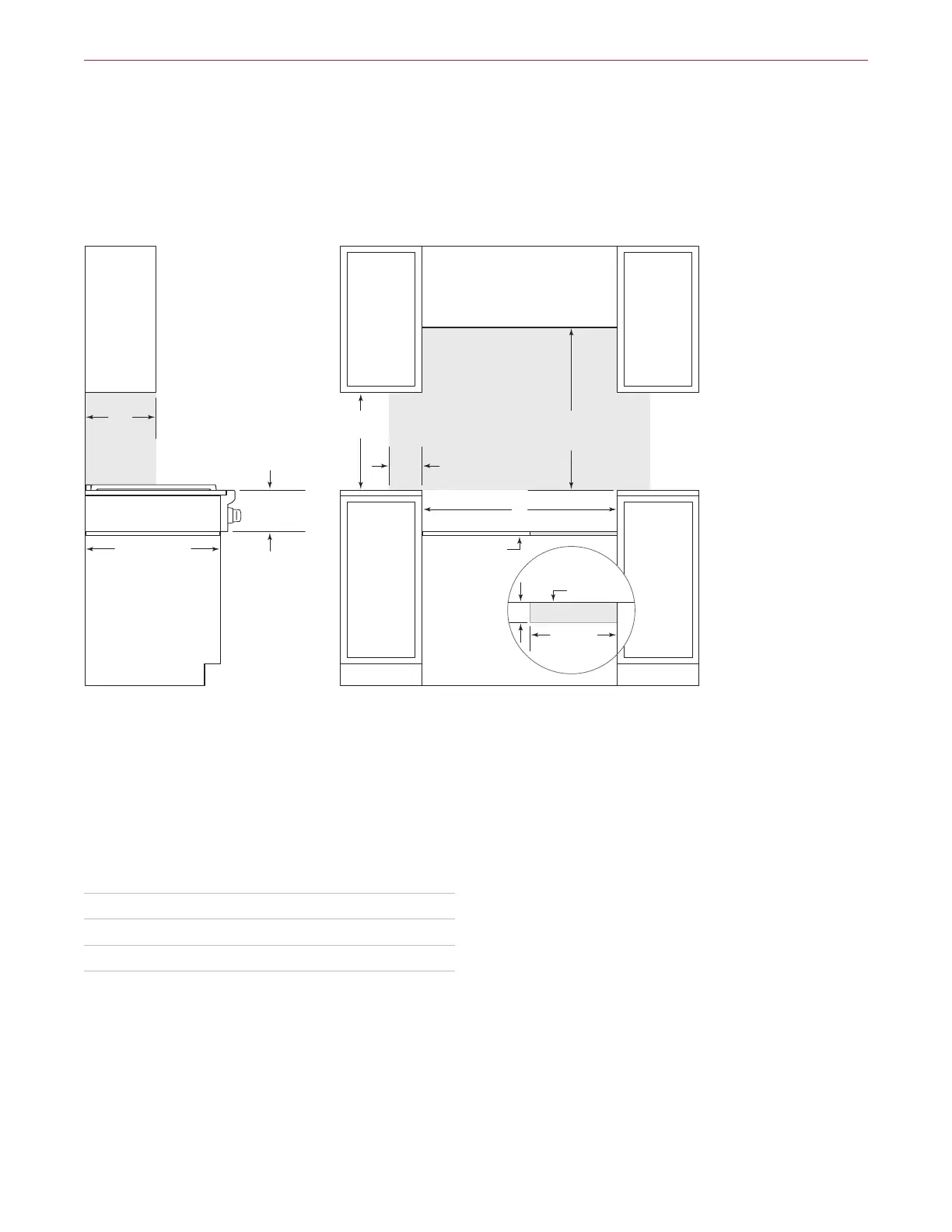

FRONT VIEW
SIDE
VIEW
*W
ithout ventilation hood, 36" (914) minimum clearance countertop to combustible materials, 44" (1118) for charbroiler.
NO
TE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combus
tible materials cannot be located within this area.
El
ectrical and gas supply located through bottom of platform.
Fo
r island installation, 12" (305) minimum clearance back of rangetop to combustible rear wall above countertop.
13"
(330)
18"
(457)
6"
(152)
W
OPENING WIDTH
24" (610) MAX
PLATFORM
30" (762)
TO
36" (914)
TO BOTTOM OF
VENTILATION HOOD*
7
1
/2" (191)
OPENING
HEIGHT
PLATFORM
PLATFORM
TOP VIEW
16" (406)
ELECTRICAL
AND GAS
4"
(102)
E G
BACK WALL
Sealed Burner Rangetop
INSTALLATION
OPENING WIDTH W
30" Model 30" (762)
36" Model 36" (914)
48" Model 48" (1219)
Specifications
