21
WOLF INTEGRATED MODULES
E
114 mm
381 mm
381
mm
51 mm min*
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
340 mm
COOKTOP CUT-OUT
WIDTH
340 mm
COOKTOP CUT-OUT
WIDTH
838 mm RECOMMENDED
CABINET WIDTH
457
mm
NOTE: Application shown allows for installation of two 381 mm modules side-by-side with 838 mm recommended cabinet width. 457 mm
recommended cabinet width for installation of single 381 mm cooktop or module. *Minimum clearance from both side edges of cooktop cut-out
to combustible materials up to 457 mm above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 457 mm above countertop.
489 mm
COOKTOP CUT-OUT
DEPTH
64 mm
min
914 mm
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
330 mm
max
762 mm
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
FRONT OF COUNTERTOP
64 mm
min
489 mm
COOKTOP
CUT-OUT DEPTH
51**
mm

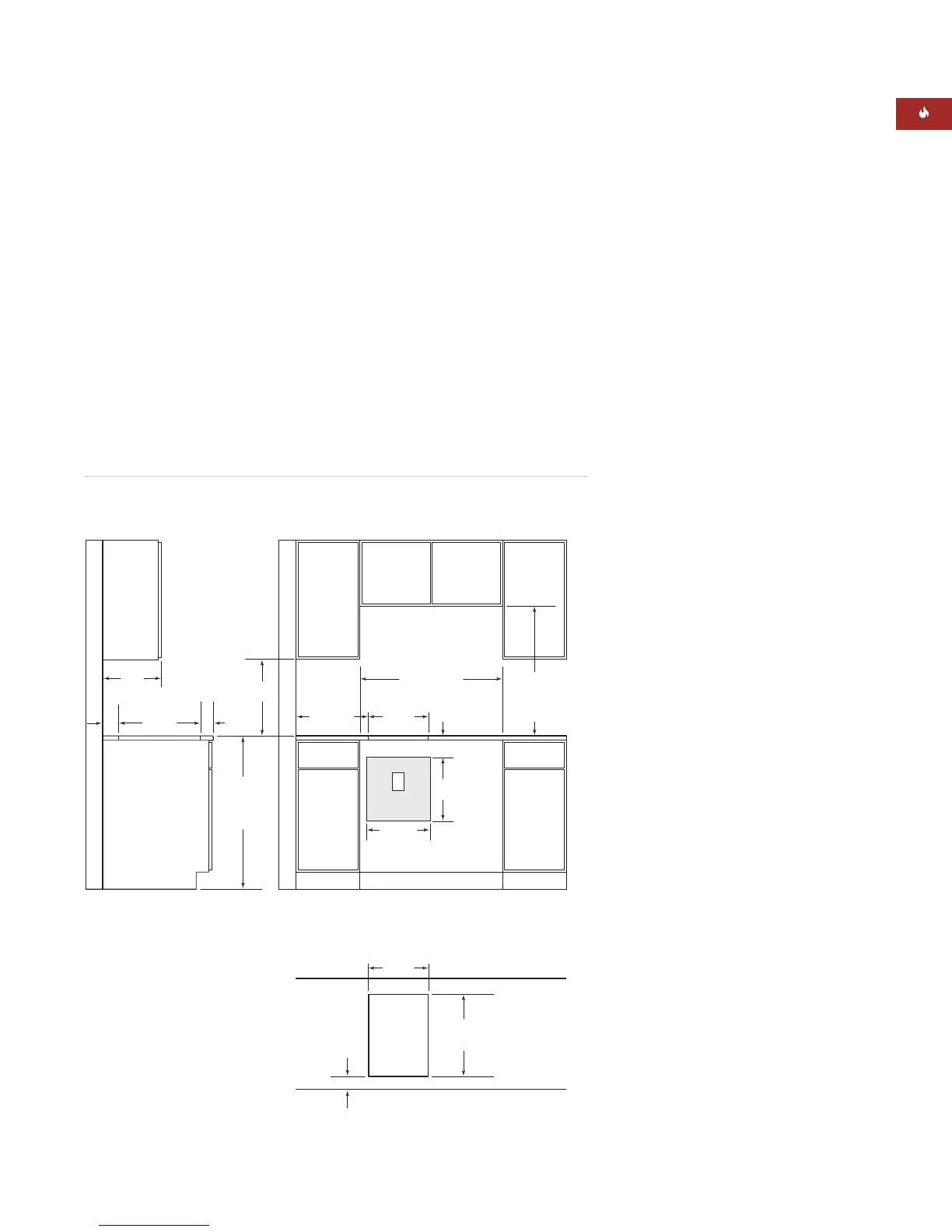

INSTALLATION SPECIFICATIONS
Model CT15I/S
Countertop Cut-Out Dimensions
SPECIFICATIONS
Model CT15I/S
Induction Cooktop
Trim Finish Classic
Overall Width 381 mm
Overall Height 64 mm
Overall Depth 533 mm
Induction Elements Two
Max Element Power 1800 W
(front)
Max Element Power 2200 W
(rear)
Cabinet Depth 578 mm min
Height Clearance 152 mm min
Cut-Out Width* 340 mm
Cut-Out Depth 489 mm
Electrical Supply 220-240 V AC, 50/60 Hz
20 amp dedicated circuit
Conduit 1.2 m flexible 3-wire
Electrical Rating 3.4 kW
Shipping Weight 14 kg
*If the induction cooktop is to be used with
any combination of additional cooktop units or
modules with a filler strip, the cut-out width
increases to 356 mm.
IMPORTANT NOTE: A minimum height clearance
of 152 mm is required. If a shelf is installed
below the unit, a 25 mm gap at the rear of the
cabinet shelf is necessary to allow for proper
ventilation. Failure to do so could result in
decreased performance or product damage.
Unit dimensions may vary to ± 3 mm.
PLANNING INFORMATION
The illustrations provide the overall dimensions
and finished cut-out dimensions that you need
to plan for in your installation. We have mini-
mized the information contained in the illustra-
tions, concentrating on the critical information
you must plan into your installation.
IMPORTANT NOTE: When multiple cooktops or
modules are installed side by side, refer to page
19 for countertop cut-out dimensions.
The induction cooktop can accommodate a
Wolf cooktop hood or downdraft system. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Refer to pages
57–66 for ventilation specifications.
ELECTRICAL REQUIREMENTS
The Wolf induction cooktop requires a separate,
grounded 3-wire 220-240 V AC, 50/60 Hz, 20
amp service with its own circuit breaker. Locate
electrical within the shaded area shown in the
illustration.
You must follow all local codes and ordinances
when installing your service.
INSTALLATION
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
