29
WOLF INTEGRATED MODULES
E
127 mm
G
381 mm
381 mm
381
mm
LOCATION OF GAS SUPPLY
MAY ALSO EXTEND 127 mm ON
FLOOR FROM BACK WALL
178 mm min*
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
356 mm
COOKTOP CUT-OUT
WIDTH
356 mm
COOKTOP CUT-OUT
WIDTH
838 mm RECOMMENDED
CABINET WIDTH
457
mm
NOTE: Application shown allows for installation of two 381 mm modules side-by-side with 838 mm recommended cabinet width. 457 mm
recommended cabinet width for installation of single 381 mm cooktop or module. *Minimum clearance from both side edges of cooktop cut-out
to combustible materials up to 457 mm above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 457 mm above countertop.
489 mm
COOKTOP CUT-OUT
DEPTH
64 mm
min
914 mm
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
330 mm
max
762 mm
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
64**
mm
127
mm
LOCATION OF GAS
SUPPLY MAY ALSO
EXTEND 127 mm
ON FLOOR
FROM BACK WALL
FRONT OF COUNTERTOP
64 mm
min
489 mm
COOKTOP
CUT-OUT DEPTH

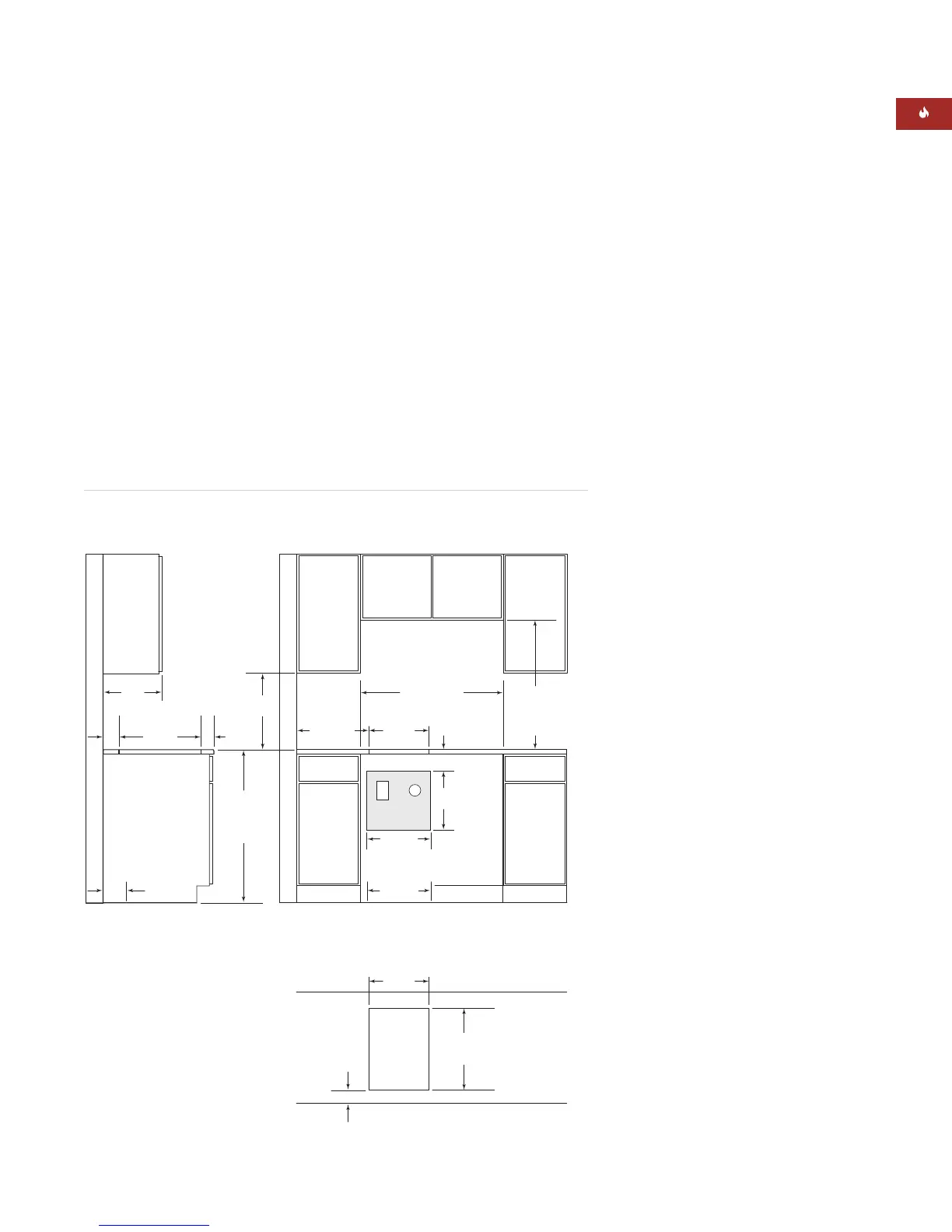

INSTALLATION SPECIFICATIONS
Gas Multi-Function Cooktop
Countertop Cut-Out Dimensions
SPECIFICATIONS
Gas Multi-Function Cooktop
Overall Width 381 mm
Overall Height 127 mm
Overall Depth 533 mm
Burner Rating 5.3 kW
Cabinet Depth 578 mm min
Height Clearance* 127 mm min
Cut-Out Width 356 mm
Cut-Out Depth 489 mm
Electrical Supply 220-240 V AC, 50/60 Hz
15 amp dedicated circuit
Gas Rating 5.3 kW
Shipping Weight 14 kg
*A minimum height clearance of 140 mm is
required between countertop and any combustible
surface directly below the cooktop.
Unit dimensions may vary to ± 3 mm.
PLANNING INFORMATION
The illustrations provide the overall dimensions
and finished cut-out dimensions that you need
to plan for in your installation.
IMPORTANT NOTE: When multiple cooktops or
modules are installed side by side, refer to page
19 for countertop cut-out dimensions.
This cooktop can accommodate a Wolf cooktop
hood or downdraft system. When installing a
ventilation hood, refer to the specific require-
ments of the hood for the minimum dimension to
the countertop. Refer to pages 57–66 for ventila-
tion specifications.
ELECTRICAL | GAS REQUIREMENTS
The Wolf International gas multifunction cooktop
is CB approved and and is manufactured for a
220-240 V AC, 50/60 Hz electrical supply. Locate
electrical within the shaded area shown. You
must follow all local codes and ordinances when
installing your service.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
The gas multi-function cooktop is designed to
operate on natural gas at 12.5 mb or LP (propane)
gas at 25 mb. The minimum line pressure for
natural gas is 17.5 mb and 27.4 mb for LP gas.
The maximum gas supply pressure to the regula-
tor should never exceed 34.9 mb. It is supplied
with an ISO 14 male gas connection at the right
rear corner of the module. The male connector
exits the unit straight down, and you are supplied
with a regulator with two female connectors.
INSTALLATION
Refer to installation
instructions shipped with
each Wolf product for
detailed specifications.
MODEL OPTIONS
Gas Multi-Function Cooktop
Classic / Natural Gas IIM15/S
Classic / LP Gas IIM15/S-LP
