Wolf Sub-Zero ICBIG15/S - Page 33

33
INSTALLATION SPECIFICATIONS
Model ICBWWD30 with Integrated Drawer Front
Undercounter Installation
SPECIFICATIONS
Model ICBWWD30 with
Integrated Drawer Front
Overall Width 746 mm
Overall Height 257 mm
Overall Depth 597 mm
(behind frame)
Interior Capacity 45 L
Min Cabinet Width 838 mm
Min Cabinet Depth
Overlay 610 mm
Flush Inset 635 mm
Min Base Support 91 kg
Opening Width 749 mm
Opening Height 260 mm
Opening Depth* 610 mm
Min Panel Size (W x H)
Overlay 762 mm x 264 mm
Flush Inset 746 mm x 257 mm
Min Panel Thickness 16 mm
Electrical Supply 220-240 V AC, 50/60 Hz
15 or 20 amp circuit
Heating Element 850 W
Shipping Weight 45 kg
*For flush inset application, add thickness of
drawer face to opening depth.
Unit dimensions may vary to ± 3 mm.
WOLF WARMING DRAWERS
INSTALLATION
OPTIONS
Model ICBWWD30 with
integrated drawer front
may be installed above or
below any Wolf built-in
oven, or below an electric
or gas cooktop, provided
the warming drawer is fully
enclosed, top and bottom,
with a minimum base
support of 91 kg. Refer to
the cooktop and oven
sections for additional spec-
ifications. It may also be
installed next to or above
another Model ICBWWD30.
Model ICBWWD30 with
integrated drawer front
may be installed in combina-
tion with a 762 mm or 914
mm single oven.
Refer to the installation
instructions provided for
detailed specifications.
These instructions can also
be found on our website,
wolfappliance.com.

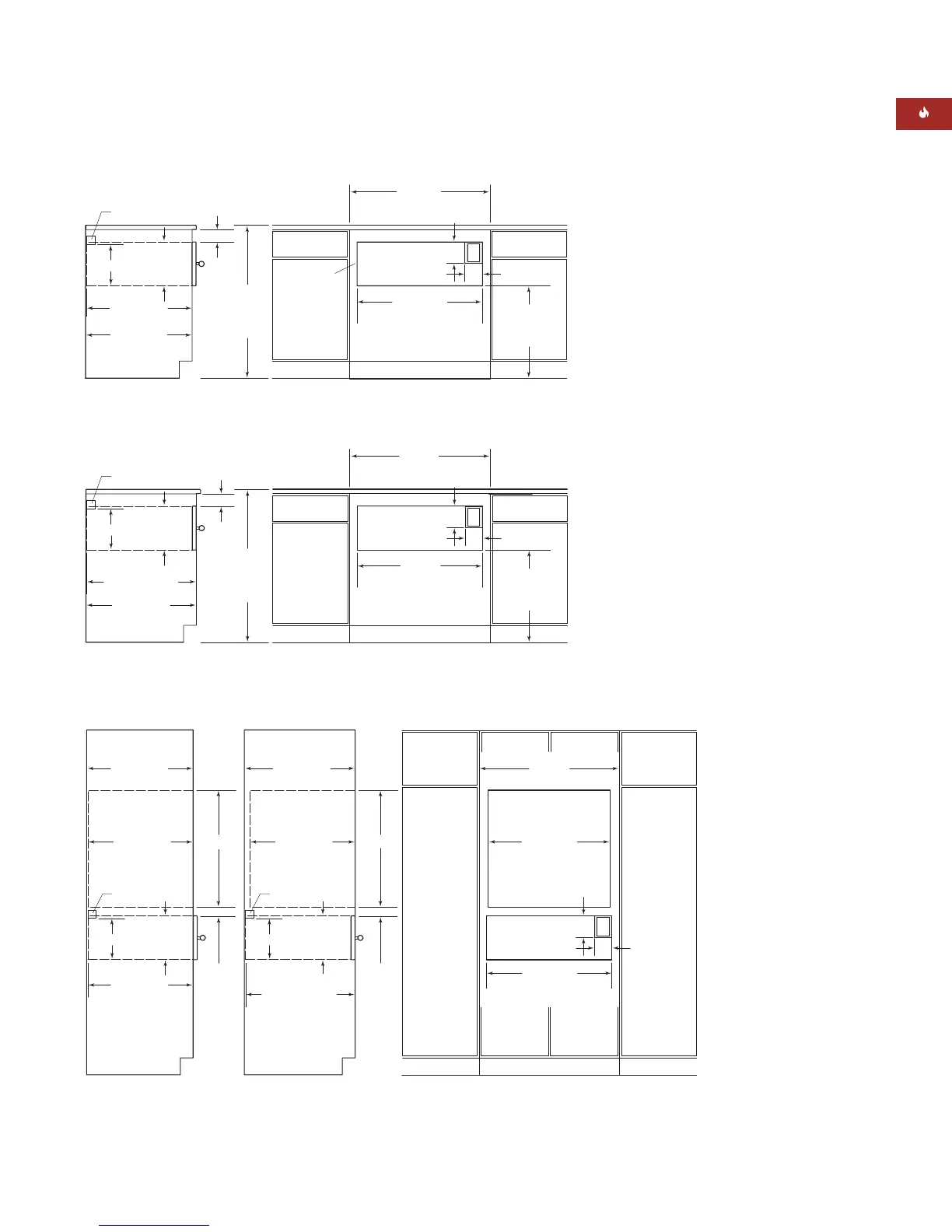

635 mm min
CABINET DEPTH
749 mm
OPENING WIDTH
E
127
mm
102 mm
838 mm
MINIMUM CABINET WIDTH
914 mm
STANDARD
FLOOR TO
COUNTER
HEIGHT
127 mm min
BOTTOM
OF OPENING
TO FLOOR
*Allow enough room for placement of anti-tip block.
610 mm + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
DIMENSION
WILL VARY*
260 mm
OPENING
HEIGHT
251 mm
51 mm x 51 mm
ANTI-TIP BLOCK
749 mm
OPENING WIDTH
E
127
mm
102 mm
838 mm
RECOMMENDED CABINET WIDTH
762 mm min
914 mm
STANDARD
FLOOR TO
COUNTER
HEIGHT
127 mm min
BOTTOM
OF OPENING
TO FLOOR
610 mm min
CABINET DEPTH
610 mm min
OPENING DEPTH
ALLOW FOR
OVERLAP OF
DECORATIVE
DRAWER FACE
ON ALL SIDES**
DIMENSION
WILL VARY*
*Allow enough room for placement of anti-tip block and drawer face overlap.
**Overlap of decorative drawer face will vary depending on the size of the custom panel.
260 mm
OPENING
HEIGHT
251 mm
51 mm x 51 mm
ANTI-TIP BLOCK
NOTE: Refer to the built-in 762 mm single oven specifications for electrical location.
749 mm
WARMING DRAWER
OPENING WIDTH
724 mm
762 mm OVEN
OPENING WIDTH
838 mm
CABINET WIDTH
E
127
mm
102 mm
OVERLAY APPLICATION
691 mm
610 mm min
610 mm min
OPENING DEPTH
610 mm min
CABINET DEPTH
38 mm
min*
260 mm
OPENING
HEIGHT
251 mm
51 mm x 51 mm
ANTI-TIP BLOCK
FLUSH INSET APPLICATION
691 mm
610 mm min
610 mm + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
635 mm min
CABINET DEPTH
38 mm
min*
260 mm
OPENING
HEIGHT
251 mm
51 mm x 51 mm
ANTI-TIP BLOCK
*Dimension may increase depending on the size of the drawer front panel.
Installation below 762 mm Built-In Single Oven
Flush Inset Application
Overlay Application
