5. Overview of KLM air handling

and ventilation module

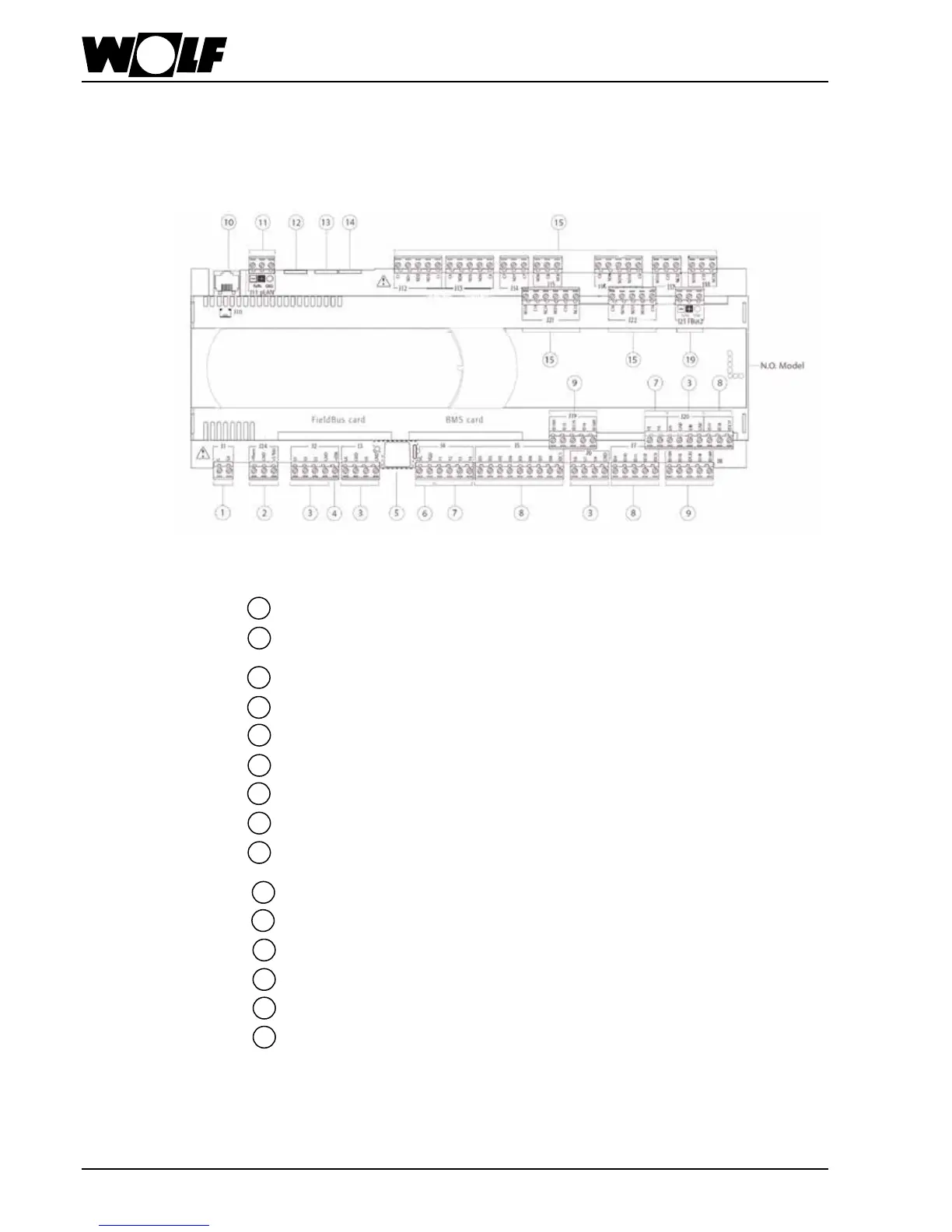

Assignment of KLM air handling and ventilation module

1 Power supply for control unit

2 Supply for additional programming unit (+Vterm); ratiometric 0…5 V

sensor (+5 VREF)

3 Universal inputs/outputs

4 Power supply for active sensors (+VDC)

5 Display

6 Power supply for opto-isolated analogue outputs

7 Analogue outputs

8 ID: digital inputs 24 V AC or 28 .. 36 V DC

9 ID: digital inputs 24 V AC or 28 .. 36 V DC

IDH: digital inputs 230 V AC – 50/60 Hz

10 Plug-in connection for BMK programming unit

11 Plug-in connection for BMK-F remote control (pLAN)

12 Spare

13 Spare

14 Spare

19 Plug-in connection for a KLM-E extension module
