Wolf WWD30 - Stainless Steel Drawer Front Installation with Built-In Oven; Installation with Built-In Oven

Installation Considerations 6
22
3
/4" (578)
28
1
/4" (718)
9"
(229)
10
3
/8"
(264)
21
1
/2"
(546)
C
3
/4"
(19)
3
/4" (19)
A
B
29
7
/8" (759)
OR
35
7
/8" (911)

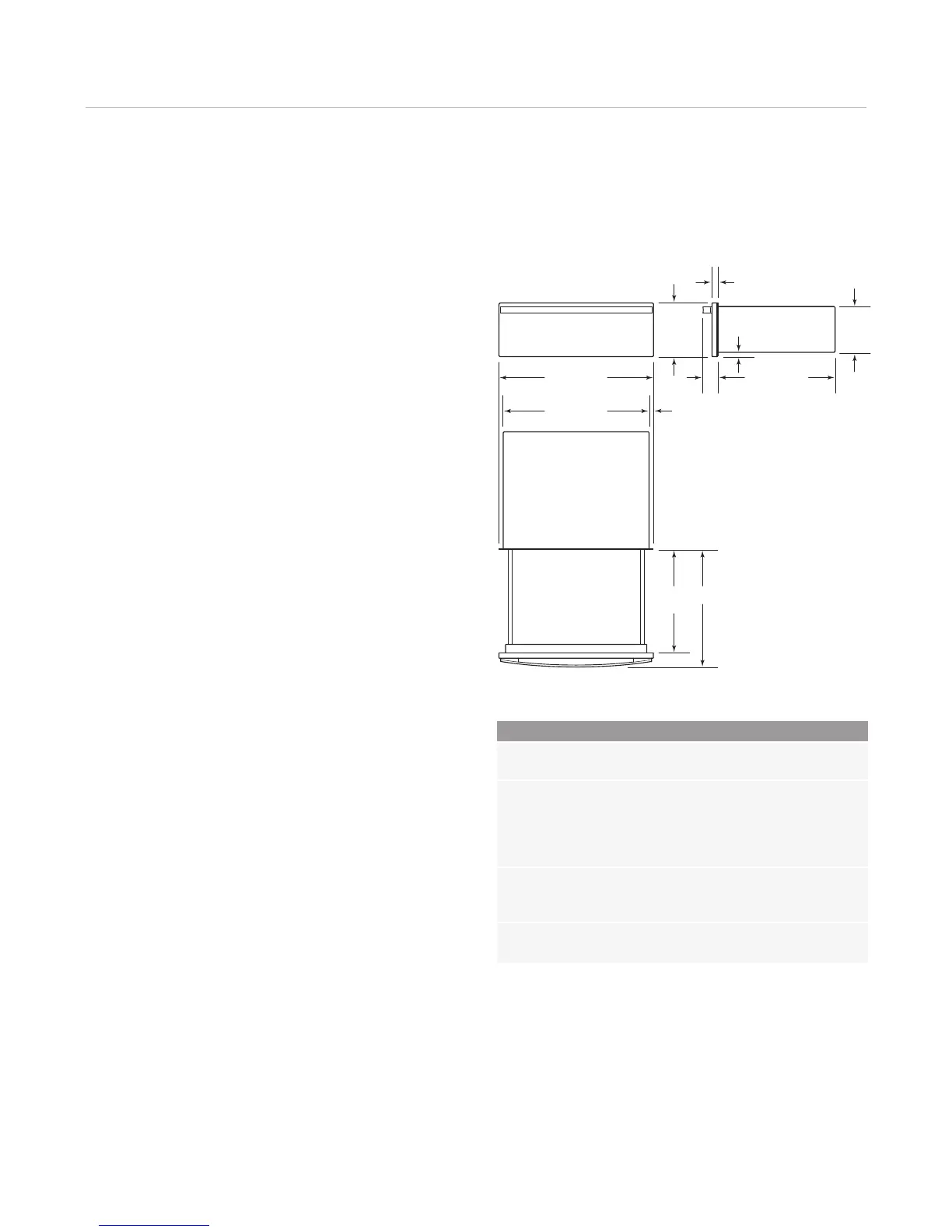

Drawer Front Panel and Handle Dimensions
L SERIES PANEL ABC
Tubular Handle
7
/8" (22) 3
1
/2" (89) 25" (635)
1-INCH THICK PANEL ABC
Tubular Handle 1
1
/8" (29) 3
1
/2" (89) 25" (635)
Curved Handle (framed) 1
1
/8" (29) 2
3
/4" (70) 24
1
/4" (616)
Curved Handle (unframed) 1
1
/8" (29) 2
3
/4" (70) 24
1
/4" (616)
Pro Handle 1
1
/8" (29) 3
1
/2" (89) 25" (635)
2-INCH THICK PANEL ABC
Pro Handle (30-inch wide) 2
1
/8" (54) 4
1
/2" (114) 26" (660)
Pro Handle (36-inch wide) 2
1
/8" (54) 4
1
/2" (114) 26" (660)
INTEGRATED PANEL ABC
Custom Handle
1
/4" (6) NA NA
WWD30 Drawer Front Options
IMPORTANT NOTE: M
odel WWD30 must be installed with
a Wolf stainless steel or integrated drawer front.
When installing a Wolf warming drawer in combination
with an L Series built-in oven, Wolf recommends using the
L Series drawer front with tubular handle. For all other
warming drawer installations, a 1-inch or 2-inch thick
drawer front with handle is recommended. These front
panels are designed on the E Series front panel platform
and are available with a tubular, curved or pro handle.
The 2-inch thick drawer fronts with pro handle are
designed to be installed below a sealed burner rangetop
so the panel aligns properly with the front of the rangetop.
OVERALL DIMENSIONS
Dimensions may vary ±
1
/8" (3).
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are in millimeters unless otherwise specified.
