Wolf WWD30 - Integrated Drawer Front Installation Options; Combination and Side-by-Side Installations

Planning Information
30" (762) Warming Drawer
MODEL WWD30 – INTEGRATED DRAWER FRONT
Dimensions in parentheses are in
millimeters unless otherwise specified.
11

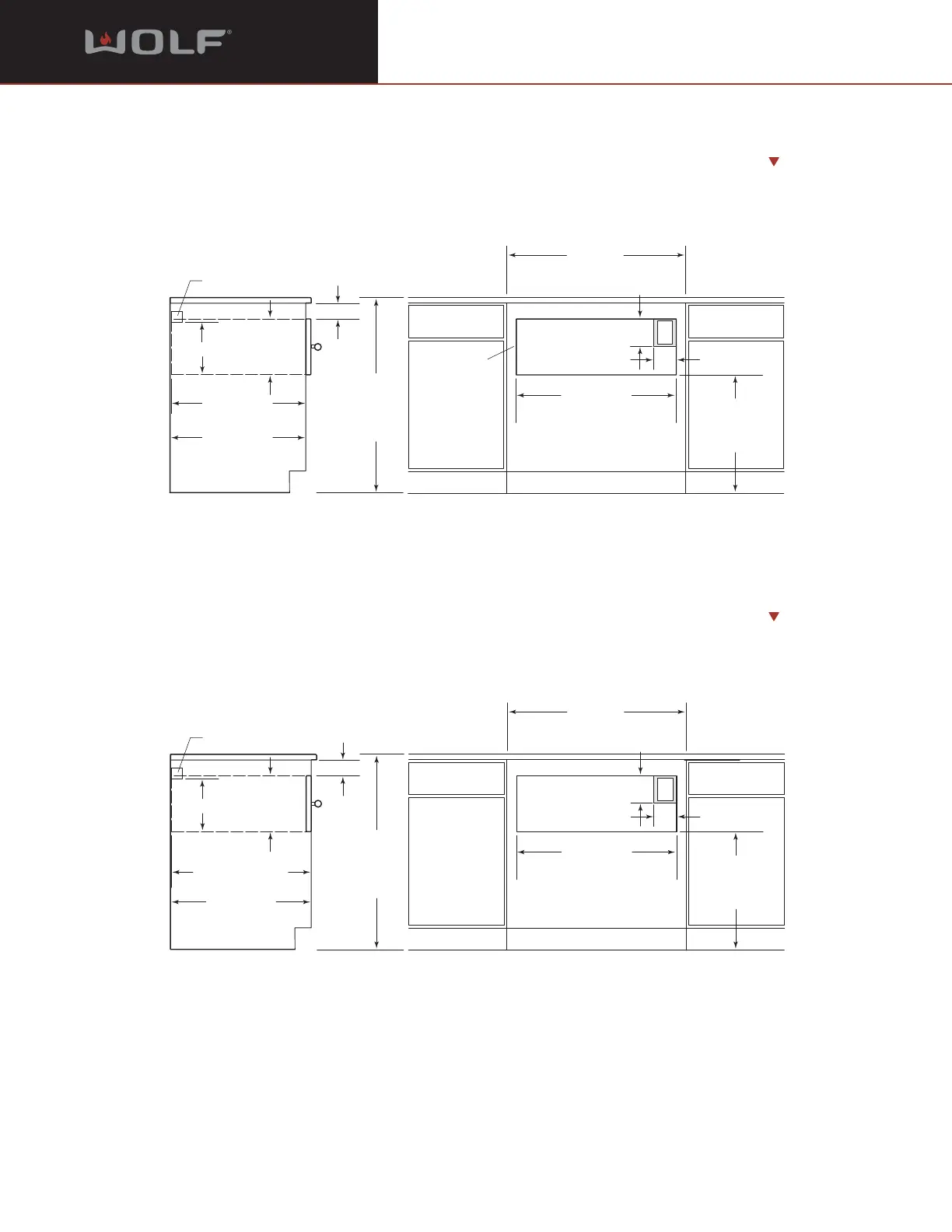

UNDERCOUNTER – INSET APPLICATION
Dimensions shown in the illustrations are for the integrated drawer front application.
25" min (635)
CABINET DEPTH
29
1
/2" (749)
OPENING WIDTH
E
5"
(127)
4"
(102)
33" (838)
MINIMUM CABINET WIDTH
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5" min (127)
BOTTOM
OF OPENING
TO FLOOR
*Allow enough room for placement of anti-tip block.
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
DIMENSION
WILL VARY*
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
29
1
/2" (749)
OPENING WIDTH
E
5"
(127)
4"
(102)
33" (838)
RECOMMENDED CABINET WIDTH
30" min (762)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5" min (127)
BOTTOM
OF OPENING
TO FLOOR
24" min (610)
CABINET DEPTH
24" min (610)
OPENING DEPTH
ALLOW FOR
OVERLAP OF
DECORATIVE
DRAWER FACE
ON ALL SIDES**
DIMENSION
WILL VARY*
*Allow enough room for placement of anti-tip block and drawer face overlap.
**Overlap of decorative drawer face will vary depending on the size of the custom panel.
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
UNDERCOUNTER – OVERLAY APPLICATION
