INTRODUCTION
• PLEASE NOTE: Do read all safety & other instructions that have come with the Master cut 2500 and with the power tools you use
for work. Failing to observe the safety & other instructions may cause electric shocks, fire and/or severe injuries.
• Do keep the operating instructions for future reference in a safe place.
TECHNICAL DATA
dimensions (put up for use): 1185 x 757 x 863 mm (width x depth x height)
dimensions (folded up): 1085 x 757 x 213 mm
worktop: 1035 x 695 mm
maximum height of work piece: circular saw bench 60 mm (guide bar 60 mm)
maximum cutting width with parallel guide: circular saw bench 570 mm
maximum cutting length: guide bar 740 mm
maximum dimension of work piece: 600 x 400 x 65 mm (milling table)
diameter of the clamping holes: 20 mm
pattern of the clamping holes: 135 / 135 mm (horizontal / vertical)
load-bearing capacity: 120 kg
weight: 24 kg
t

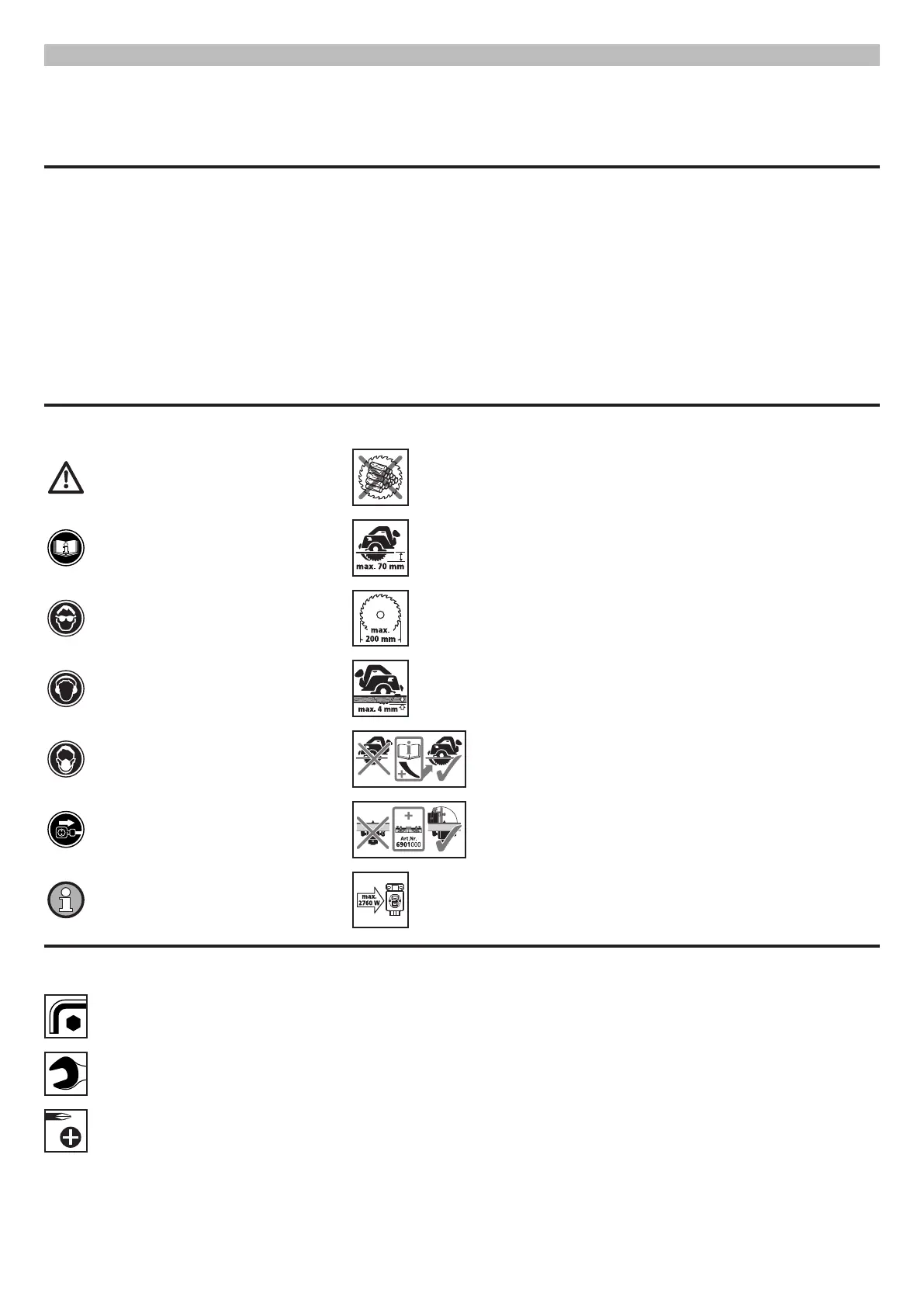

SYMBOLS AND THEIR MEANING
Do not use the machine for cutting firewood.
Use only hand circular saws with a maximum cutting depth of 70 mm.
Use only saw blades with a maximum diameter of 200 mm
for your hand circular saw.
Set the cutting depth of your hand circular saw before every cut in such
a way that the saw blade does not protrude more than 4 mm from
the work piece.
Use only machines with a maximum output of 2760 W.
Use only hand circular saws with a riving knife.
Use as a milling table only in conjunction with the parallel
milling guide (art. no. 6901000).
Warning against a general danger
Read the instructions!
Goggles must be worn.
Hearing protection must be worn.
Pull the plug.
General information
Dust mask must be worn.
42
ASSEMBLY TOOLS
1 allen wrench: A/F 5
(included in scope of delivery)
1 screwdriver: PH 1
(not included in scope of delivery)
1 hexagon wrench: SW 10
(not included in scope of delivery)
