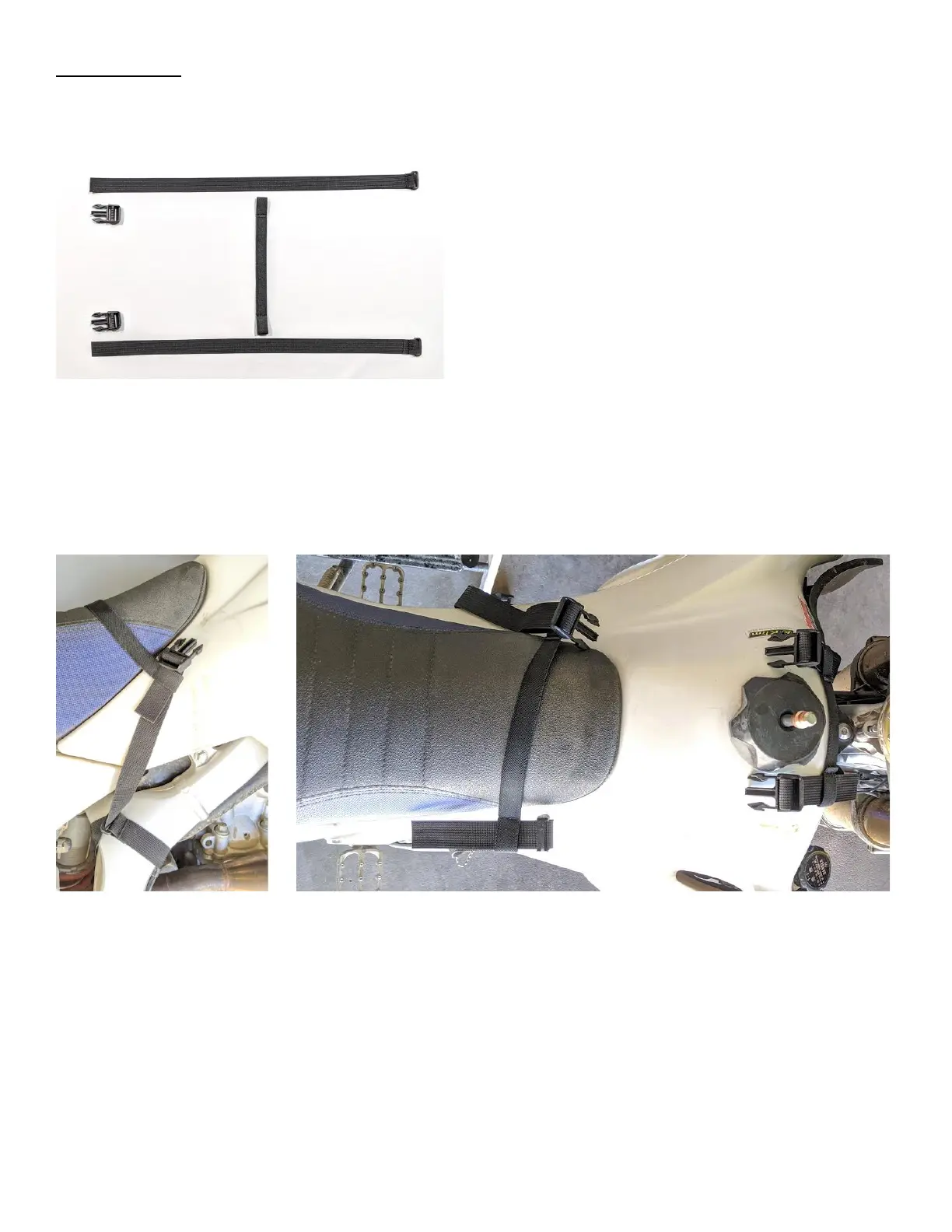

3-Rear Harness FIG6
The rear harness: 2-23”x1” Mounting straps, 1-Long elastic keeper, 2-1” male buckles.
4-Separate all pieces
FIG6
5-Thread the cut end of the rear mounting strap around each of the frame tubes, on both sides of the motorcycle.
Thread as close to the lower edge of the side panel as possible.
6-Thread the cut end through the rectangle sewn at the opposite end and pull tight to secure the webbing around
the frame. Repeat for opposite side. FIG7
7-Thread the cut ends of the rear mounting straps through the openings on each end of the long elastic keeper,
and then, thread on the 1” male buckle. Repeat for opposite side FIG7&8
FIG7 FIG8 Top view Front and Rear Mounting Harnesses
Use the elastic keepers! (On most Enduro/dual sport bikes when removing the bag from the bike the keeper will
keep the mounting straps from melting on the exhaust header pipe).
** Hint (For a really clean look, you can place the keeper between the seat and the gas tank, however, you may
have to remove the seat to do this).
8- Place the Tank Bag or Base on the tongue of the seat just behind the gas cap. By placing the bag behind the
gas cap, you will not have to remove to fill up.
9- Connect the front and rear harnesses to your Tank Bag. Tighten snug.
**Helpful hint: If your straps are too long, they can be cut to length. Leave at least 4 to 6 inches of webbing to
adjust. (If you cut too much off no worries as this is a replaceable item in our accessories. #TB-A101)
If you have any questions, please email at sales@wolfmanluggage.com.
