2
Operating mode: Continuous operation
Type of protection against electric shock: Class II equipment
Degree of protection against electric shock: Type BF applied part
Applied part of the equipment: handpiece and scalling tip
Degree of protection against harmful ingress of water: Ordinary equipment
Protection degree against water (used on the foot switch): IPX1
Degree of safety of application in the presence of a Flammable Anaesthetic
Mixture with air or with Oxygen or Nitrous Oxide: Equipment not suitable for
being used in the presence of a ammable anaesthetic mixture with air or with
oxygen or nitrous oxide.
1.4 Installation of the main components
Sketch map for installation and connectiom.

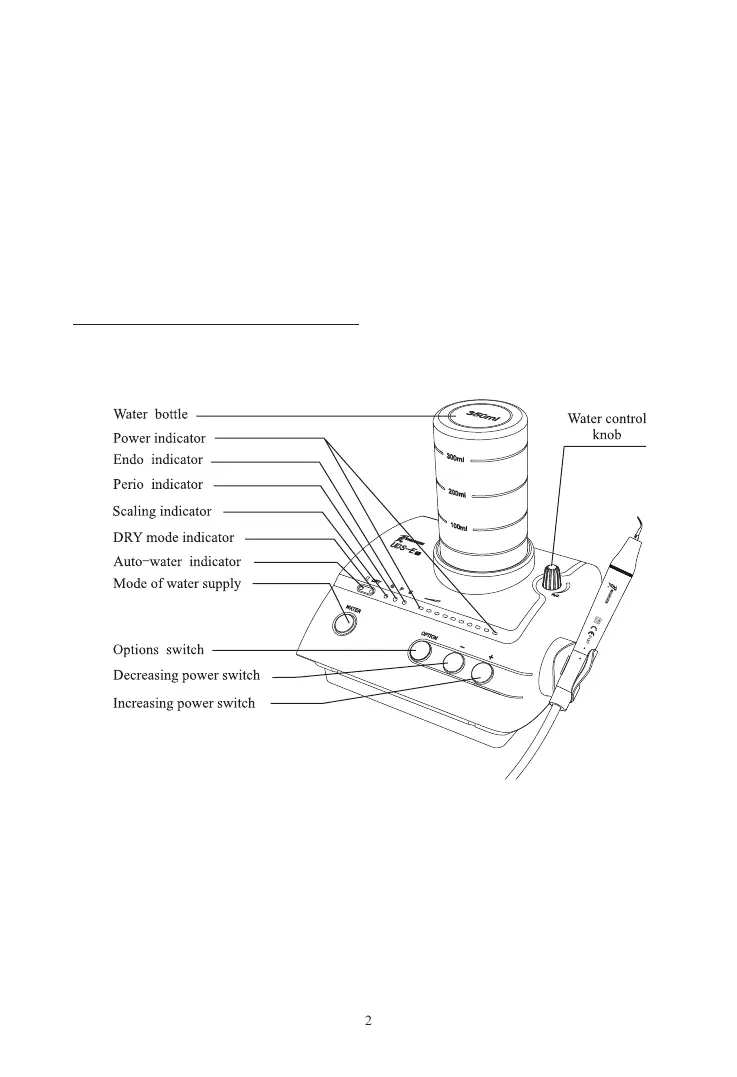

1.4.1 The front and back sketch map of the main unit
HW-5L
Figure 1
