22 Service
51210 (1/1/2016)
6. Tighten bolts on chipping anvil to 75 lbs-ft. and bolt
rotor access cover closed.
If the chipping anvil edge is damaged or worn
unevenly, remove the three bolts holding the anvil and
use one of the other three edges. Adjust for correct
measurement.
LUBRICATION
NOTE: Do not over grease bearings. Overfilling
can lead to excessive heat and/or unseating of the
seals. Add grease slowly and under light pressure.
Whenever possible, rotate bearing slowly while
lubricating.
Lubricate the machine periodically with a lithium based
grease. Extreme working conditions will require more
frequent greasing.
Grease the following points every 50 to 100 hours of
operating time:
●
Two bearings on the rotor shaft.
●
Two bearings on the bottom jack shaft.
●
One fitting on the feed roller assembly.
●
One fitting on the discharge chute.

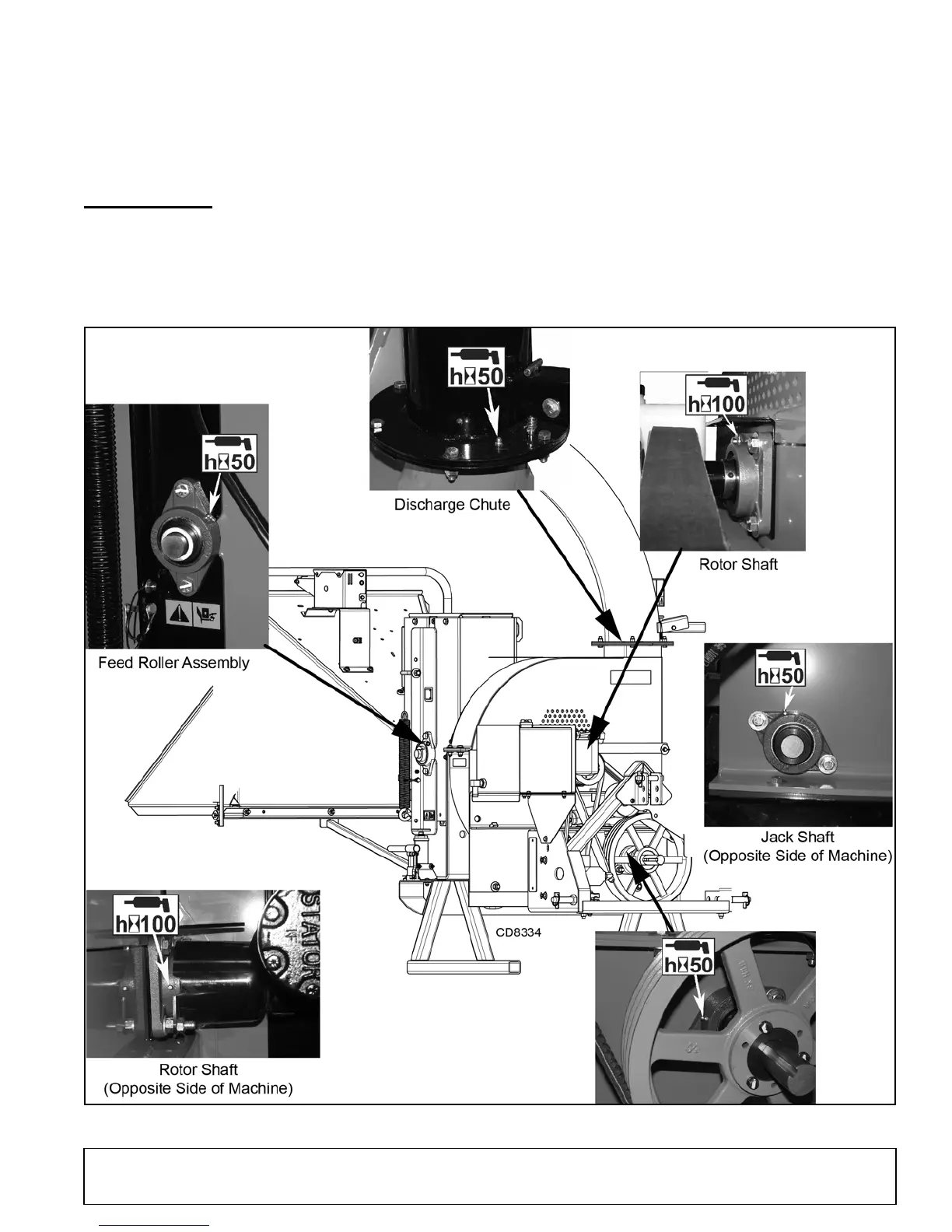

Figure 8. Chipper Lubrication Points
