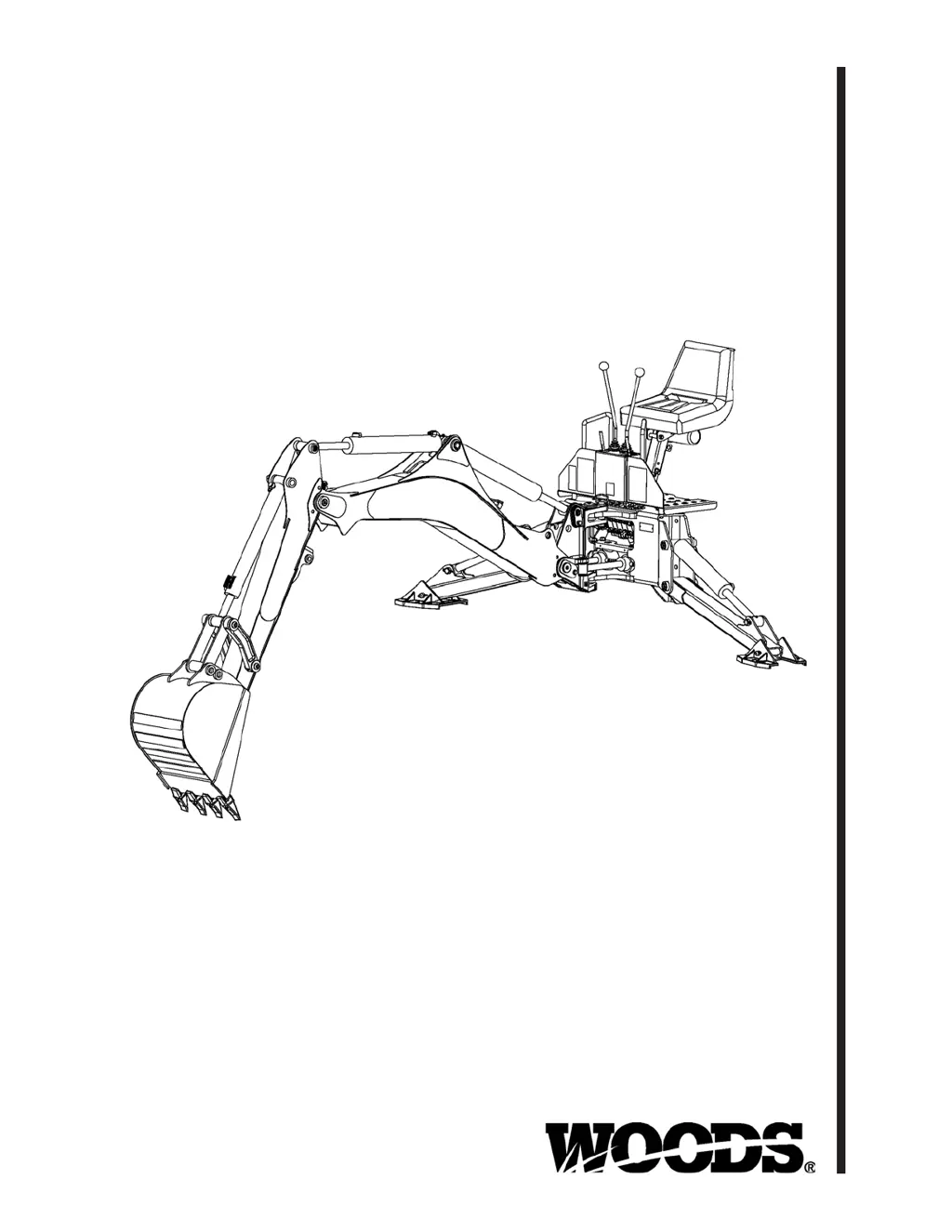

Woods BH90-X - User Manual

Questions and Answers

R
Rachel AllenAug 3, 2025
Why is the oil heating up in my Woods Tractor Accessories?
- J
  Jesse MorrisAug 3, 2025
  If the oil in your Woods Tractor Accessories is heating up, it could be due to several reasons. The oil supply might be low, so you should fill the reservoir. Alternatively, the oil could be contaminated, in which case you should drain the reservoir, change the filter, and refill it with clean oil. The relief valve setting may also be incorrect, so ensure it is set to the correct pressure. Lastly, operating the pump too fast can cause the oil to heat up, so avoid exceeding 540 rpm PTO speed.
A
amanda01Aug 8, 2025
What to do if there is foaming oil in Woods Tractor Accessories?
- J
  Joseph DiazAug 8, 2025
  If you notice foaming oil in your Woods Tractor Accessories, several factors could be at play. The oil level might be too low, so start by filling the reservoir. Air could be leaking into the suction line; try tightening the fittings. The type of oil could also be the culprit, so drain and refill the reservoir with non-foaming oil. Finally, moisture in the oil can cause foaming. Try to keep the oil temperature below 180° and continue to operate as the oil dries out, or replace the oil and purge the system if foaming is excessive.
A
Alex AndersonAug 12, 2025
How to fix a noisy pump caused by cavitation in Woods Tractor Accessories?
- Q
  qhunterAug 13, 2025
  A noisy pump in your Woods Tractor Accessories, caused by cavitation, can stem from several issues. The oil might be too heavy, requiring a change to the proper viscosity. The oil filter could be plugged, necessitating a replacement. The suction line may be plugged or too small, so clean the line and check for the correct size. Lastly, a kinked suction line can cause this problem, so replace the line if necessary.
W
walshnicoleAug 18, 2025
What to do if the boom drops when activating the lever on Woods Tractor Accessories?
- H
  Heather SalasAug 18, 2025
  If the boom drops when the dipper or bucket cylinder lever is activated while the boom control is in the raised position on your Woods Tractor Accessories, it is likely due to a leaking load check valve. You should clean or replace the check valve assembly.
L
lgravesAug 23, 2025
Why is there jerky operation in my Woods BH90-X Tractor Accessories?
- M
  Monique BurnsAug 23, 2025
  If your Woods Tractor Accessories are operating in a jerky manner, it might be due to hydraulic hoses plumbed incorrectly. To resolve this, check the hydraulic plumbing schematic and correct the hose routing as required.
K
Kenneth MorenoAug 28, 2025
How to fix shaft seal leakage in Woods Tractor Accessories?
- D
  danielsjessicaAug 28, 2025
  If you observe shaft seal leakage in your Woods Tractor Accessories, the cause is likely a worn shaft seal. The solution is to replace the shaft seal.

Summary

Introduction

Specifications

General Information

Safety Rules

INSTALLATION

Hydraulic system installation and checks.

PREPARATION

Pre-operation checks and safety setup.

Operation

Start and Stop Operation

Procedures for starting and stopping the backhoe.

EXCAVATION

Step-by-step guide to starting excavation.

TRANSPORTING

Safety and procedures for transporting the backhoe.

PRE-OPERATION CHECK LIST

Owner's responsibility check list before operation.

Owner Service

LUBRICATION

Points and procedures for lubricating the backhoe.

Troubleshooting

Dealer Service

HYDRAULIC VALVE REPAIR

How to repair hydraulic valves.

Assembly

BACKHOE TO TRACTOR ATTACHMENT

Steps for attaching the backhoe to the tractor.

Dealer Check Lists

PRE-DELIVERY CHECK LIST

Checklist for dealers before delivery.

Parts Index

Hydraulic Cylinder Assemblies

Bucket Cylinder

Assembly details for the bucket cylinder.

Boom & Dipper Cylinder

Assembly details for boom and dipper cylinders.

Stabilizer Cylinder

Assembly details for the stabilizer cylinder.

Swing Cylinder

Assembly details for the swing cylinder.

Bolt Torque Chart

Bolt Size Chart

ABBREVIATIONS

List of common abbreviations used in the manual.

Warranty

Woods BH90-X Specifications

General

Category	Tractor Accessories
Type	Backhoe
Model	BH90-X
Tractor HP Range	30-90 HP
Swing Arc	180 degrees
Operating Pressure	2, 500 PSI
Bucket Sizes Available	12", 16", 24"
Digging Radius	12' 8"
