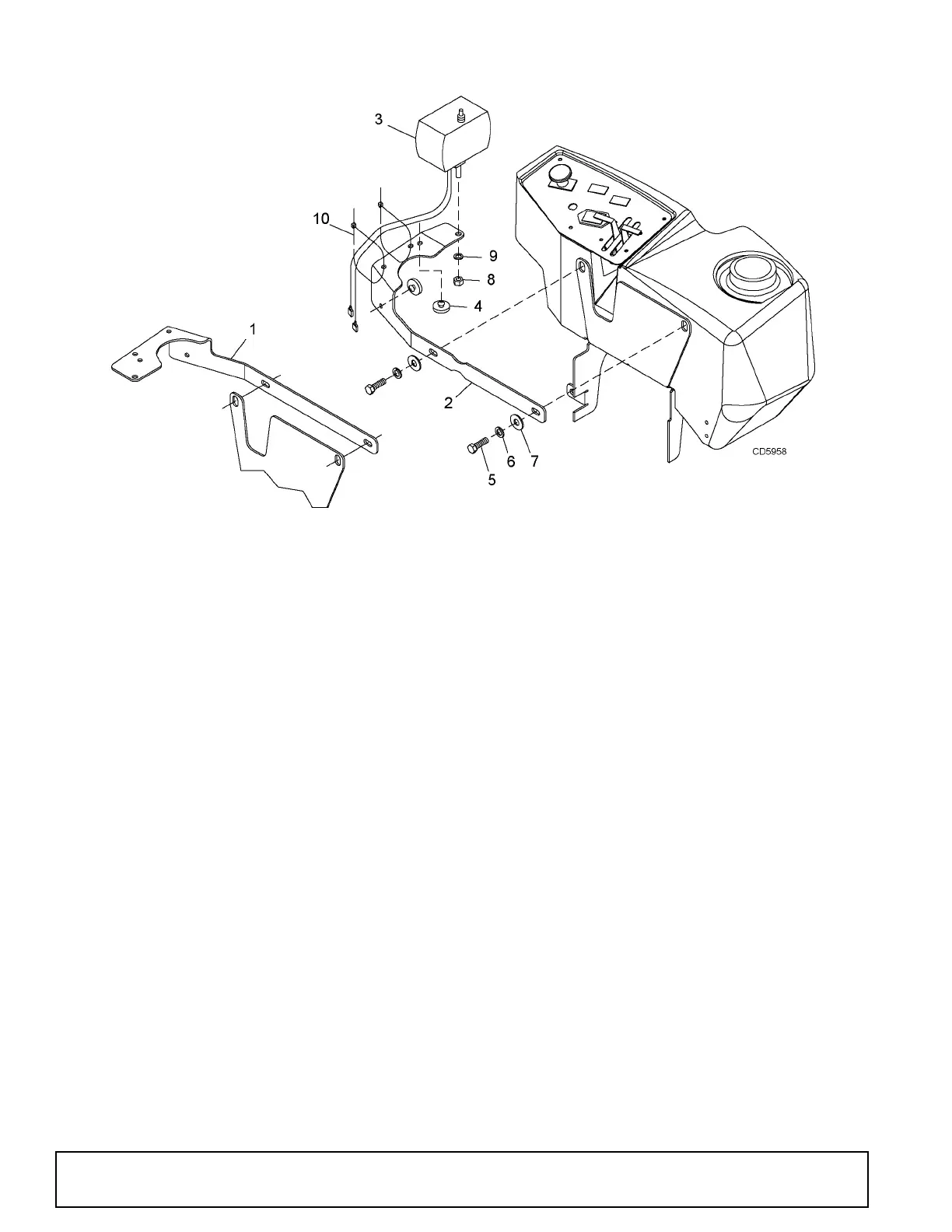

HEADLIGHT KIT (OPTIONAL)
NOTE: Headlight power outlets are located near the
steering pivot blocks.
REF PART QTY DESCRIPTION
W73938 Headlight kit
1 W73937 1 Light bracket - left
2 W73936 1 Light bracket - right
3 W73935 2 Rect. work light with switch
4
W07516000 4 Button bumper
5 6096RP * 4 5/16 NC x 3/4 HHCS
6 2472 * 4 5/16 Lock washer
REF PART QTY DESCRIPTION
7 4378RP * 4 5/16 Flat washer
8 5288 * 2 1/4 NC Hex nut
9 1985RP * 2 1/4 Lock washer
10 -------- * 8 Plastic tie
* Standard hardware, obtain locally
