50 Parts
MAN0988 (11/5/2012)

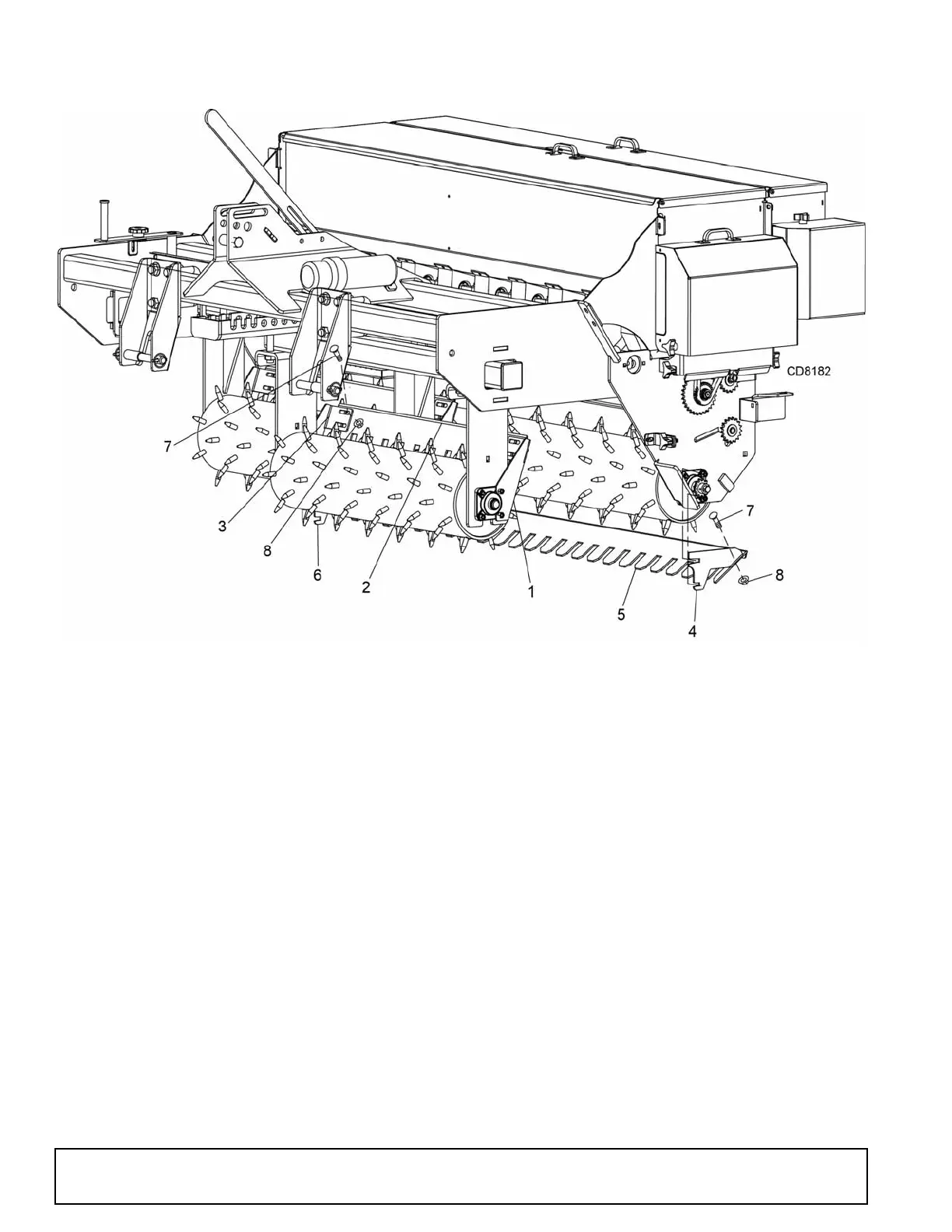

PSS48, PSS60, PSS72, PSS84 SCRAPERS SPIKED ROLLER OPTION
REF PSS48 PSS60 PSS72 PSS84 QTY DESCRIPTION
1 1036465RP 1036465RP 1036465RP 1036465RP 2 Scraper, mount, spiked front, LH
2 103642948RP 103642960RP 103642972RP 103642984RP 2 Scraper, spiked front
3 1036464RP 1036464RP 1036464RP 1036464RP 2 Scraper, mount, spiked front, RH
4 1036455RP 1036455RP 1036455RP 1036455RP 1 Scraper, mount, middle LH
5 103642548RP 103642560RP 103642572RP 103642584RP 1 Scraper, spiked drive roller
6 1036454RP 1036454RP 1036454RP 1036454RP 1 Scraper, mount, middle RH
7 14350* 14350* 14350* 14350* 12 3/8 NC flanged lock nut
8 6697* 6697* 6697* 6697* 12 3/8 NC x 1 carriage bolt GR5
* Standard hardware, obtain locally
(Rev. 4/24/2018)
