Woods RD60 - Page 36

36 Parts
MAN0260 (8/6/2004)

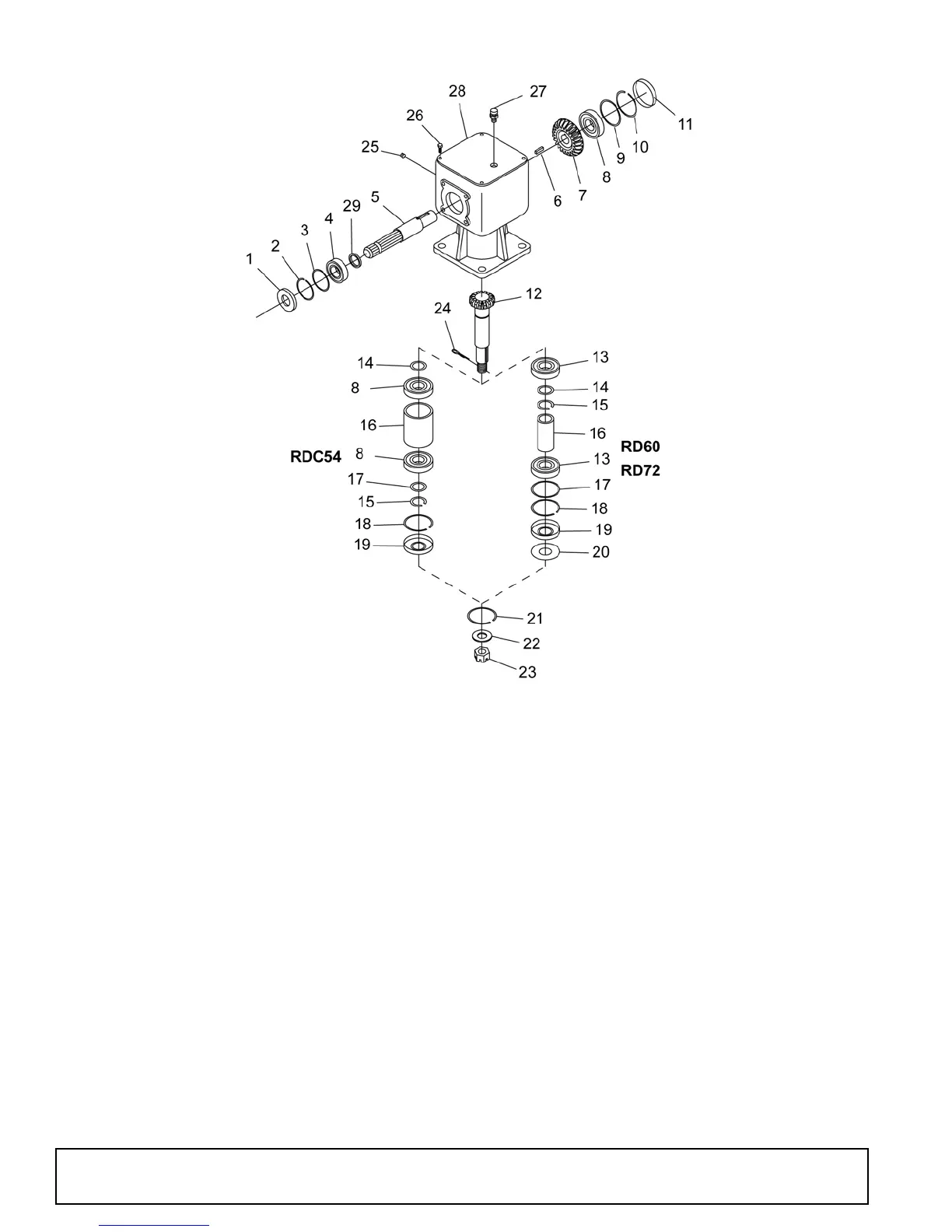

RDC54, RD60 & RD72 GEARBOX ASSEMBLY
REF
RDC54
PART
QTY
RD60 / 72
PART
QTY DESCRIPTION
A 1006649 1006648 Complete gearbox
1 39275 1 39275 1 Seal
2 1007861 1 1007861 1 Snap ring
3 1007865 1 1007865 1 Shim kit
4 51850 1 51850 1 Ball bearing
5 N/S 1 N/S 1 Input shaft
6 20894 1 20894 1 Key 8 x 10 x 30 mm
7 N/S 1 N/S 1 Input gear
8 20890 4 20890 1 Ball bearing
9 1007864 1 1007864 1 Shim kit
10 57466 1 57466 1 Snap ring
11 57374 1 57374 1 Oil cap
12 N/S 1 N/S 1 Output shaft & gear
13 ----- 1 20891 2 Ball bearing
14 1007866 1 1007863 1 Shim kit
15 1007859 1 20895 1 Snap ring
16 1007860 1 20886 1 Spacer
REF
RDC54
PART
QTY
RD60 / 72
PART
QTY DESCRIPTION
17 1007862 1 1007862 1 Shim kit
18 57466 1 39251 1 Snap ring
19 57463 1 20900 1 Seal
20 ----- 1 20888 1 Washer, 1.58 x 3.13 x
.04
21 1007858 1 20897 1 Snap ring
22 20893 1 20893 1 Washer 25 x 44 x 4
mm
23 51946 1 51946 1 Castle nut M24 x 2
24 64803 1* 64803 1* 3/16 x 2 Cotter pin
25 N/S 1* N/S 1* 3/8 Solid plug
26 N/S 4* N/S 4* M10 x 22 mm Cap
screw
27 39325 1 39325 1 Vent plug
28 1007873 1 1007873 1 Cover
29 1007857 1 ----- 1 Spacer
* Standard hardware,
obtain locally
(Rev. 6/10/2005)
