Woods RD8400 User Manual

PN-52886 (4/97)34

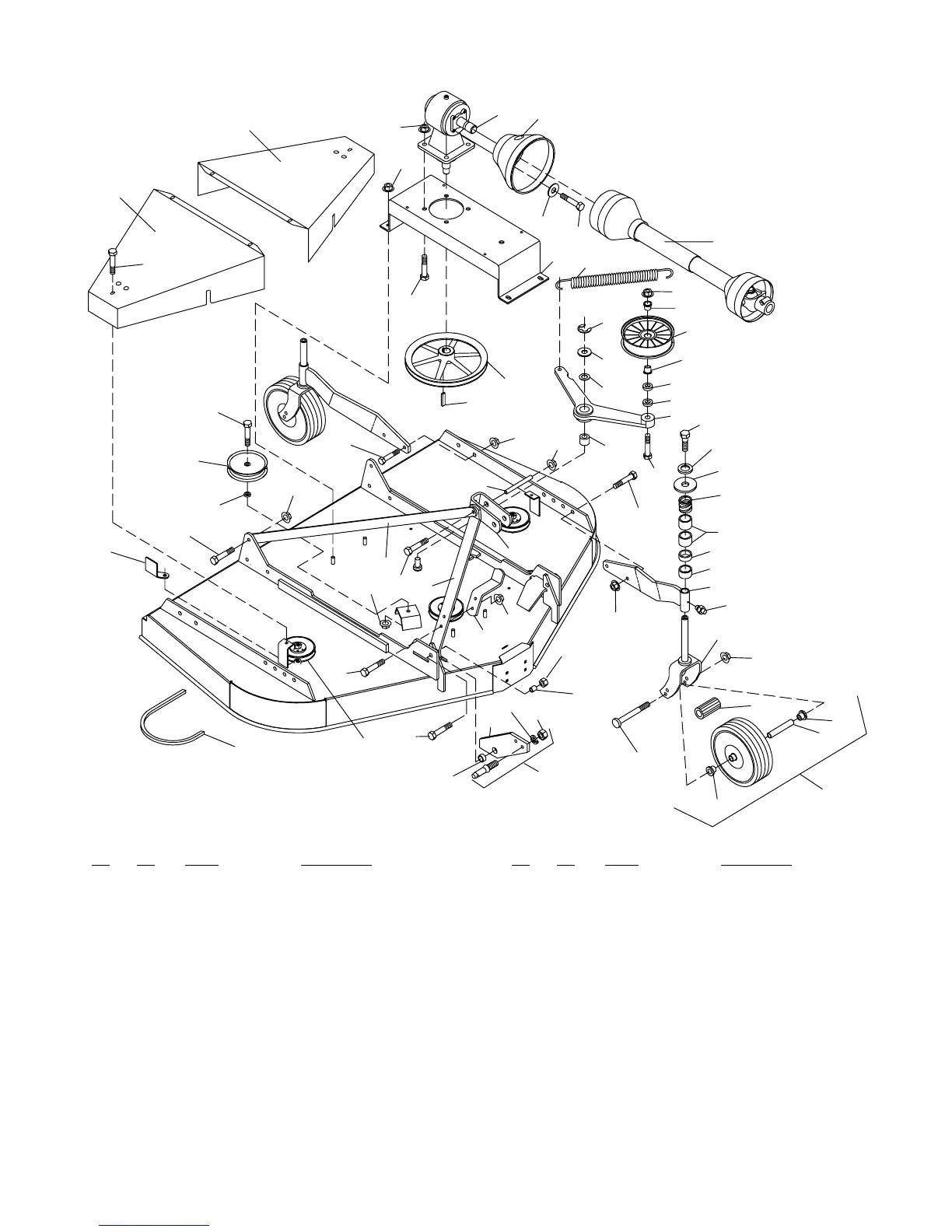

RD6000, RD7200 & RD8400 MAIN FRAME ASSEMBLY
27 -- COMPLETE DECAL SET
28 -- FRENCH SAFETY DECAL SET
29 -- ENGLISH SAFETY DECAL SE
T
59
63
52
46
58
9
17B
7
51
49
44
17A
12
51
56
59
21
22
42
43
63
19
18
10
54
56
13
15
56
16
11
51
14
64
61
59
55
6
57
6
5
56
4
56
41
3
70
69
71
56
56
51
53
65
23
2
47
45
50
20
24
60
66
40
26
48
58
25
56
CD4986A
30
8
62
68
67
Ref Part No
No
No Used Description
1 ---------- 1 Main frame (not sold separately)
2 67407 4 Compression spring 1.40 x .19 x
2.1, 257
3 53562 2 Caster arm assembly -- Right
RD6000 & RD7200 (see Figure 5,
page 11, for identification) -- o r --
3 53563 2 Caster arm assembly -- Left
RD6000 & RD7200 (see Figure 5,
page 11, for identification) -- o r --
3 52883 4 Caster arm assembly -- RD8400
4 67318 4 RD6000 & RD7200 Caster shaft
and yoke assembly (for solid tire
only) -- o r --
4 19747 4 RD6000 & RD7200 Caster shaft
and yoke assembly (for pneumatic
tire only) -- o r --
Ref Part No
No
No Used Description
4 52860 4 RD8400 Caster shaft and yoke
assembly (for solid tire only) -- o r --
4 52859 4 RD8400 Caster shaft and yoke
assembly (for pneumatic tire only)
5 34466 4 Roller bearing .75 x 1.38 x 1.5 (for
heavy-duty wheel) -- o r --
5 19756 4 Roller bearing .75 x 1.38 x 2.5 (for
pneumatic wheel)
6 65577 8 3/4 x 1.415 Flanged wheel bearing
with groove
7 18989 4 10” Heavy-duty wheel w/bearing &
sleeve (includes items 5, 6 & 57)
-- o r -- -- o r --
7 19754 4 10” Pneumatic wheel w/bearing &
sleeve (includes items 5, 6, 7a & 57)
7a 57772 4 Tube -- 410/350 x 4 (not shown)
(Rev. 9/1/99)
