50 Parts
MAN0506 (Rev. 9/5/2008)

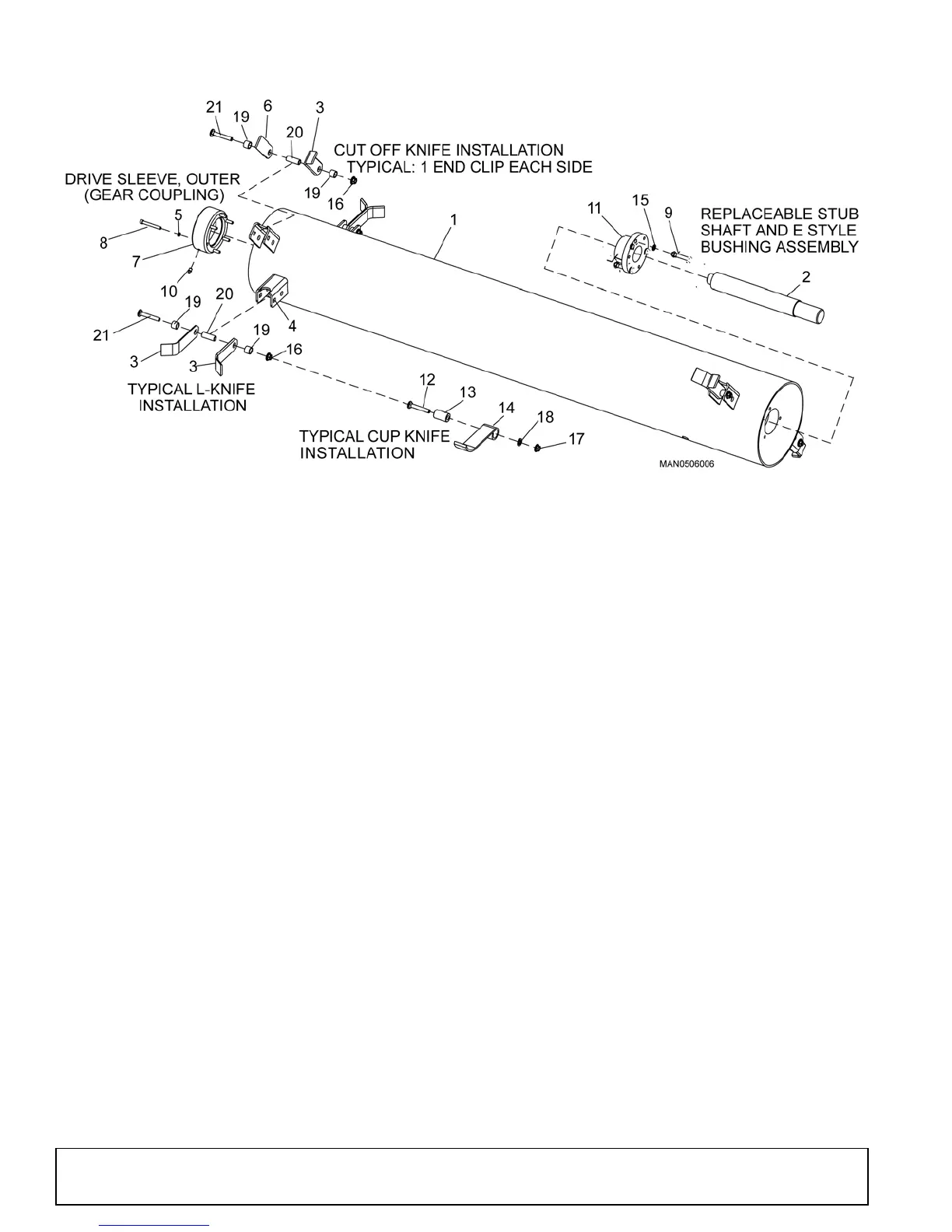

FLAIL TUBE ASSEMBLY
REF
LEFT
PART #
RIGHT
PART #
QTY DESCRIPTION
1 1016199LK 1016198LK 1 15’ Flail tube w/knives
1 1016199HD 1016198HD 1 15’ HD Cotton tube
w/knives
1 1016199CP 1016198CP 1 15’ Cup knife tube
w/knives
1 1013109LK 1013108LK 1 20’ Flail tube w/knives
1 1013109HD 1013108HD 1 20’ HD Cotton tube
w/knives
1 1013109CP 1013108CP 1 20’ Cup knife tube
w/knives
1 1016179LK 1016178LK 1 22’ Flail tube w/knives
1 1016179HD 1016178HD 1 22’ HD Cotton tube
w/knives
1 1016179CP 1016178CP 1 22’ Cup knife tube
w/knives
1 1012169LK 1012168LK 1 25’ Flail tube w/knives
1 1012169HD 1012168HD 1 25’ HD Cotton tube
w/knives
1 1012169CP 1012168CP 1 25’ Cup knife tube
w/knives
1 1013119LK 1013118LK 1 27’ Flail tube w/knives
1 1013119HD 1013118HD 1 27’ HD Cotton tube
w/knives
1 1013119CP 1013118CP 1 27’ Cup knife tube
w/knives
REF PART QTY DESCRIPTION
2 1012163 2 Stub shaft, 2-3/16"
3 50531067 AR L-Knife, long 8-1/2", (6 mm)
3 1019788 AR L-Knife, HD cotton
(Durafaced) (8 mm)
4 50531048 AR Weld-on clip
5 50030779 12 3/8 High collar lock washer
6 1010056 AR L- Knife, cut off
6 1019789 AR L- Knife, cut off
7 50030345 2 Drive hub sleeve, outer
8 1013092 12 3/8 NC x 2-1/2 SHCS
9 90002526 6 1/2 NC x 2-3/4 Tap bolt, full thread
10 90515001 * 2 1/8 NPT Straight grease fitting
11 1012164 2 2-7/16 Hub, E-style
12 90001357 * AR 5/8 NC x 3-1/2 Hex bolt GR5
13 50530405 AR Hardened wear bushing
14 1022607 AR Steel cup flail 8-1/2" (Standard)
14 1022606 AR Steel cup flail 7-1/2"
14 1022605 AR Steel cup flail short 6-3/16"
15 90011013 * AR 1/2 Lock washer
16 11900 * AR 1/2 NC Flange lock nut
17 90006508 AR 5/8 NC Top lock nut
18 90011015 * AR 5/8 Lock washer
19 1010061 AR Spacer, steel (for 6 mm L-knife)
19 1012184 AR Spacer, steel (for 8 mm L-knife)
20 1010062 AR Bushing, L-knife
21 90001758 * AR 1/2 NC x 3-1/4 Carriage bolt
SHCS Socket Head Cap Screw
NS Not Shown
AR As Required
* Standard hardware, obtain locally
(Rev. 5/17/2012)
