Parts
51
MAN0506 (Rev. 9/7/2011)

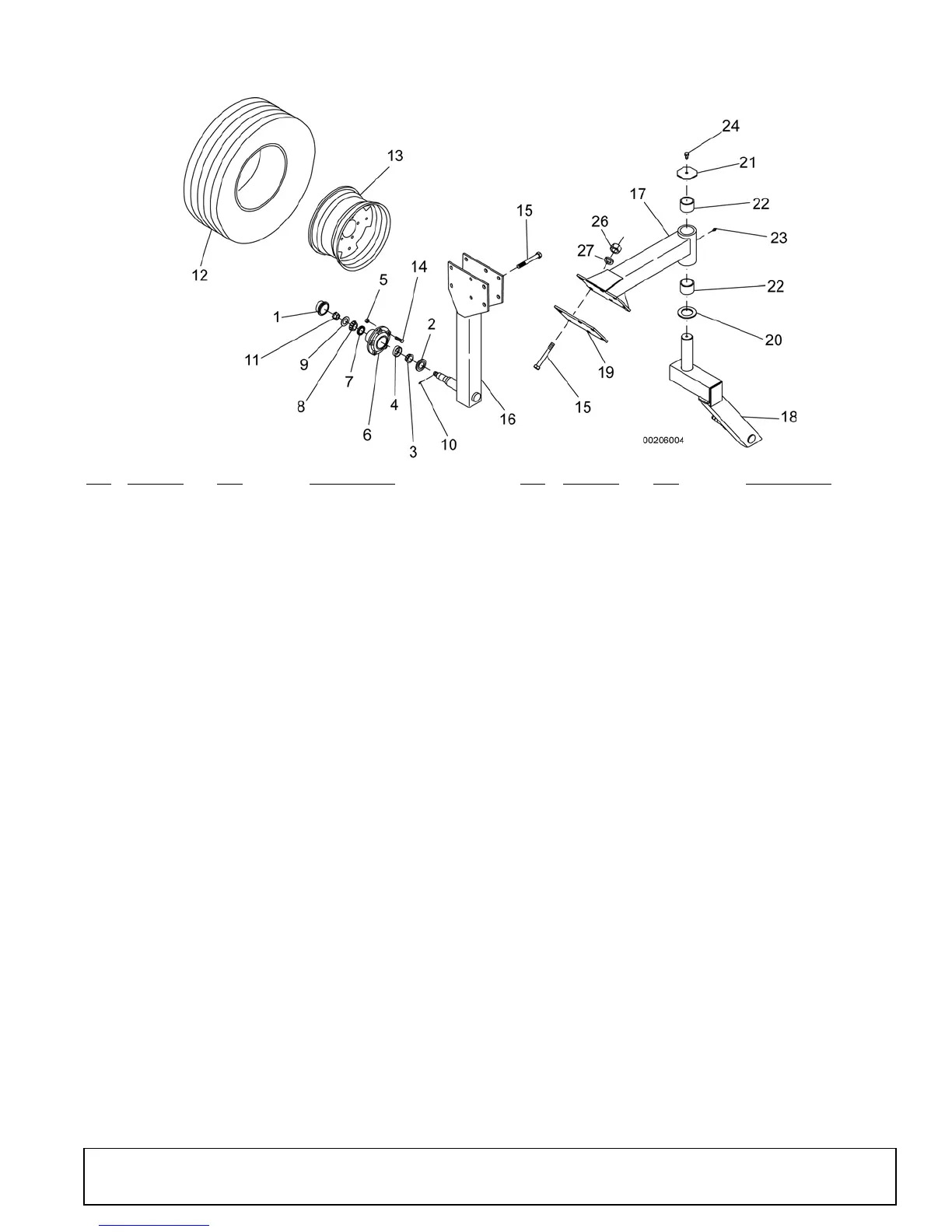

WHEEL ASSEMBLY
REF PART NO QTY DESCRIPTION
1 90509009 1 Dust cap
2 90109002 1 Seal
3 90101023 1 Inner bearing cone
4 90101022 1 Inner cup
5 90509011 5 1/2 NF Wheel nut
6 90509003 1 Hub, 5-bolt
7 90101016 1 Outer bearing cup
8 90101015 1 Outer bearing cone
9 90509067 1 7/8 Washer
10 90023043 * 1 3/16 x 1-1/2 Cotter pin
11 90006060 1 7/8 NF Slotted nut
12 90509070 1 Tire, 9.5L x 15
13 90509078 1 Wheel rim (15" x 6 - 5 bolt)
14 90509117 5 1/2 NF x 1-7/8 Stud bolt
15 2377 6 3/4 NC x 6 Hex bolt GR5
(Qty: 8 for 1010013 & 1010014)
REF PART NO QTY DESCRIPTION
16 50520111 1 Strut weldment
16 50520112 1 Strut assembly with hubs
17 1010013 1 Caster arm assembly (8 holes)
18 50520197 1 Caster weldment
18 50520198 1 Caster and hub assembly
19 1010014 1 Back plate (8 holes)
20 20031233 1 Oilite washer
21 20031219 1 Plate, retainer
22 20031766 2 Caster pivot bearing
23 90515024 * 1 1/4 - 28 UNF Straight grease fit-
ting
24 90001221 * 1 1/2 NC x 1 Hex bolt GR5
26 90006015 8 3/4 NC Hex nut
27 90011017 8 3/4 Lock washer
* Standard hardware, obtain
locally
