54 Parts
MAN0506 (Rev. 9/5/2008)
WEASLER
®

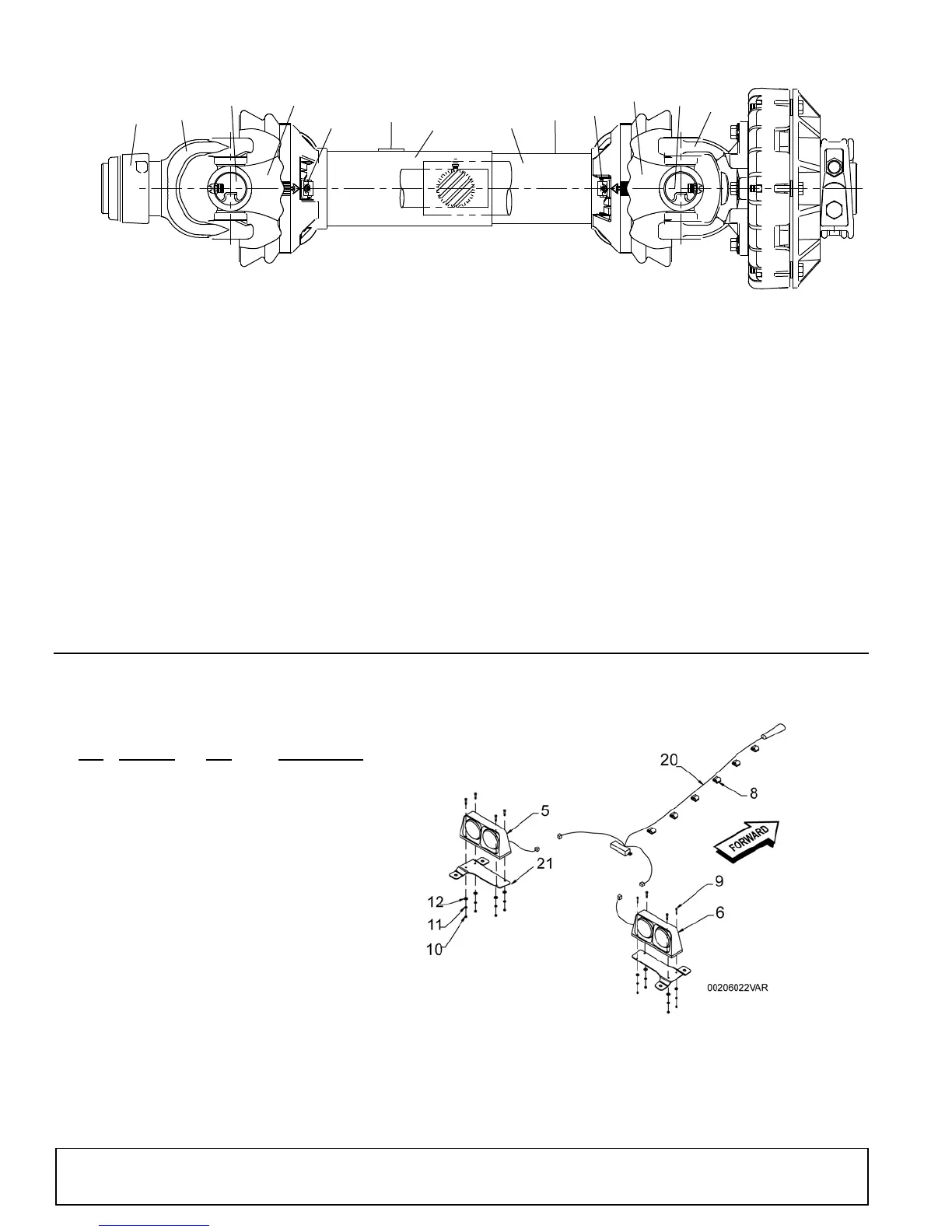

24K 2-POINT & 3-POINT PTO SHAFT WITH TORQMASTER CLUTCH
DUAL SAFETY LIGHT KIT (OPTIONAL)
CD6523
1
2
3
4
5
6
7
8
9
5
10
3
11
REF PART QTY DESCRIPTION
1 19851 1 Slide lock repair kit 1.38 ID -or-
1 19837 1 Slide lock repair kit 1.75 ID
2 90317208 1 Slide yoke assembly 1.38 ID -or-
2 90317418 1 Slide yoke assembly 1.75 ID
3 1016113 2 U-Joint cross & bearing kit
4 90318183 1 Yoke & shaft 26.8 center-end -or-
4 90318074 1 Yoke & shaft, 32.9 center-end
5 19846 1 Shield bearing repair kit
6 18864 1 Safety sign
7 1010803 1 Outer guard & bearing (1016117,
1016111) -or-
7 1010813 1 Outer guard & bearing (1016122,
1016124)
8 1010804 1 Inner guard & bearing
9 33347 1 Safety sign, Danger, Guard missing
REF PART QTY DESCRIPTION
10 90317724 1 Yoke, tube & slip sleeve
11 1010805 1 Friction overrunning clutch asy. 55
clamp (24K)
A 1016104 1 PTO Shaft complete 1-3/8 -21 CD Std
A 1016105 1 PTO Shaft complete 1-3/4 -20 CD Std
B 1016106 1 PTO Shaft complete 1-3/8 -21 CD
long
B 1016107 1 PTO Shaft complete 1-3/4 -20 CD
long
C 1016117 1 Tractor half asy w/guard 1-3/4 Std
C 1016111 1 Tractor half asy w/guard 1-3/8 Std
D 1016122 1 Tractor half asy w/guard 1-3/8 long
D 1016124 1 Tractor half asy w/guard 1-3/4 long
E 1016112 1 Implement half asy w/guard 24K
REF PART NO QTY DESCRIPTION
5 90401149 1 Dual lamp, 4-pin LH
6 90401150 1 Dual lamp, 4-pin RH
8 90507121 12 Clamp, adhesive-backed
9 90001009 * 10 1/4 NC x 1 Hex bolt GR5
10 90006001 * 10 1/4 NC Hex nut
11 90011009 * 10 1/4 Lock washer
12 90011031 * 10 1/4 Flat washer
20 90401152 1 Wiring harness, wishbone
26’
21 50530986 2 Bracket, dual safety light
* Standard hardware, obtain
locally
